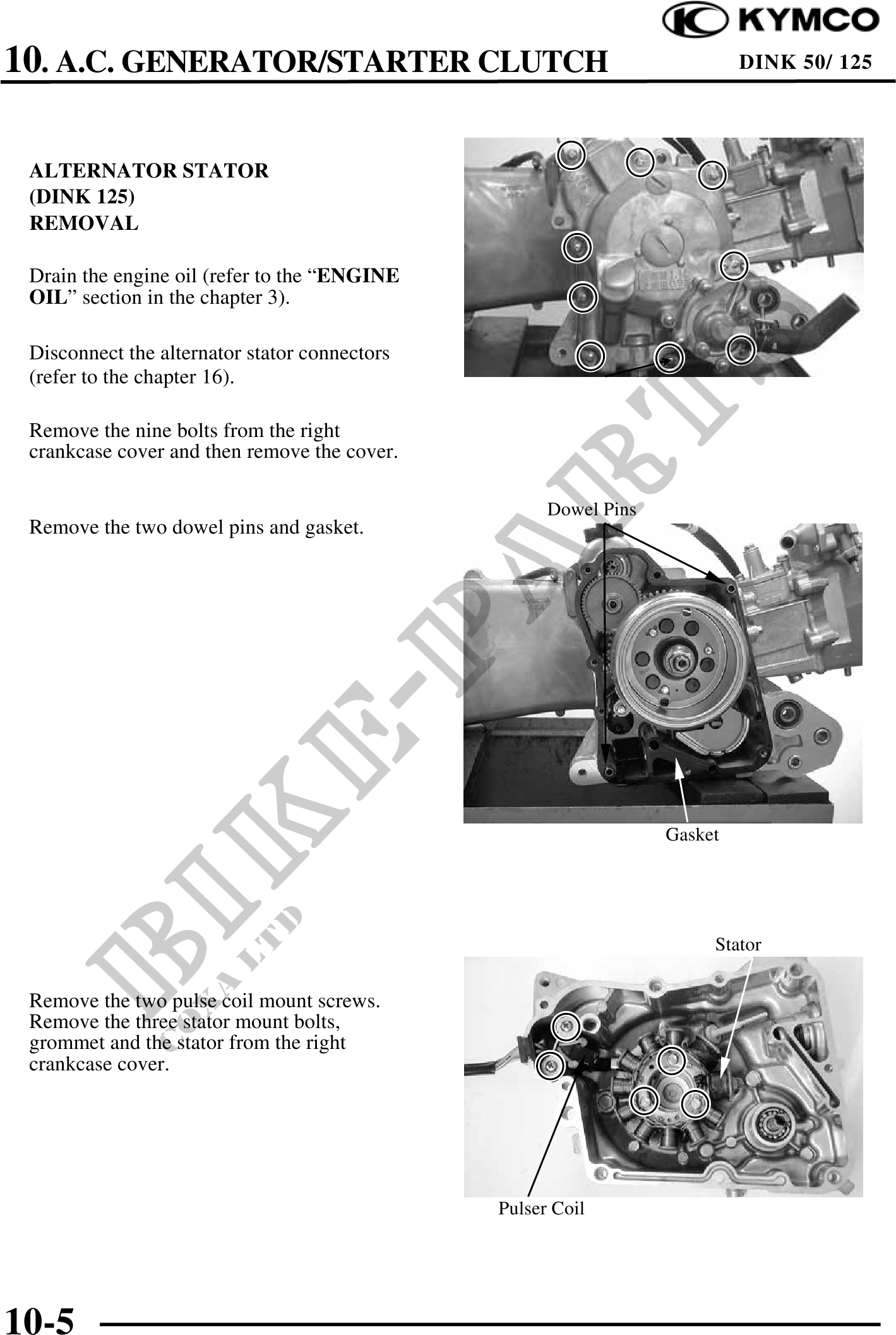

10. A.C. GENERATOR/STARTER CLUTCH DINK 50/ 125
ALTERNATOR STATOR
(DINK 125)
REMOVAL
Drain the engine oil (refer to the "ENGINE
OIL" section in the chapter 3).
Disconnect the alternator stator connectors
(refer to the chapter 16).
Remove the nine bolts from the right
crankcase cover and then remove the cover.
Dowel Pins
Remove the two dowel pins and gasket.
Gasket
Stator
Remove the two pulse coil mount screws.
Remove the three stator mount bolts,
grommet and the stator from the right
crankcase cover.
Pulser Coil
10-5
