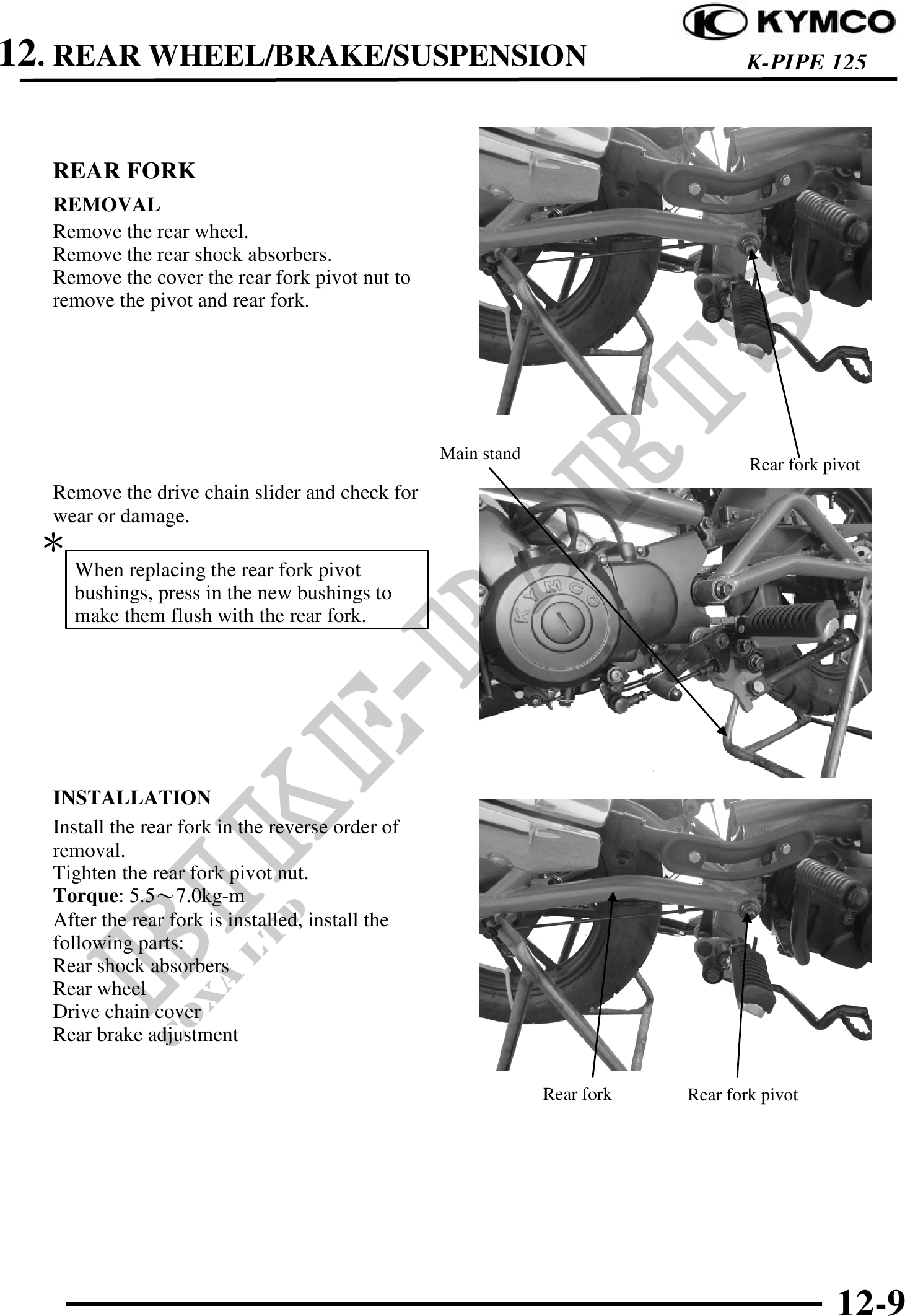

12. REAR WHEEL/BRAKE/SUSPENSION K-PIPE 125
REAR FORK
REMOVAL
Remove the rear wheel.
Remove the rear shock absorbers.
Remove the cover the rear fork pivot nut to
remove the pivot and rear fork.
Main stand
Rear fork pivot
Remove the drive chain slider and check for
wear or damage.
When replacing the rear fork pivot
bushings, press in the new bushings to
make them flush with the rear fork.
INSTALLATION
Install the rear fork in the reverse order of
removal.
Tighten the rear fork pivot nut.
Torque: 5.57.0kg-m
After the rear fork is installed, install the
following parts:
Rear shock absorbers
Rear wheel
Drive chain cover
Rear brake adjustment
Rear fork Rear fork pivot
12-9
