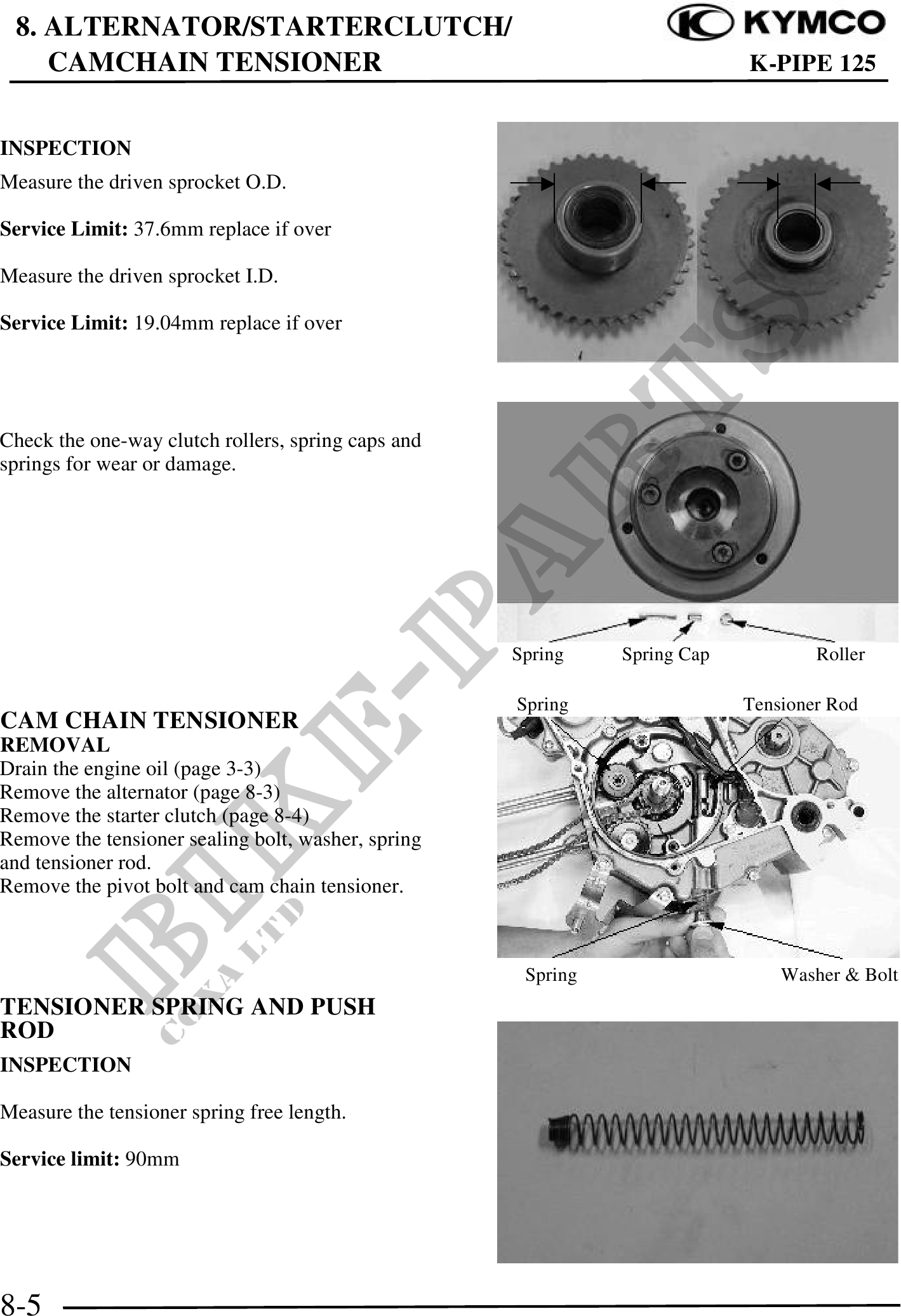

8. ALTERNATOR/STARTERCLUTCH/
CAMCHAIN TENSIONER K-PIPE 125
INSPECTION
Measure the driven sprocket O.D.
Service Limit: 37.6mm replace if over
Measure the driven sprocket I.D.
Service Limit: 19.04mm replace if over
Check the one-way clutch rollers, spring caps and
springs for wear or damage.
Spring Spring Cap Roller
Spring Tensioner Rod
CAM CHAIN TENSIONER
REMOVAL
Drain the engine oil (page 3-3)
Remove the alternator (page 8-3)
Remove the starter clutch (page 8-4)
Remove the tensioner sealing bolt, washer, spring
and tensioner rod.
Remove the pivot bolt and cam chain tensioner.
Spring Washer & Bolt
TENSIONER SPRING AND PUSH
ROD
INSPECTION
Measure the tensioner spring free length.
Service limit: 90mm
8-5
