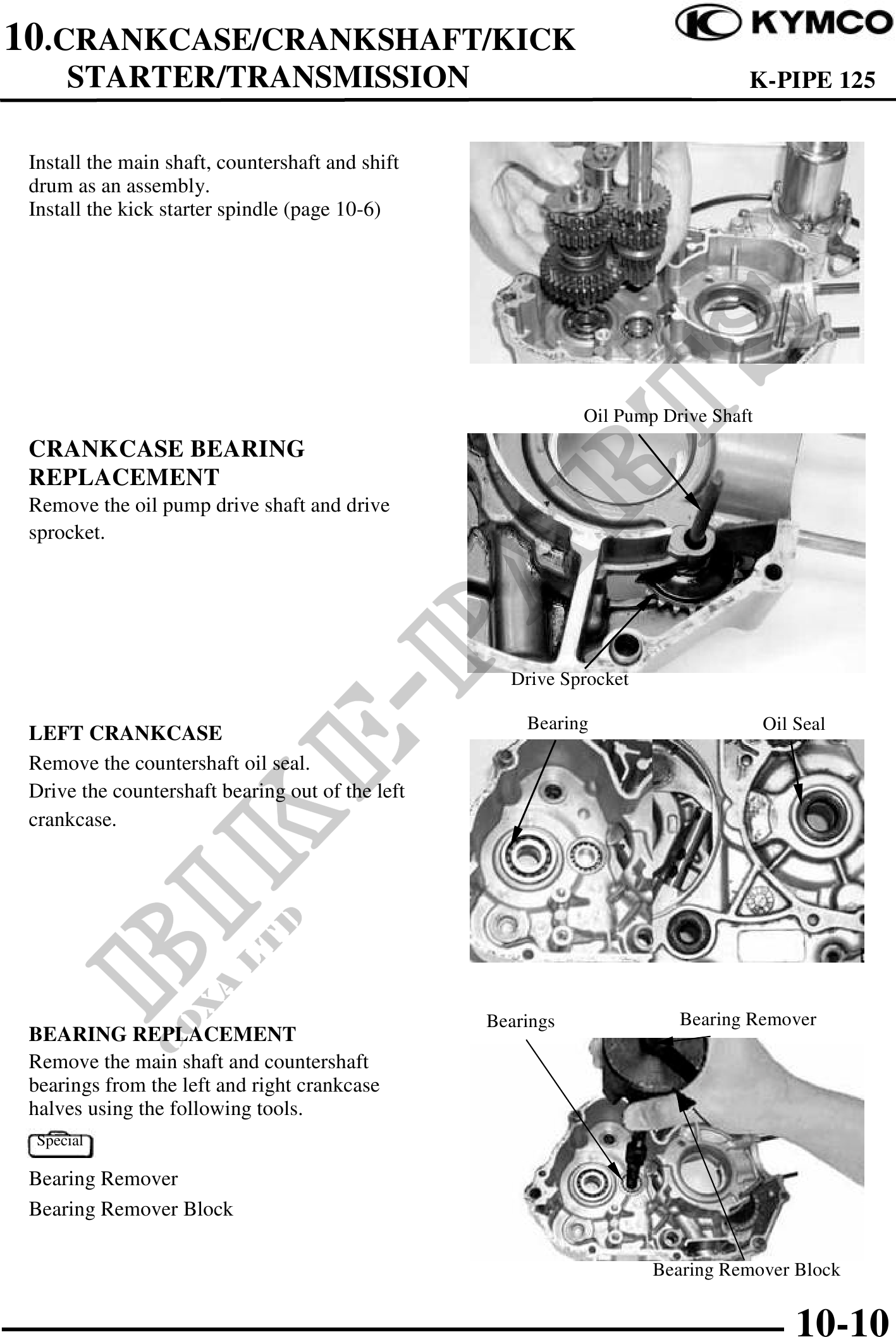

10.CRANKCASE/CRANKSHAFT/KICK
STARTER/TRANSMISSION K-PIPE 125
Install the main shaft, countershaft and shift
drum as an assembly.
Install the kick starter spindle (page 10-6)
Oil Pump Drive Shaft
CRANKCASE BEARING
REPLACEMENT
Remove the oil pump drive shaft and drive
sprocket.
Drive Sprocket
Bearing Oil Seal
LEFT CRANKCASE
Remove the countershaft oil seal.
Drive the countershaft bearing out of the left
crankcase.
Bearings Bearing Remover
BEARING REPLACEMENT
Remove the main shaft and countershaft
bearings from the left and right crankcase
halves using the following tools.
Special
Bearing Remover
Bearing Remover Block
Bearing Remover Block
10-10
