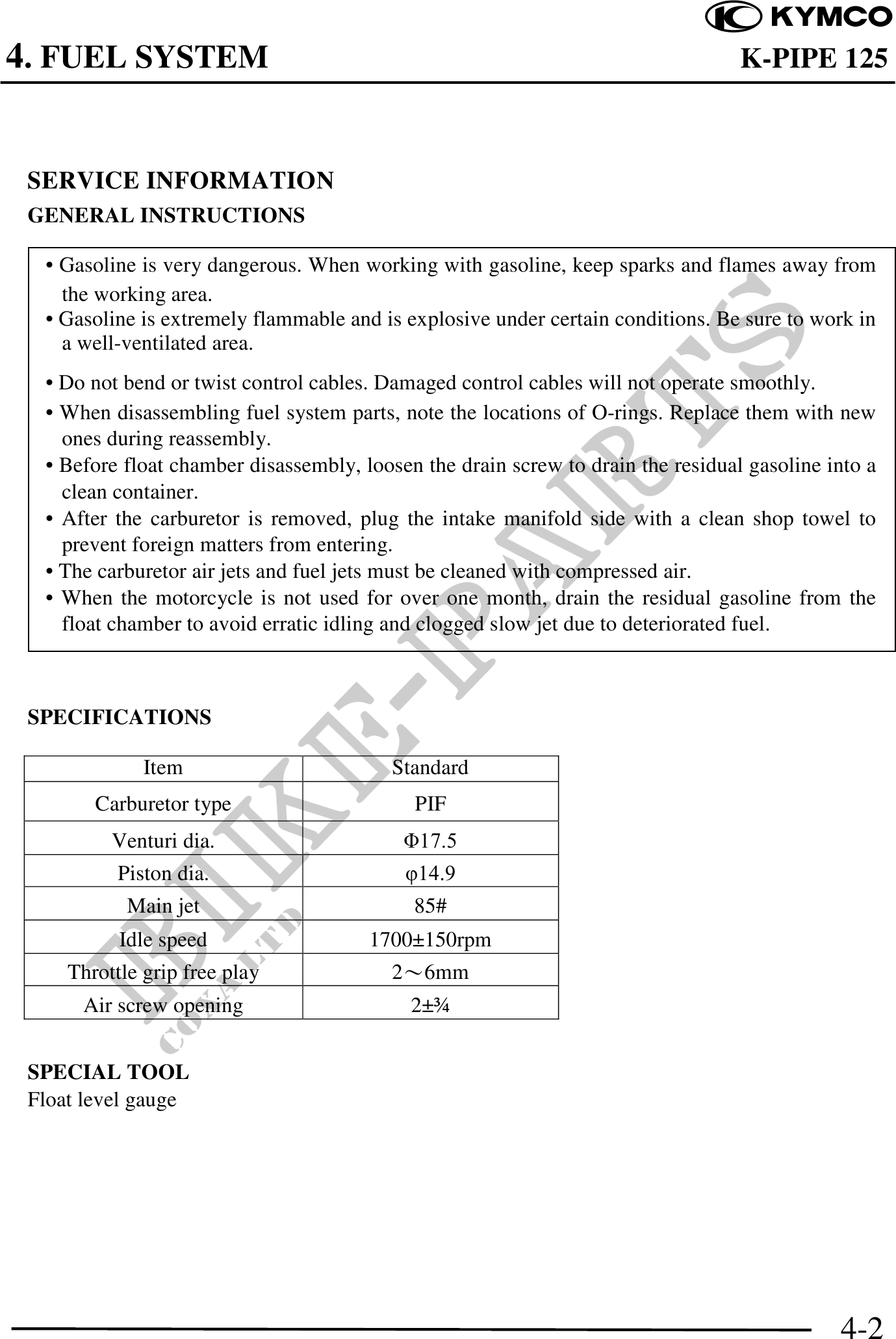

4. FUEL SYSTEM K-PIPE 125
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Gasoline is very dangerous. When working with gasoline, keep sparks and flames away from
the working area.
· Gasoline is extremely flammable and is explosive under certain conditions. Be sure to work in
a well-ventilated area.
· Do not bend or twist control cables. Damaged control cables will not operate smoothly.
· When disassembling fuel system parts, note the locations of O-rings. Replace them with new
ones during reassembly.
· Before float chamber disassembly, loosen the drain screw to drain the residual gasoline into a
clean container.
· After the carburetor is removed, plug the intake manifold side with a clean shop towel to
prevent foreign matters from entering.
· The carburetor air jets and fuel jets must be cleaned with compressed air.
· When the motorcycle is not used for over one month, drain the residual gasoline from the
float chamber to avoid erratic idling and clogged slow jet due to deteriorated fuel.
SPECIFICATIONS
Item Standard
Carburetor type PIF
Venturi dia. 17.5
Piston dia. 14.9
Main jet 85#
Idle speed 1700150rpm
Throttle grip free play 26mm
Air screw opening 2
SPECIAL TOOL
Float level gauge
4-2
