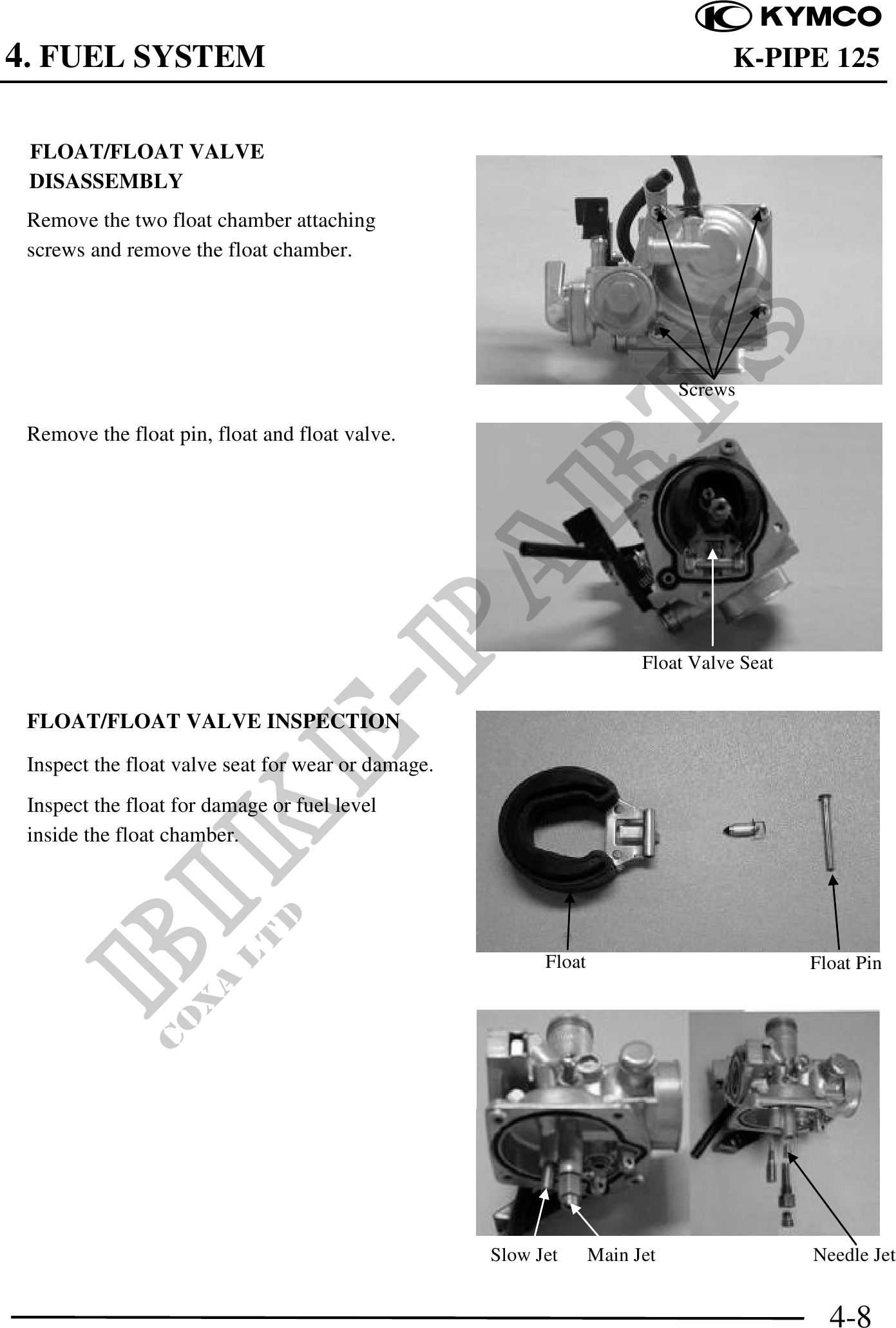

4. FUEL SYSTEM K-PIPE 125
FLOAT/FLOAT VALVE
DISASSEMBLY
Remove the two float chamber attaching
screws and remove the float chamber.
Screws
Remove the float pin, float and float valve.
Float Valve Seat
FLOAT/FLOAT VALVE INSPECTION
Inspect the float valve seat for wear or damage.
Inspect the float for damage or fuel level
inside the float chamber.
Float Float Pin
Slow Jet Main Jet Needle Jet
4-8
