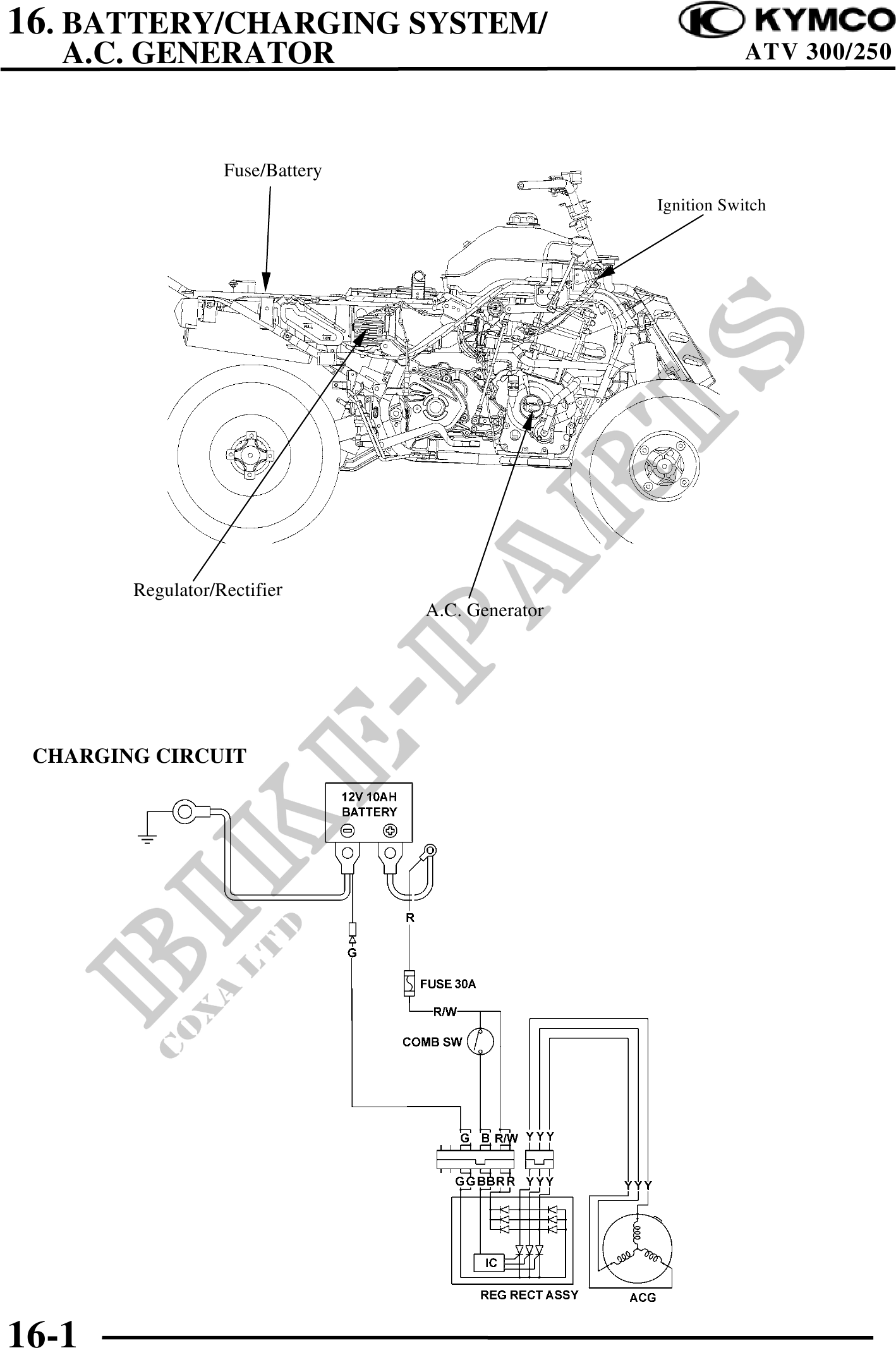

          16. BATTERY/CHARGING SYSTEM/
   A.C. GENERATOR                                              ATV 300/250



                   Fuse/Battery
                                                   Ignition Switch




        Regulator/Rectifier
                                  A.C. Generator




 CHARGING CIRCUIT
