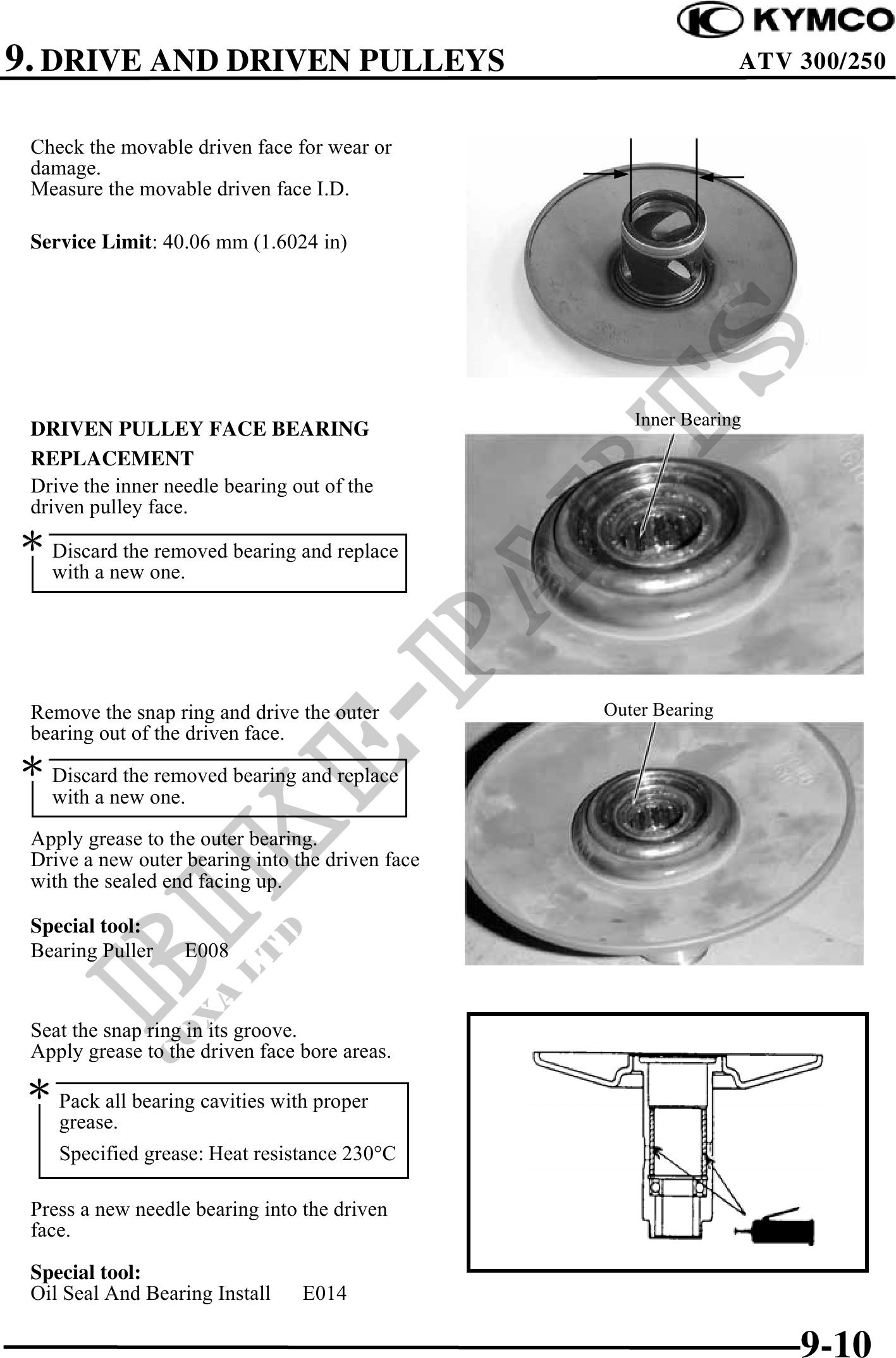

9. DRIVE AND DRIVEN PULLEYS ATV 300/250
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit: 40.06 mm (1.6024 in)
Inner Bearing
DRIVEN PULLEY FACE BEARING
REPLACEMENT
Drive the inner needle bearing out of the
driven pulley face.
Discard the removed bearing and replace
with a new one.
Remove the snap ring and drive the outer Outer Bearing
bearing out of the driven face.
Discard the removed bearing and replace
with a new one.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven face
with the sealed end facing up.
Special tool:
Bearing Puller E008
Seat the snap ring in its groove.
Apply grease to the driven face bore areas.
Pack all bearing cavities with proper
grease.
Specified grease: Heat resistance 230°C
Press a new needle bearing into the driven
face.
Special tool:
Oil Seal And Bearing Install E014
9-10
