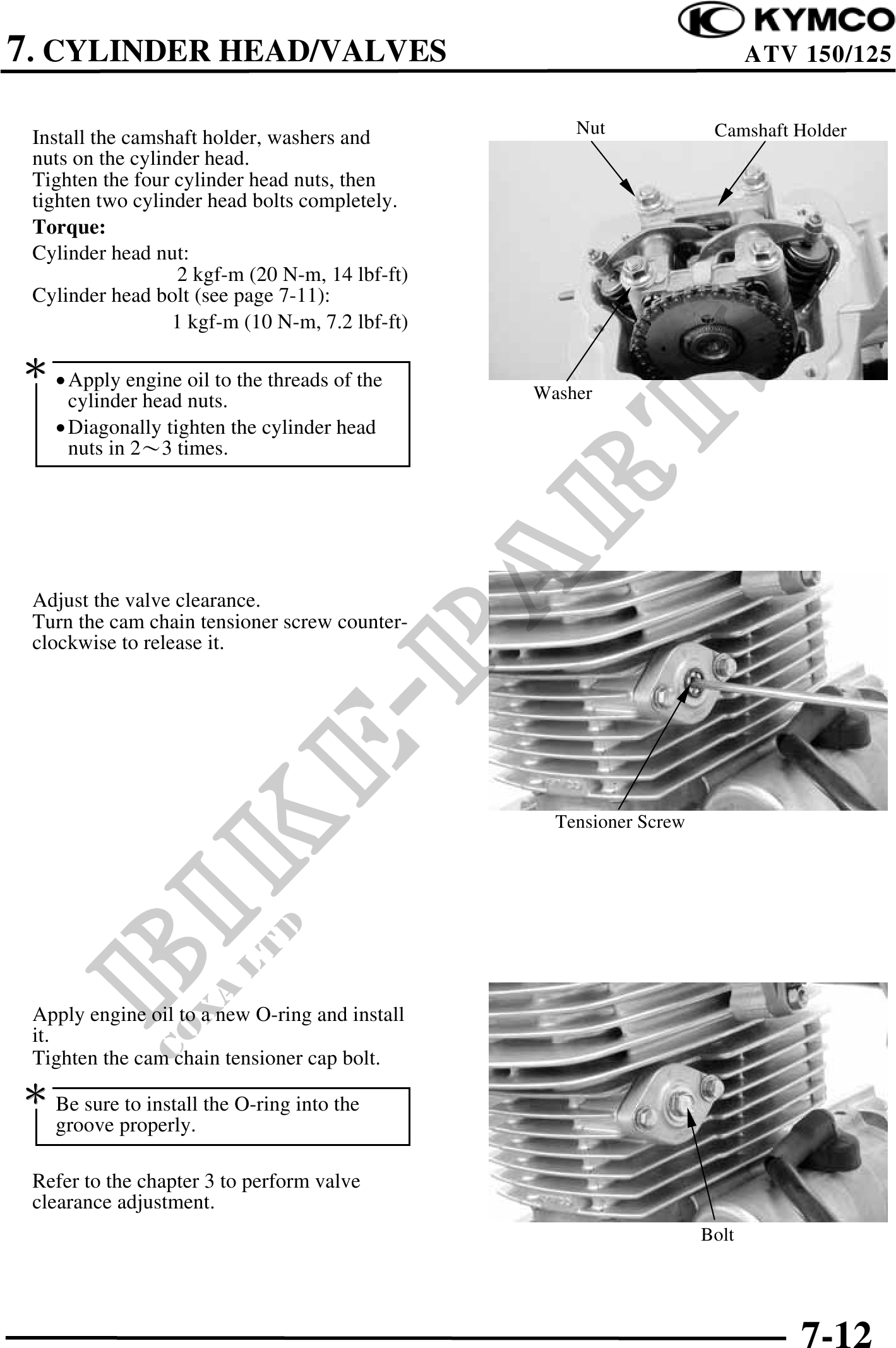

7. CYLINDER HEAD/VALVES ATV 150/125
Nut Camshaft Holder
Install the camshaft holder, washers and
nuts on the cylinder head.
Tighten the four cylinder head nuts, then
tighten two cylinder head bolts completely.
Torque:
Cylinder head nut:
2 kgf-m (20 N-m, 14 lbf-ft)
Cylinder head bolt (see page 7-11):
1 kgf-m (10 N-m, 7.2 lbf-ft)
· Apply engine oil to the threads of the
cylinder head nuts. Washer
· Diagonally tighten the cylinder head
nuts in 23 times.
Adjust the valve clearance.
Turn the cam chain tensioner screw counter-
clockwise to release it.
Tensioner Screw
Apply engine oil to a new O-ring and install
it.
Tighten the cam chain tensioner cap bolt.
Be sure to install the O-ring into the
groove properly.
Refer to the chapter 3 to perform valve
clearance adjustment.
Bolt
7-12
