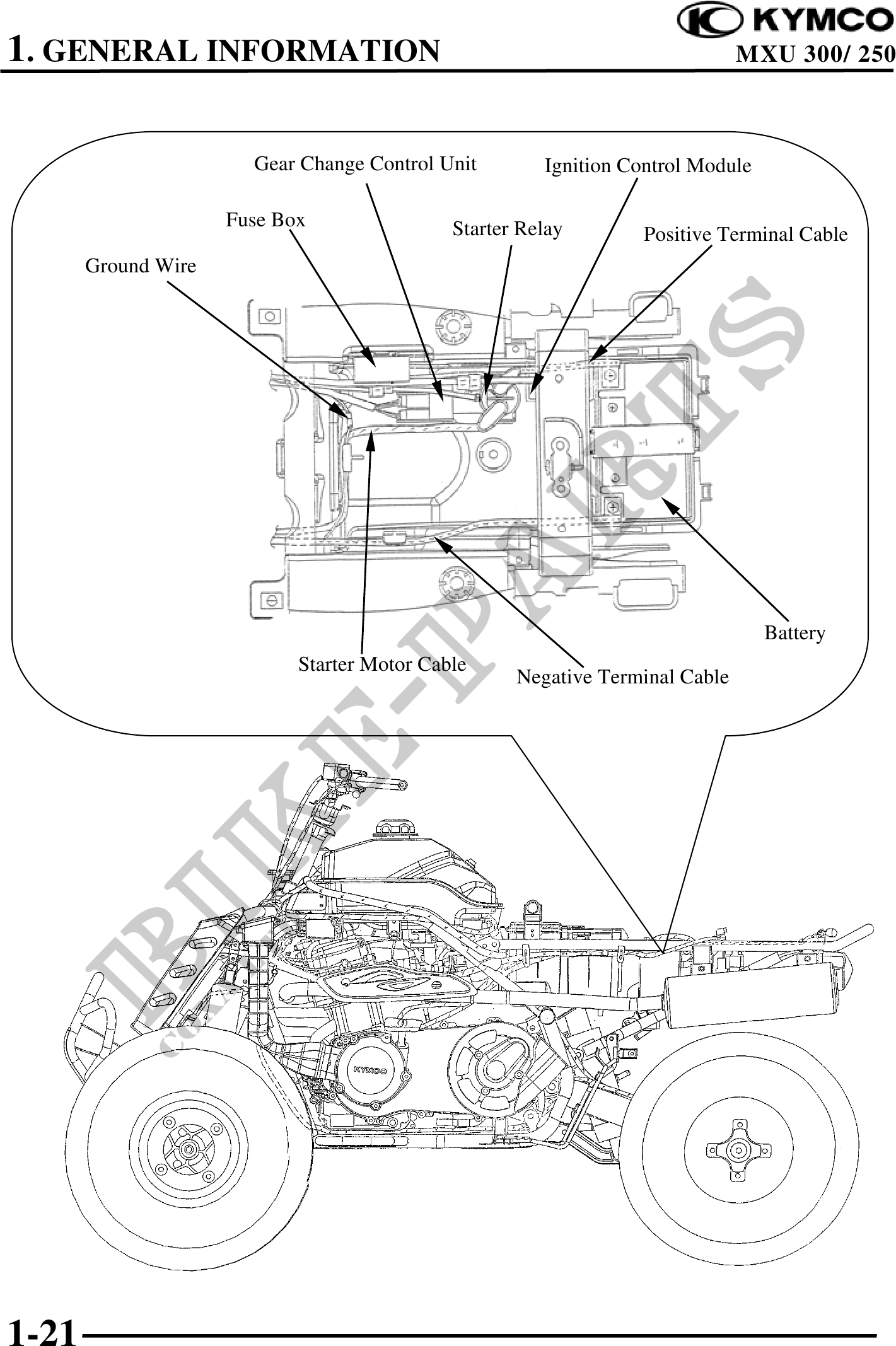

          1. GENERAL INFORMATION                                                        MXU 300/ 250



                       Gear Change Control Unit        Ignition Control Module

                     Fuse Box                Starter Relay        Positive Terminal Cable
       Ground Wire




                                                                                 Battery
                            Starter Motor Cable
                                                    Negative Terminal Cable




1-21
