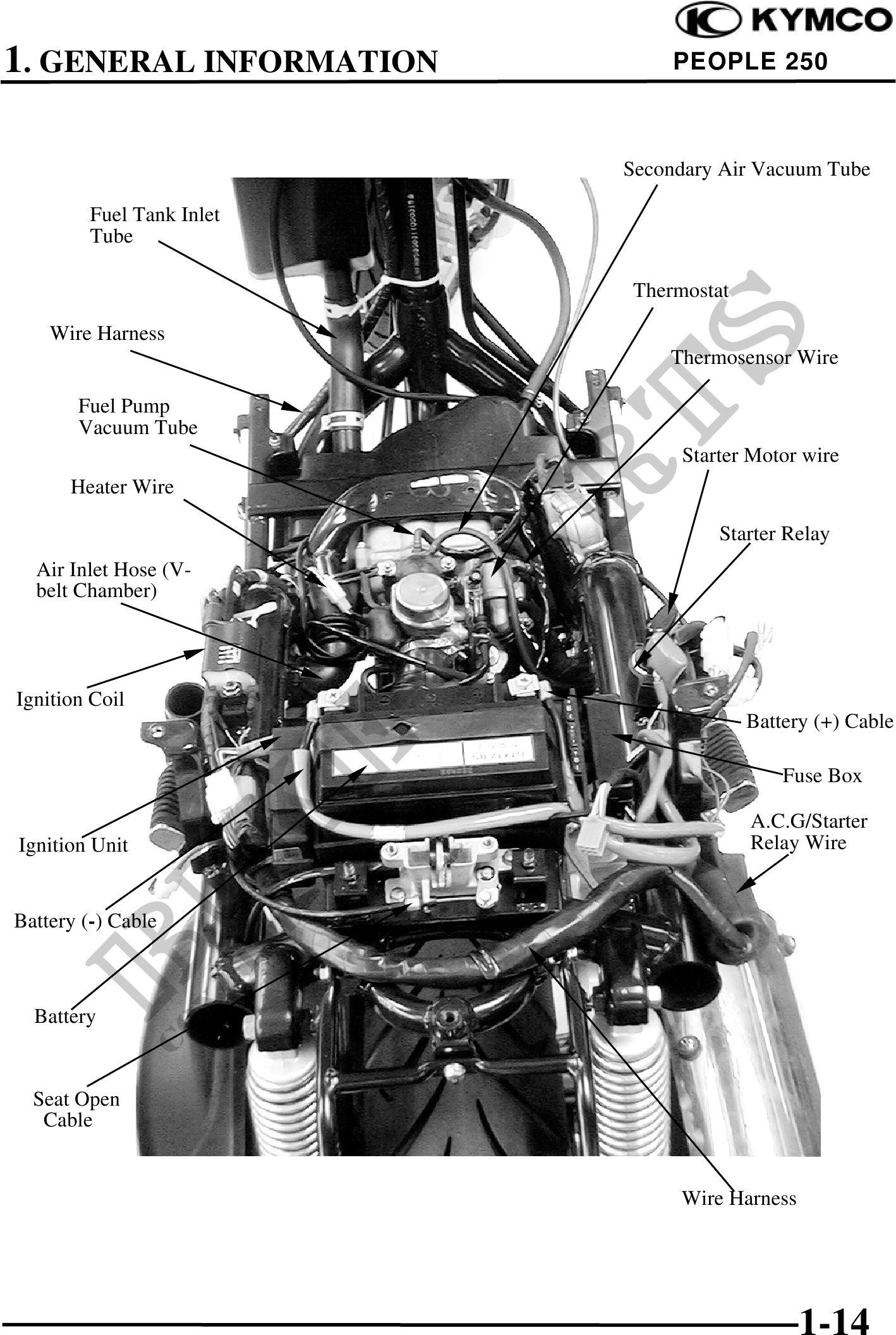

          1. GENERAL INFORMATION          PEOPLE 250



                           Secondary Air Vacuum Tube

         Fuel Tank Inlet
         Tube

                            Thermostat

    Wire Harness
                               Thermosensor Wire

       Fuel Pump
       Vacuum Tube
                                 Starter Motor wire
      Heater Wire

                                     Starter Relay
  Air Inlet Hose (V-
  belt Chamber)




Ignition Coil
                                         Battery (+) Cable

                                             Fuse Box

                                         A.C.G/Starter
Ignition Unit                            Relay Wire


Battery (-) Cable



  Battery


  Seat Open
   Cable


                                 Wire Harness




                                                1-14
