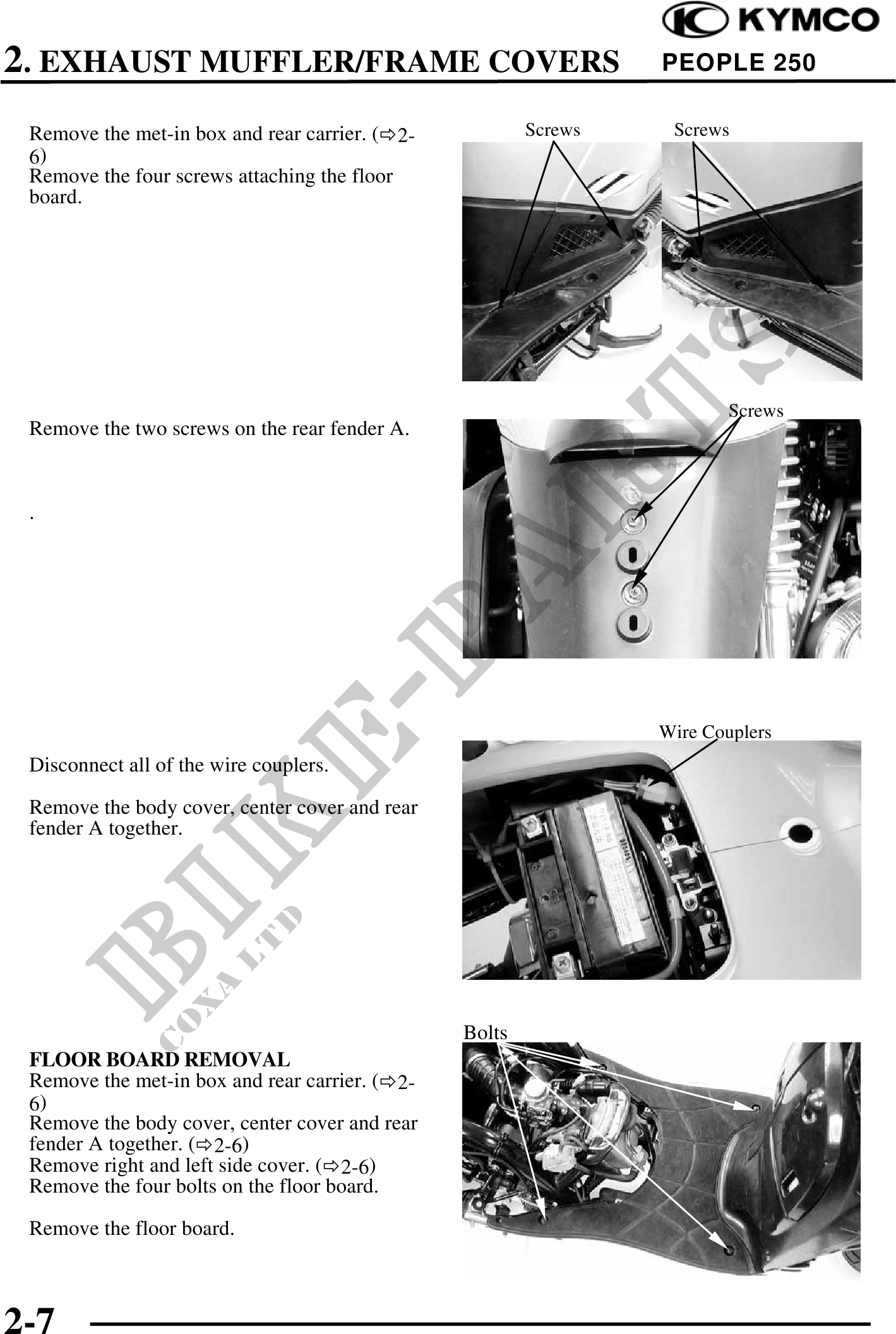

2. EXHAUST MUFFLER/FRAME COVERS PEOPLE 250
Remove the met-in box and rear carrier. ( 2- Screws Screws
6)
Remove the four screws attaching the floor
board.
Screws
Remove the two screws on the rear fender A.
.
Wire Couplers
Disconnect all of the wire couplers.
Remove the body cover, center cover and rear
fender A together.
Bolts
FLOOR BOARD REMOVAL
Remove the met-in box and rear carrier. ( 2-
6)
Remove the body cover, center cover and rear
fender A together. ( 2-6)
Remove right and left side cover. ( 2-6)
Remove the four bolts on the floor board.
Remove the floor board.
2-7
