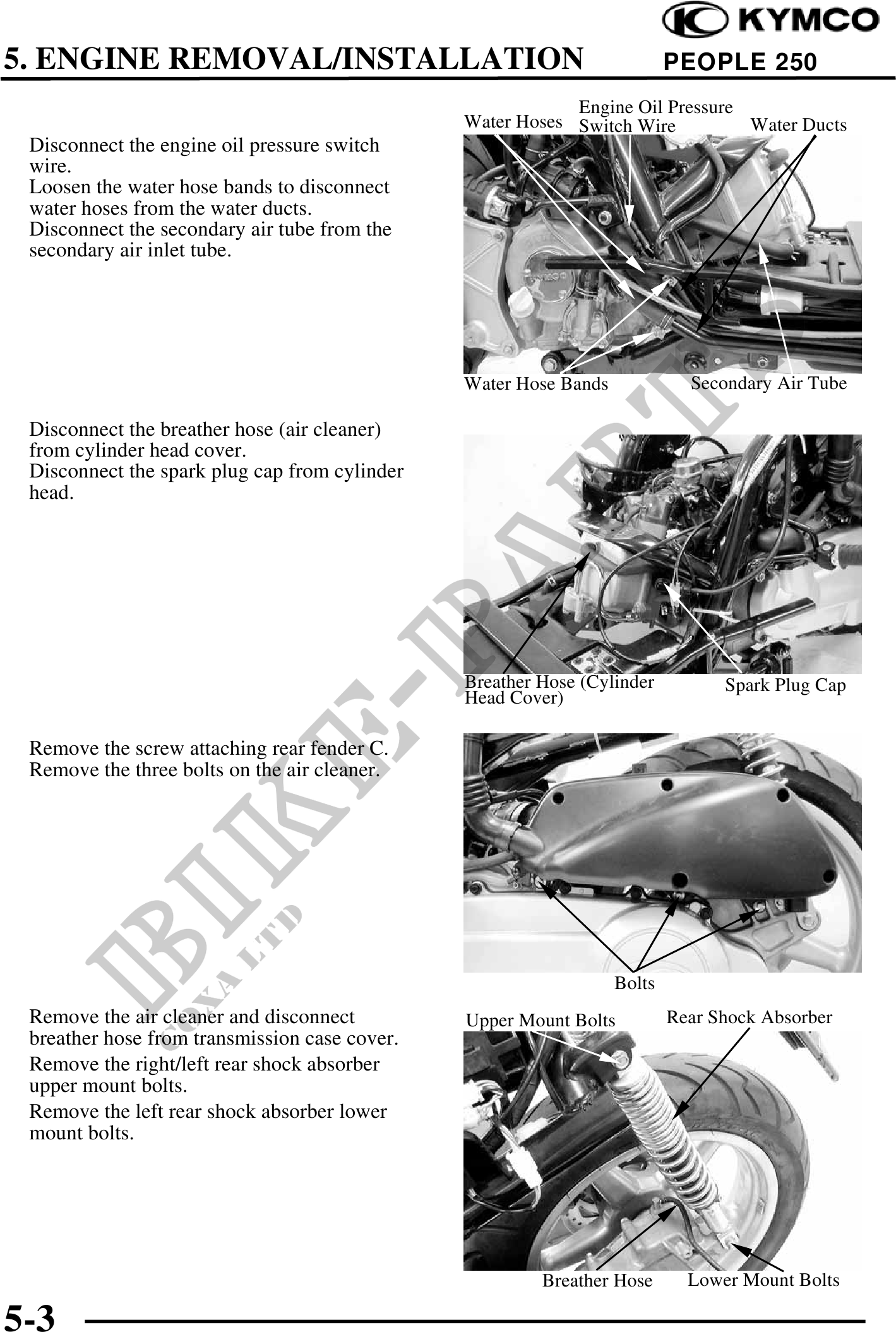

5. ENGINE REMOVAL/INSTALLATION PEOPLE 250
Engine Oil Pressure
Water Hoses Switch Wire Water Ducts
Disconnect the engine oil pressure switch
wire.
Loosen the water hose bands to disconnect
water hoses from the water ducts.
Disconnect the secondary air tube from the
secondary air inlet tube.
Water Hose Bands Secondary Air Tube
Disconnect the breather hose (air cleaner)
from cylinder head cover.
Disconnect the spark plug cap from cylinder
head.
Breather Hose (Cylinder Spark Plug Cap
Head Cover)
Remove the screw attaching rear fender C.
Remove the three bolts on the air cleaner.
Bolts
Remove the air cleaner and disconnect Upper Mount Bolts Rear Shock Absorber
breather hose from transmission case cover.
Remove the right/left rear shock absorber
upper mount bolts.
Remove the left rear shock absorber lower
mount bolts.
Breather Hose Lower Mount Bolts
5-3
