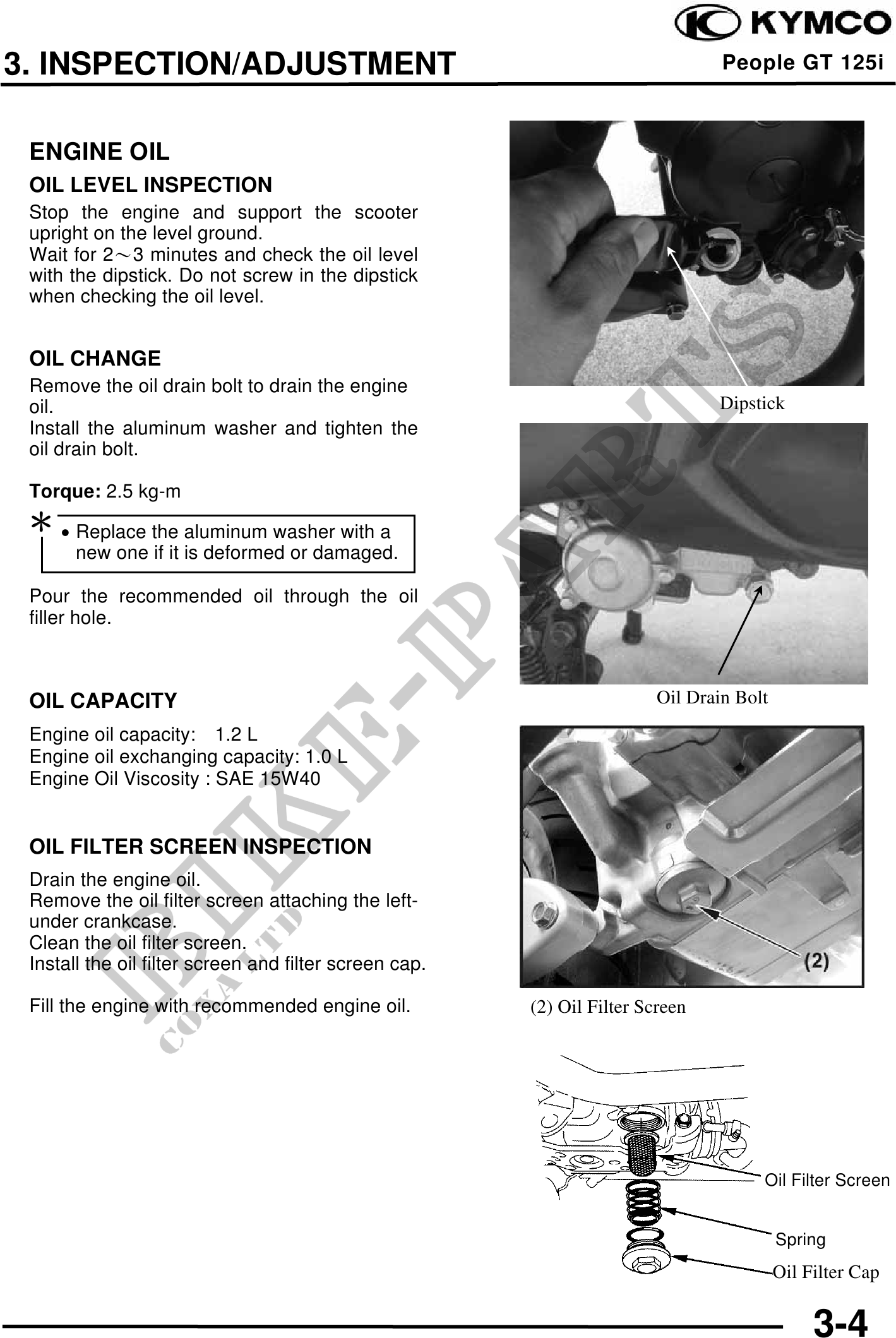

3. INSPECTION/ADJUSTMENT People GT 125i
ENGINE OIL
OIL LEVEL INSPECTION
Stop the engine and support the scooter
upright on the level ground.
Wait for 23 minutes and check the oil level
with the dipstick. Do not screw in the dipstick
when checking the oil level.
OIL CHANGE
Remove the oil drain bolt to drain the engine
oil. Dipstick
Install the aluminum washer and tighten the
oil drain bolt.
Torque: 2.5 kg-m
· Replace the aluminum washer with a
new one if it is deformed or damaged.
Pour the recommended oil through the oil
filler hole.
OIL CAPACITY Oil Drain Bolt
Engine oil capacity: 1.2 L
Engine oil exchanging capacity: 1.0 L
Engine Oil Viscosity : SAE 15W40
OIL FILTER SCREEN INSPECTION
Drain the engine oil.
Remove the oil filter screen attaching the left-
under crankcase.
Clean the oil filter screen.
Install the oil filter screen and filter screen cap.
Fill the engine with recommended engine oil. (2) Oil Filter Screen
Oil Filter Screen
Spring
Oil Filter Cap
3-4
