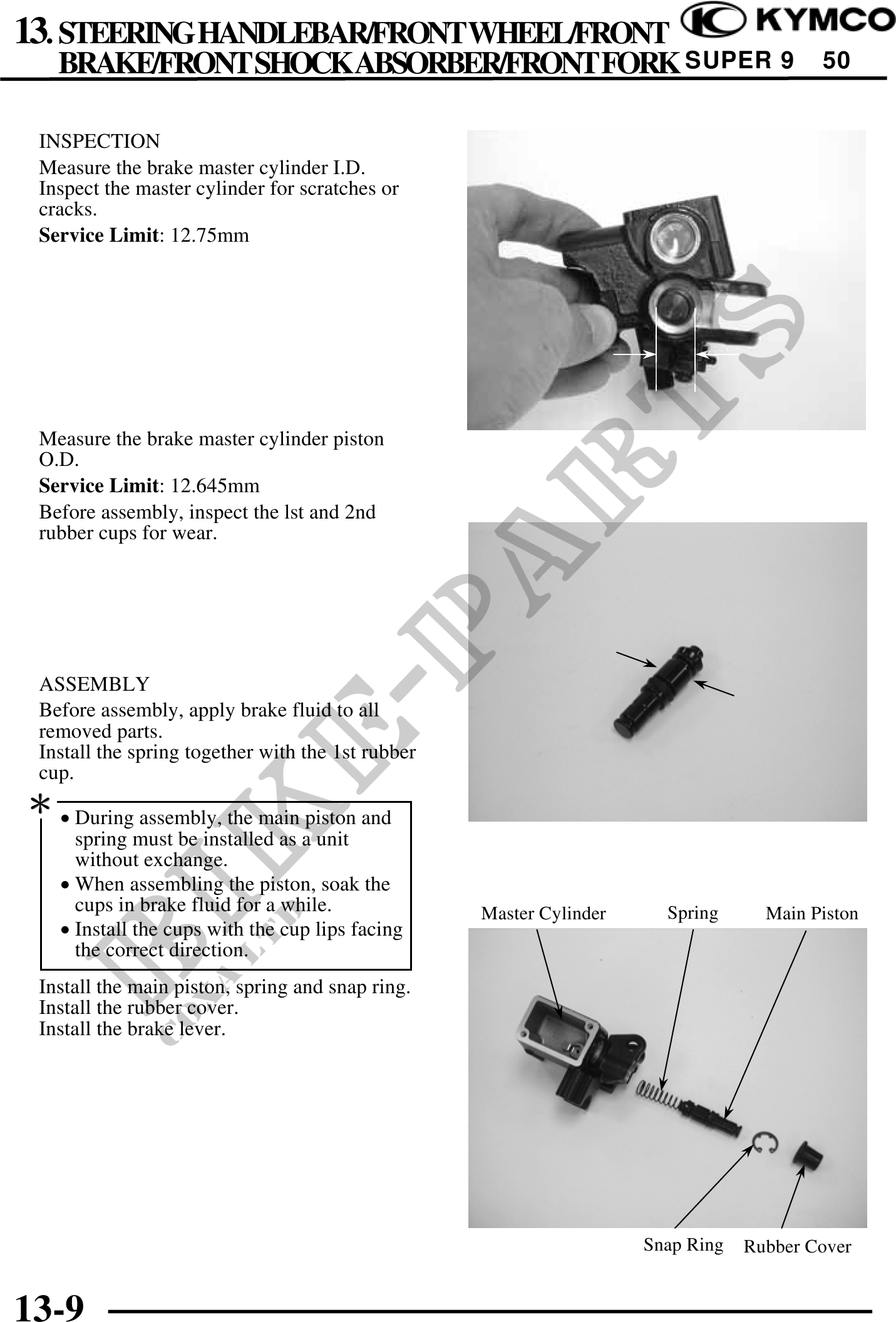

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
INSPECTION
Measure the brake master cylinder I.D.
Inspect the master cylinder for scratches or
cracks.
Service Limit: 12.75mm
Measure the brake master cylinder piston
O.D.
Service Limit: 12.645mm
Before assembly, inspect the lst and 2nd
rubber cups for wear.
ASSEMBLY
Before assembly, apply brake fluid to all
removed parts.
Install the spring together with the 1st rubber
cup.
· During assembly, the main piston and
spring must be installed as a unit
without exchange.
· When assembling the piston, soak the
cups in brake fluid for a while. Master Cylinder Spring Main Piston
· Install the cups with the cup lips facing
the correct direction.
Install the main piston, spring and snap ring.
Install the rubber cover.
Install the brake lever.
Snap Ring Rubber Cover
13-9
