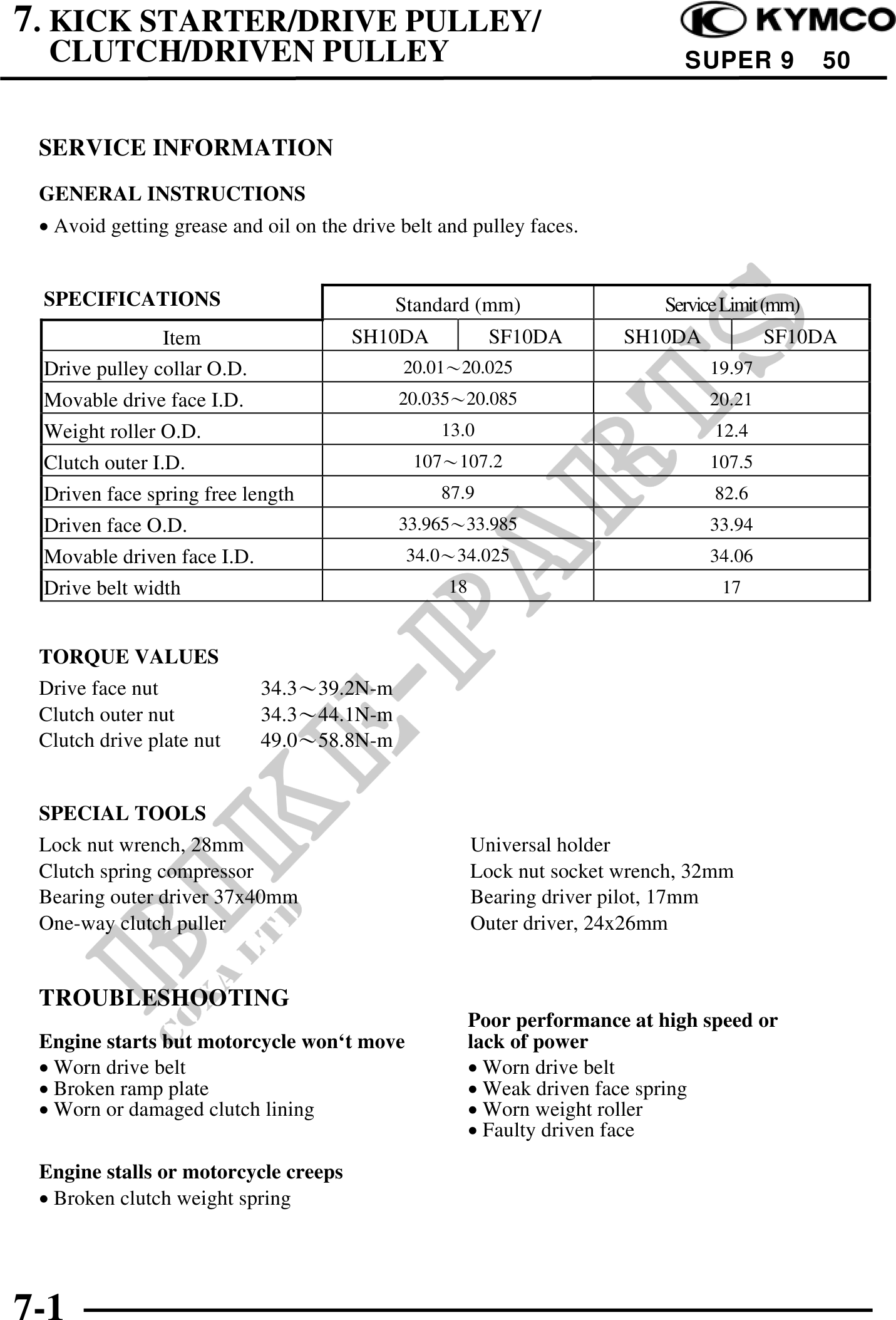

          7. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                         SUPER 9           50


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · Avoid getting grease and oil on the drive belt and pulley faces.


 SPECIFICATIONS                             Standard (mm)                   Service Limit (mm)
                Item                   SH10DA             SF10DA        SH10DA            SF10DA
 Drive pulley collar O.D.                    20.0120.025                          19.97
 Movable drive face I.D.                    20.03520.085                         20.21
 Weight roller O.D.                               13.0                            12.4
 Clutch outer I.D.                            107107.2                            107.5
 Driven face spring free length                   87.9                            82.6
 Driven face O.D.                           33.96533.985                          33.94
 Movable driven face I.D.                    34.034.025                           34.06
 Drive belt width                                  18                              17


 TORQUE VALUES
 Drive face nut             34.339.2N-m
 Clutch outer nut           34.344.1N-m
 Clutch drive plate nut     49.058.8N-m


 SPECIAL TOOLS
 Lock nut wrench, 28mm                                  Universal holder
 Clutch spring compressor                               Lock nut socket wrench, 32mm
 Bearing outer driver 37x40mm                           Bearing driver pilot, 17mm
 One-way clutch puller                                  Outer driver, 24x26mm


 TROUBLESHOOTING
                                                        Poor performance at high speed or
 Engine starts but motorcycle won`t move                lack of power
 · Worn drive belt                                      · Worn drive belt
 · Broken ramp plate                                    · Weak driven face spring
 · Worn or damaged clutch lining                        · Worn weight roller
                                                        · Faulty driven face

 Engine stalls or motorcycle creeps
 · Broken clutch weight spring




7-1
