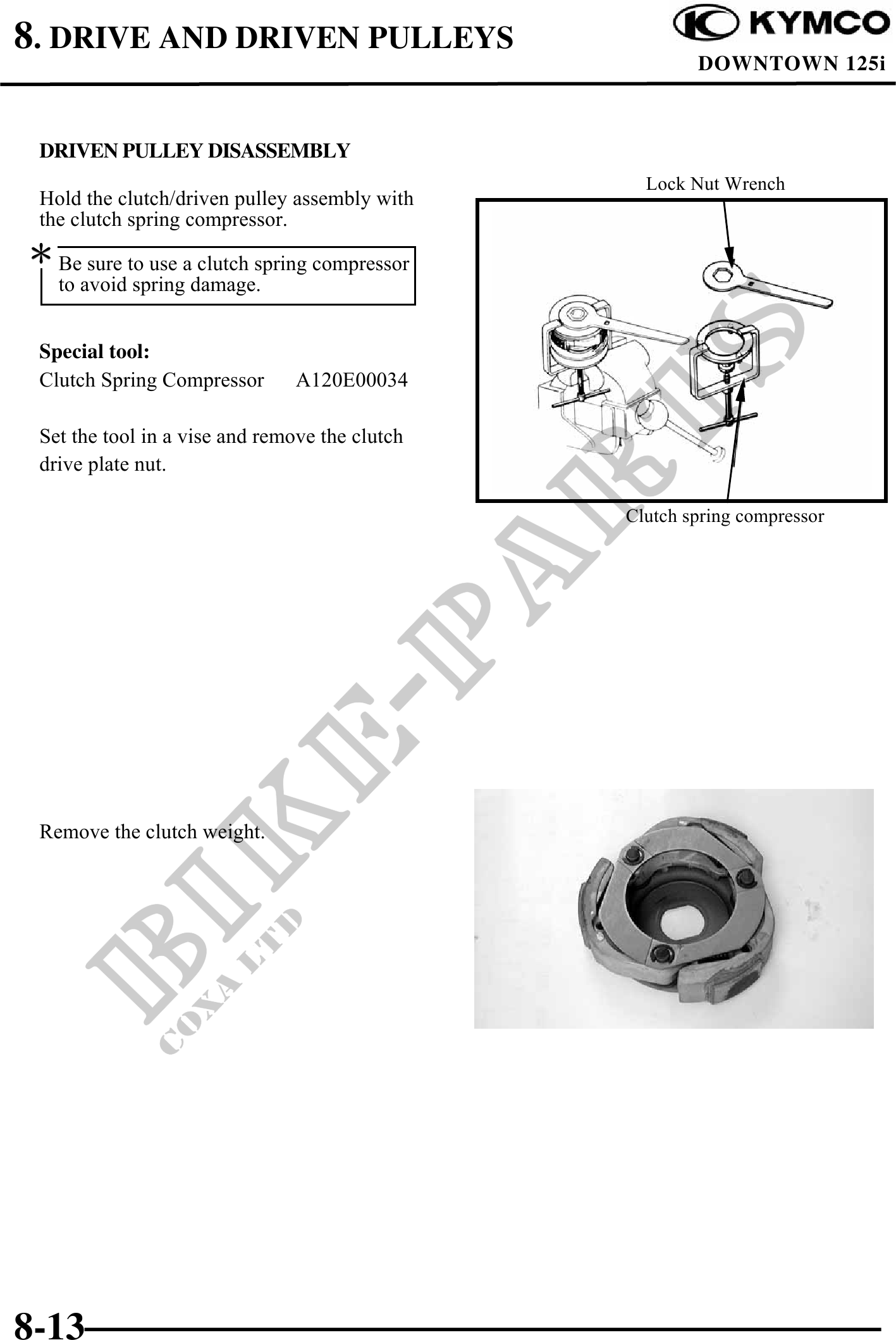

          8. DRIVE AND DRIVEN PULLEYS
                                                        DOWNTOWN 125i



 DRIVEN PULLEY DISASSEMBLY
                                                  Lock Nut Wrench
 Hold the clutch/driven pulley assembly with
 the clutch spring compressor.
 Be sure to use a clutch spring compressor
   to avoid spring damage.


 Special tool:
 Clutch Spring Compressor      A120E00034

 Set the tool in a vise and remove the clutch
 drive plate nut.

                                                Clutch spring compressor




 Remove the clutch weight.




8-13
