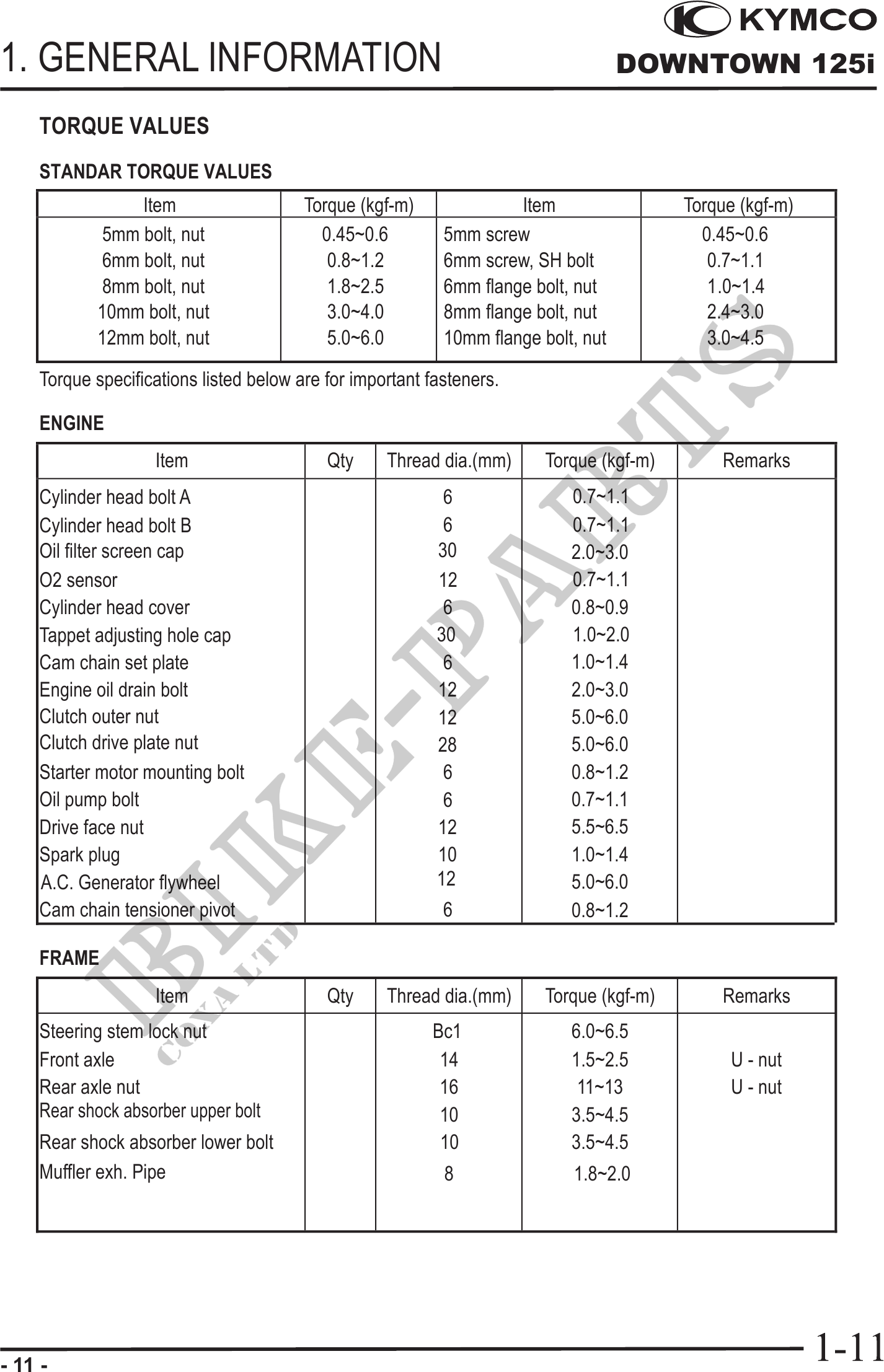

          1. GENERAL INFORMATION                                                              DOWNTOWN 125i

     TORQUE VALUES
     STANDAR TORQUE VALUES
                 Item                    Torque (kgf-m)              Item                 Torque (kgf-m)
             5mm bolt, nut                 0.45~0.6         5mm screw                       0.45~0.6
             6mm bolt, nut                  0.8~1.2         6mm screw, SH bolt               0.7~1.1
             8mm bolt, nut                  1.8~2.5         6mm flange bolt, nut             1.0~1.4
            10mm bolt, nut                  3.0~4.0         8mm flange bolt, nut             2.4~3.0
            12mm bolt, nut                  5.0~6.0         10mm flange bolt, nut            3.0~4.5

     Torque specifications listed below are for important fasteners.

     ENGINE
                    Item                    Qty     Thread dia.(mm)      Torque (kgf-m)       Remarks
     Cylinder head bolt A                                   6               0.7~1.1
     Cylinder head bolt B                                   6               0.7~1.1
     Oil filter screen cap                                 30               2.0~3.0
     O2 sensor                                             12               0.7~1.1
     Cylinder head cover                                    6               0.8~0.9
     Tappet adjusting hole cap                             30               1.0~2.0
     Cam chain set plate                                    6               1.0~1.4
     Engine oil drain bolt                                 12               2.0~3.0
     Clutch outer nut                                      12               5.0~6.0
     Clutch drive plate nut                                28               5.0~6.0
     Starter motor mounting bolt                            6               0.8~1.2
     Oil pump bolt                                          6               0.7~1.1
     Drive face nut                                        12               5.5~6.5
     Spark plug                                            10               1.0~1.4
     A.C. Generator flywheel                               12               5.0~6.0
     Cam chain tensioner pivot                              6               0.8~1.2

     FRAME
                    Item                    Qty     Thread dia.(mm)      Torque (kgf-m)       Remarks
     Steering stem lock nut                               Bc1               6.0~6.5
     Front axle                                            14               1.5~2.5             U - nut
     Rear axle nut                                         16                11~13              U - nut
     Rear shock absorber upper bolt                        10               3.5~4.5
     Rear shock absorber lower bolt                        10               3.5~4.5
     Muffler exh. Pipe                                      8               1.8~2.0




- 11 -
