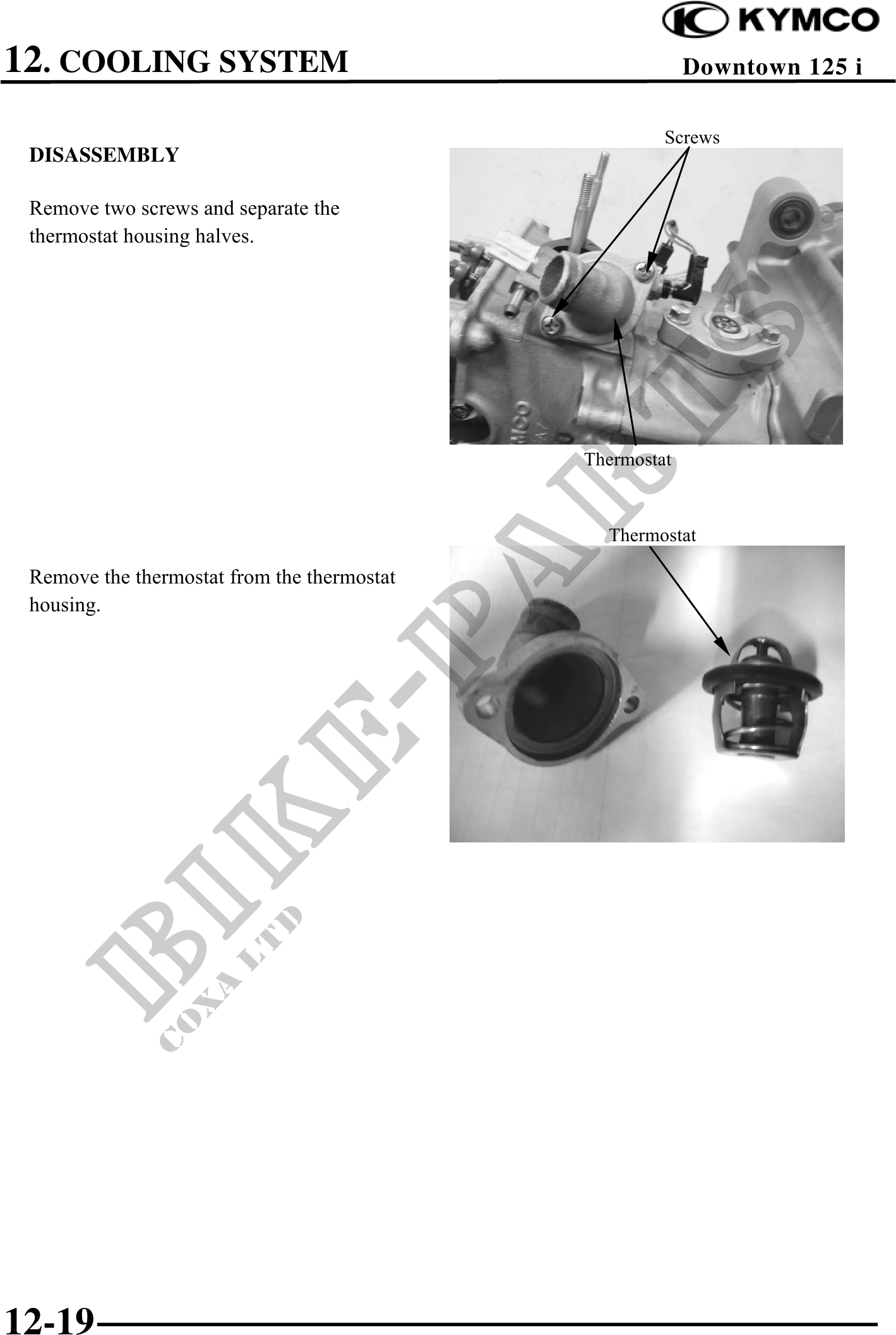

          12. COOLING SYSTEM                                        Downtown 125 i

                                                      Screws
 DISASSEMBLY

 Remove two screws and separate the
 thermostat housing halves.




                                             Thermostat


                                               Thermostat

 Remove the thermostat from the thermostat
 housing.




12-19
