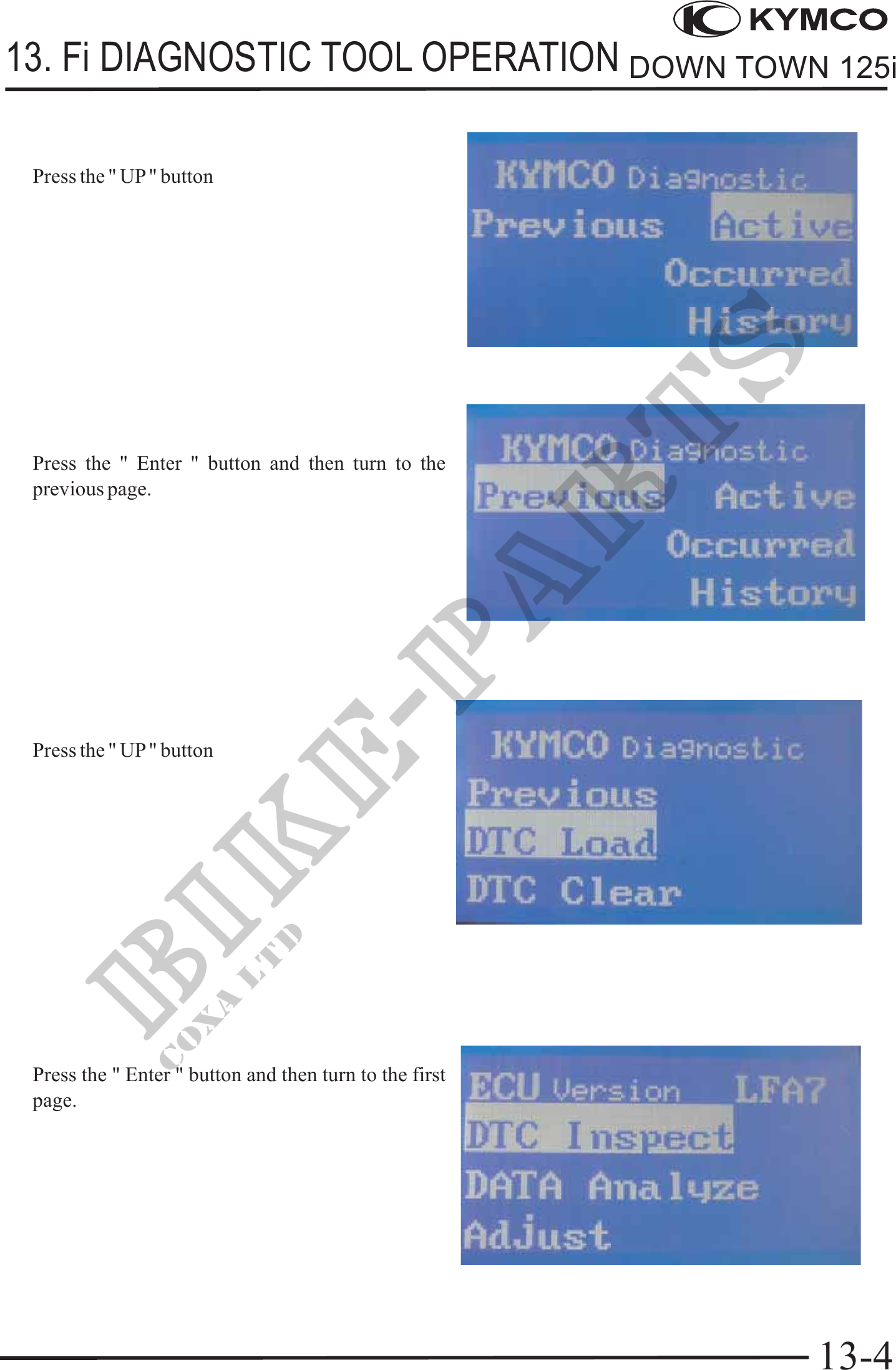

          13. Fi DIAGNOSTIC TOOL OPERATION DOWN TOWN 125i

 Press the " UP " button




 Press the " Enter " button and then turn to the
 previous page.




 Press the " UP " button




 Press the " Enter " button and then turn to the first
 page.




                                                         13-4
