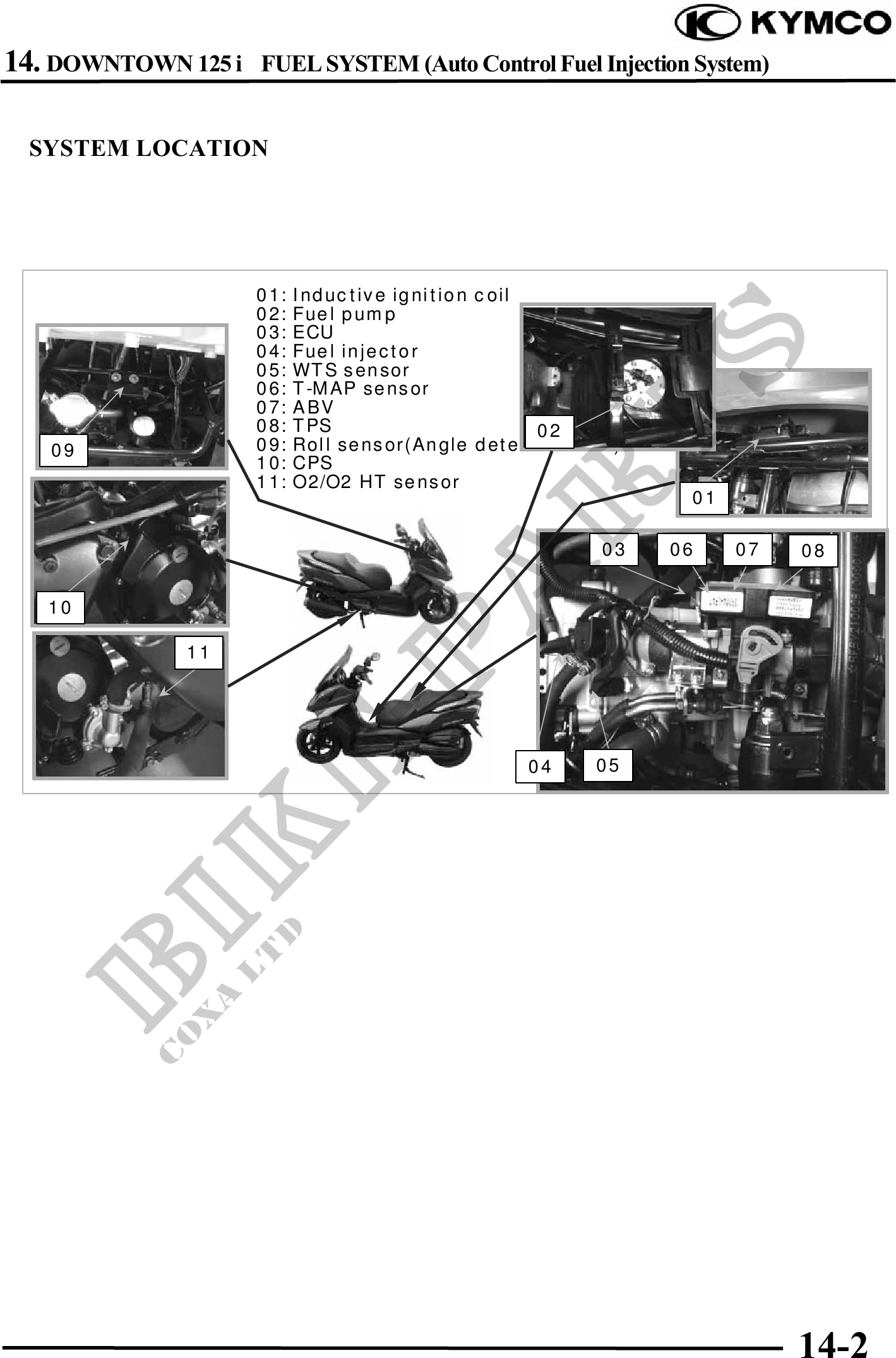

          14. DOWNTOWN 125 i   FUEL SYSTEM (Auto Control Fuel Injection System)


 SYSTEM LOCATION




                     01: Inductive ignition coil
                     02: Fuel pump
                     03: ECU
                     04: Fuel injector
                     05: WTS sensor
                     06: T-MAP sensor
                     07: ABV
                     08: TPS                     02
   09                09: Roll sensor(Angle detect sensor)
                     10: CPS
                     11: O2/O2 HT sensor
                                                             01

                                                       03   06    07    08


   10

             11




                                               04     05
