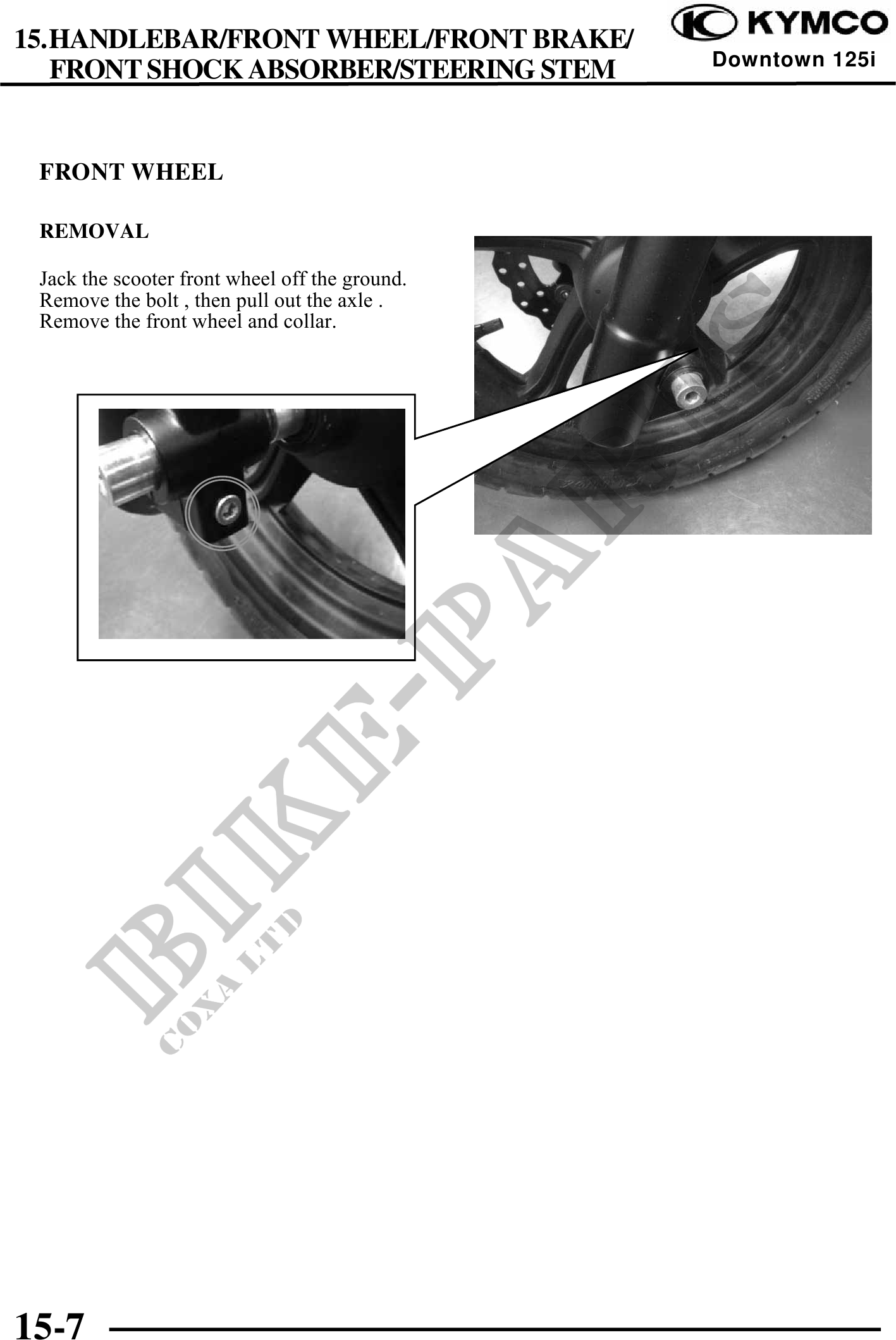

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                Downtown 125i
   FRONT SHOCK ABSORBER/STEERING STEM


 FRONT WHEEL

 REMOVAL

 Jack the scooter front wheel off the ground.
 Remove the bolt , then pull out the axle .
 Remove the front wheel and collar.




15-7
