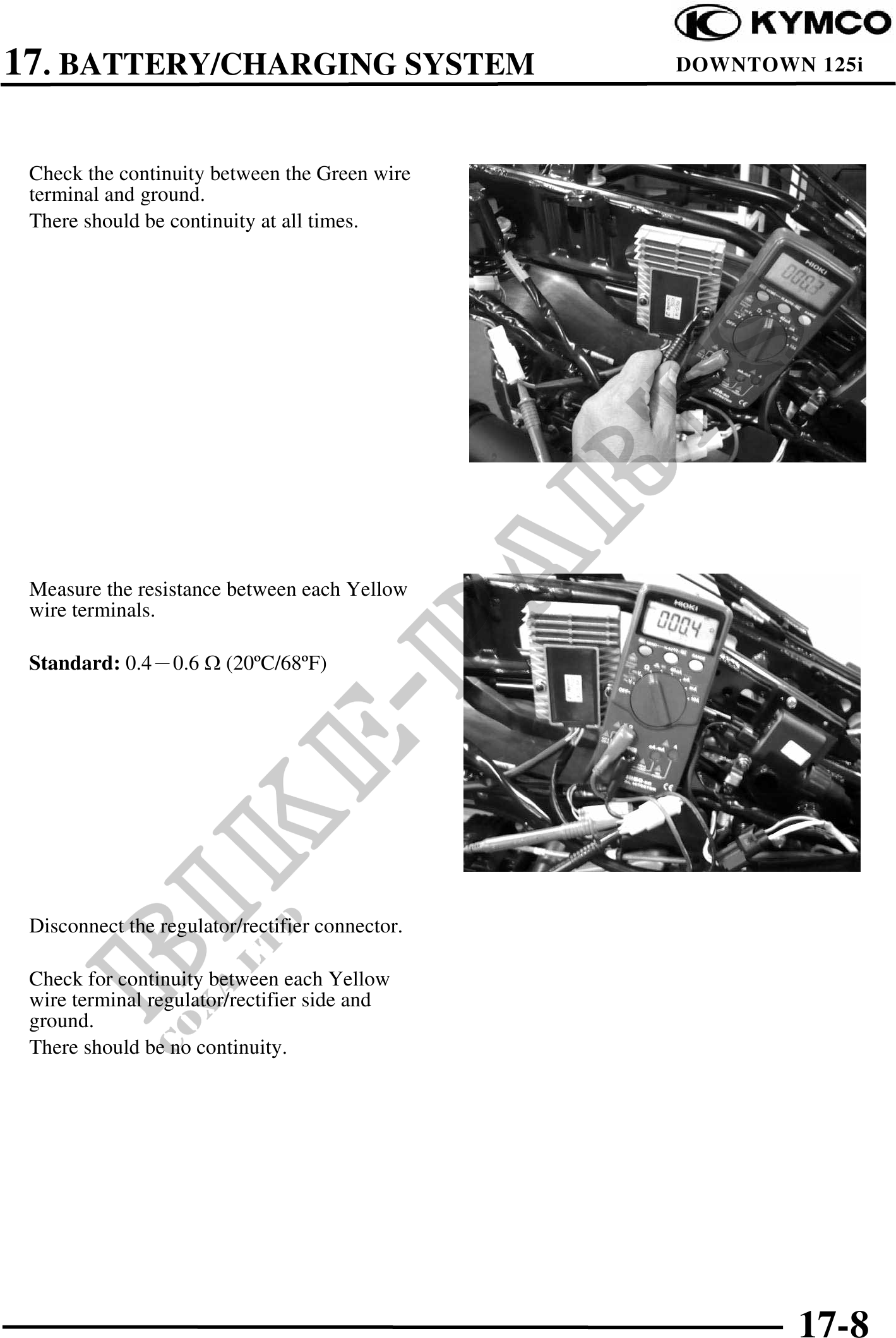

17. BATTERY/CHARGING SYSTEM DOWNTOWN 125i
Check the continuity between the Green wire
terminal and ground.
There should be continuity at all times.
Measure the resistance between each Yellow
wire terminals.
Standard: 0.40.6 (20C/68F)
Disconnect the regulator/rectifier connector.
Check for continuity between each Yellow
wire terminal regulator/rectifier side and
ground.
There should be no continuity.
17-8
