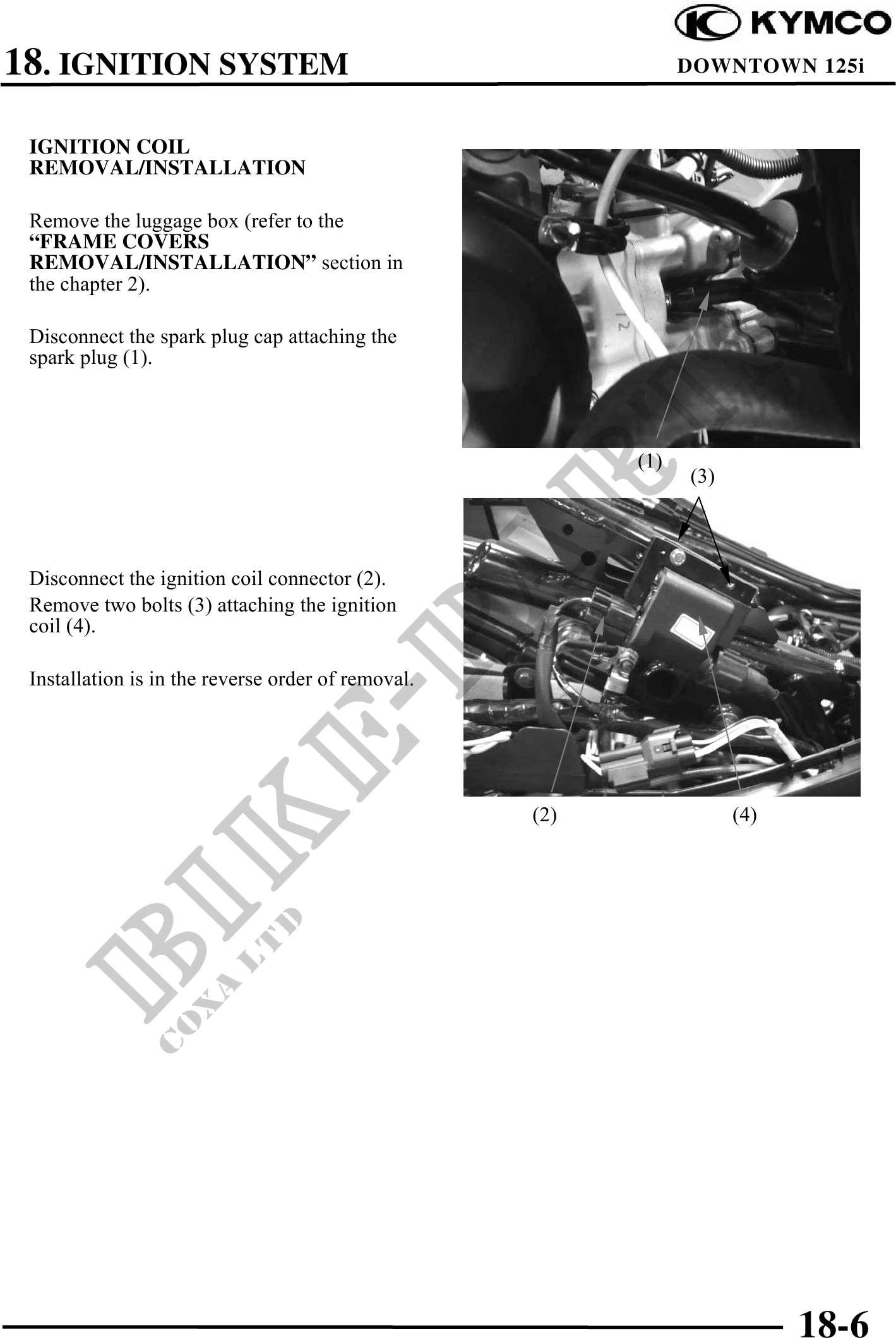

          18. IGNITION SYSTEM                                             DOWNTOWN 125i


 IGNITION COIL
 REMOVAL/INSTALLATION

 Remove the luggage box (refer to the
 "FRAME COVERS
 REMOVAL/INSTALLATION" section in
 the chapter 2).

 Disconnect the spark plug cap attaching the
 spark plug (1).



                                                          (1)
                                                                (3)



 Disconnect the ignition coil connector (2).
 Remove two bolts (3) attaching the ignition
 coil (4).

 Installation is in the reverse order of removal.




                                                    (2)               (4)
