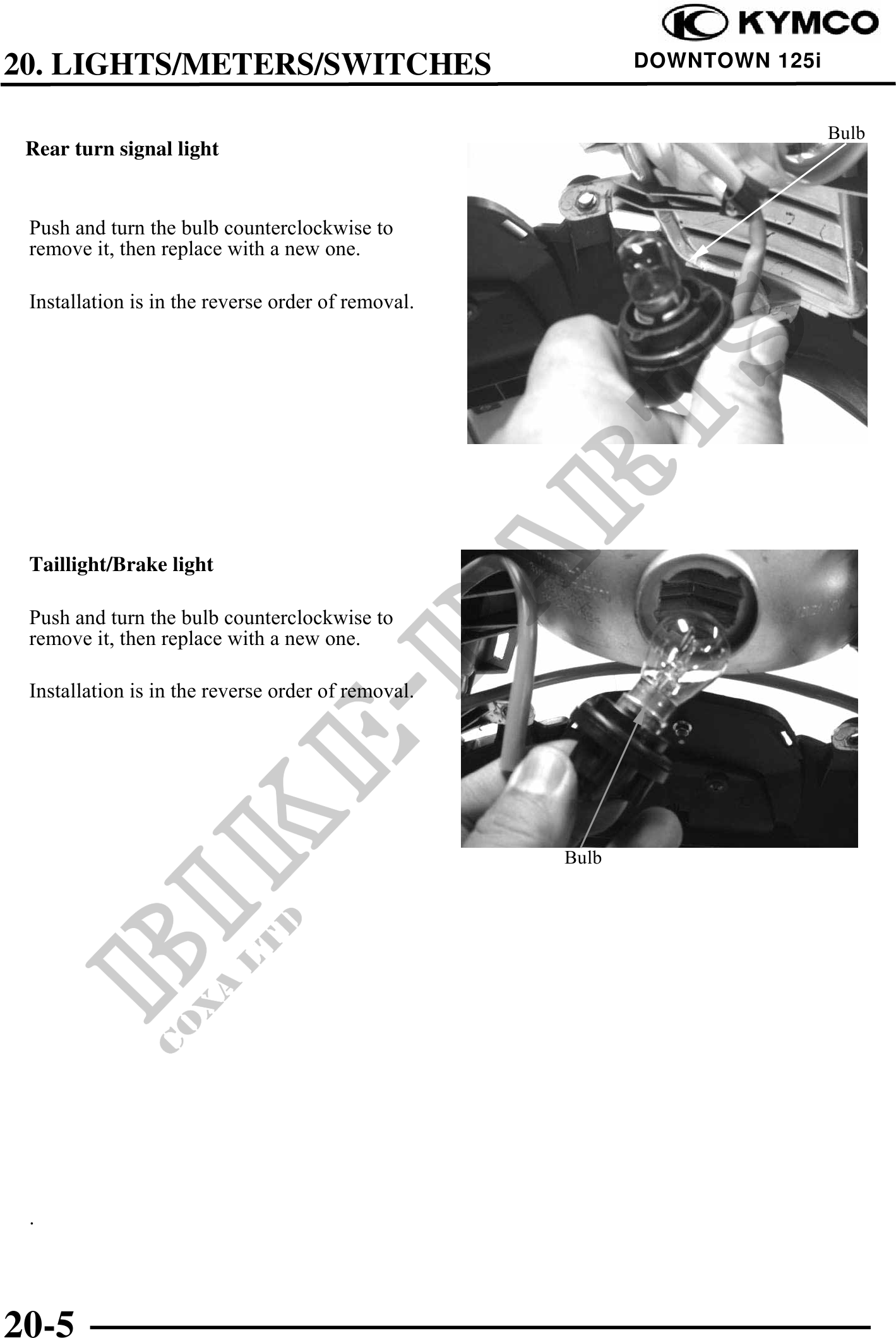

          20. LIGHTS/METERS/SWITCHES                                 DOWNTOWN 125i


                                                                           Bulb
 Rear turn signal light


 Push and turn the bulb counterclockwise to
 remove it, then replace with a new one.

 Installation is in the reverse order of removal.




 Taillight/Brake light

 Push and turn the bulb counterclockwise to
 remove it, then replace with a new one.

 Installation is in the reverse order of removal.




                                                    Bulb




 .




20-5
