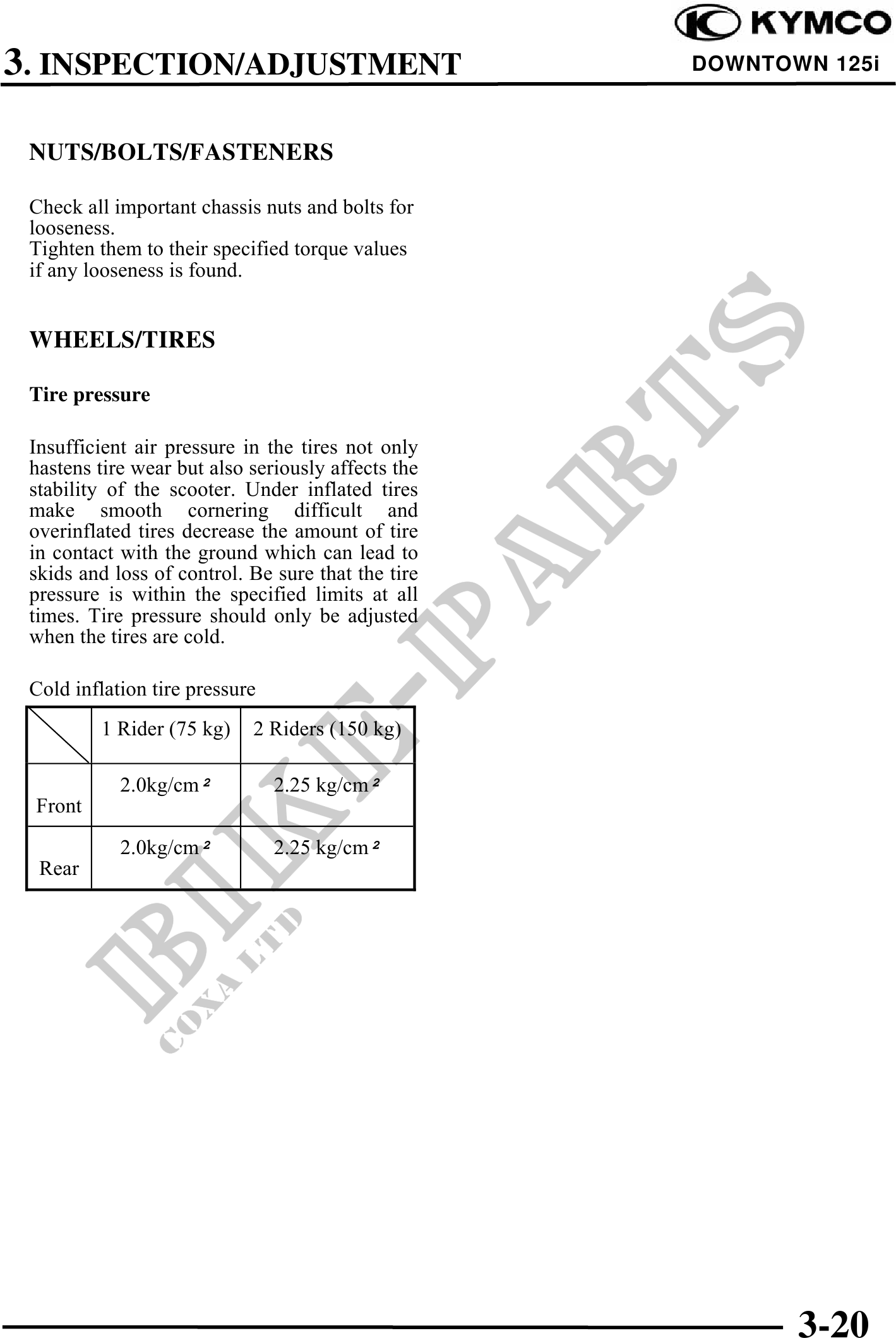

          3. INSPECTION/ADJUSTMENT                            DOWNTOWN 125i



 NUTS/BOLTS/FASTENERS

 Check all important chassis nuts and bolts for
 looseness.
 Tighten them to their specified torque values
 if any looseness is found.


 WHEELS/TIRES

 Tire pressure

 Insufficient air pressure in the tires not only
 hastens tire wear but also seriously affects the
 stability of the scooter. Under inflated tires
 make smooth cornering difficult and
 overinflated tires decrease the amount of tire
 in contact with the ground which can lead to
 skids and loss of control. Be sure that the tire
 pressure is within the specified limits at all
 times. Tire pressure should only be adjusted
 when the tires are cold.

 Cold inflation tire pressure
         1 Rider (75 kg)    2 Riders (150 kg)

            2.0kg/cm            2.25 kg/cm
 Front
            2.0kg/cm            2.25 kg/cm
  Rear




                                                           3-20
