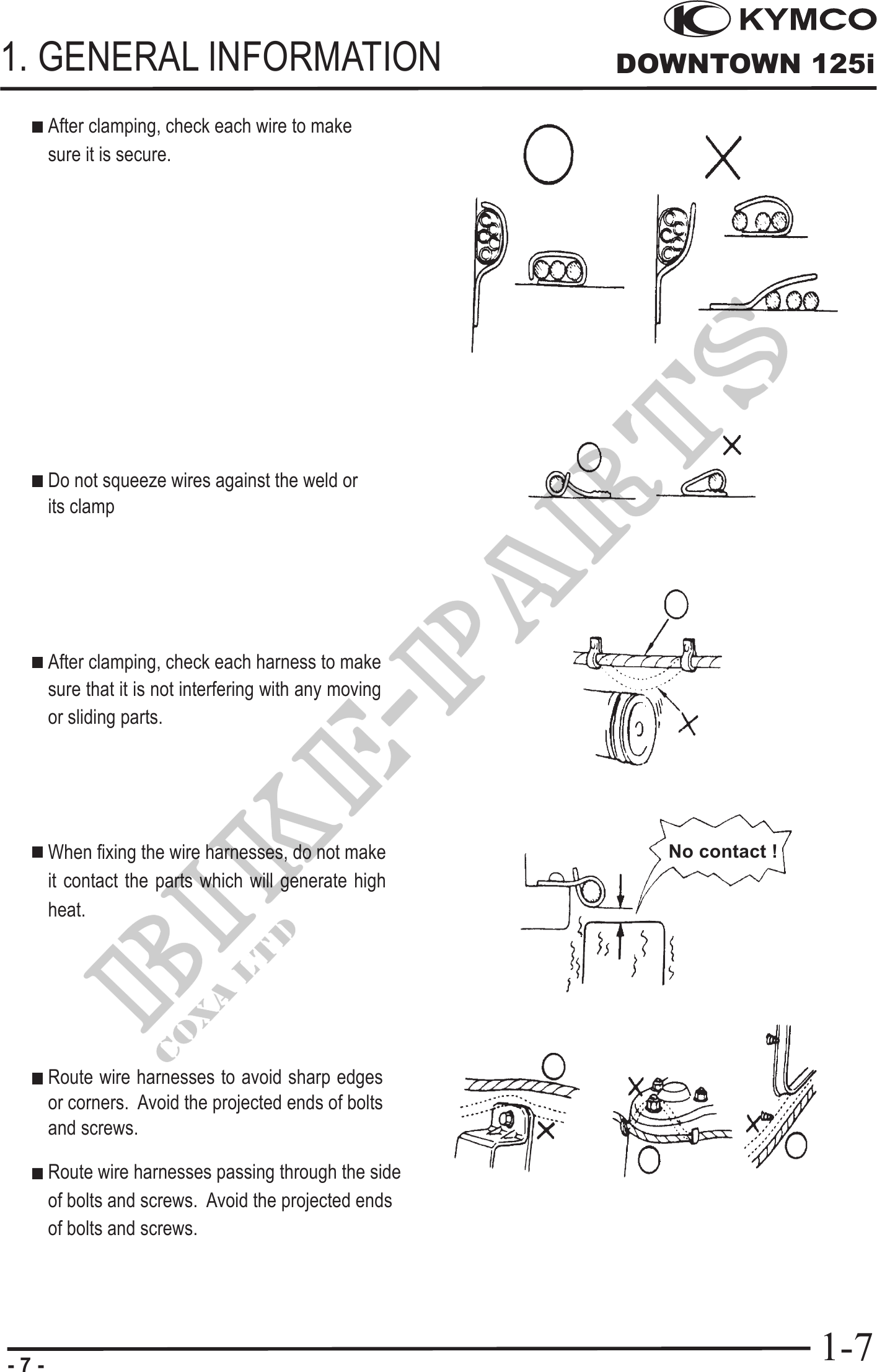

          1. GENERAL INFORMATION                                  DOWNTOWN 125i

      After clamping, check each wire to make
      sure it is secure.




      Do not squeeze wires against the weld or
      its clamp




      After clamping, check each harness to make
      sure that it is not interfering with any moving
      or sliding parts.




      When fixing the wire harnesses, do not make         No contact !
      it contact the parts which will generate high
      heat.




      Route wire harnesses to avoid sharp edges
      or corners. Avoid the projected ends of bolts
      and screws.

      Route wire harnesses passing through the side
      of bolts and screws. Avoid the projected ends
      of bolts and screws.
