          7. CYLINDER/PISTON                                        DOWNTOWN 125i

 Piston/Piston pin

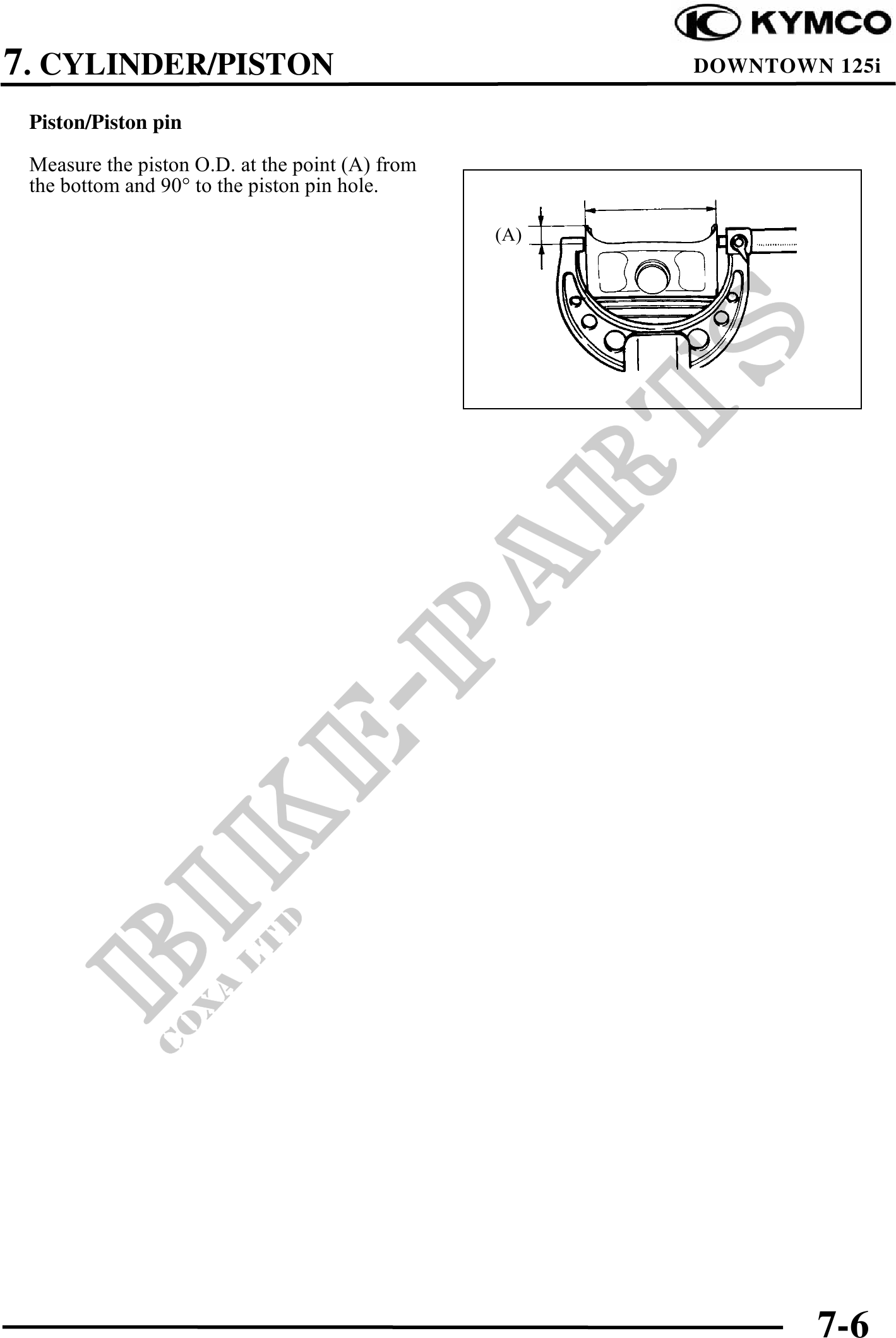

 Measure the piston O.D. at the point (A) from
 the bottom and 90° to the piston pin hole.

                                                 10 mm
                                                    (A)




 Service Limit: 15.04 mm (0.6016 in)




 Service Limit: 0.02 mm (0.0008 in)
