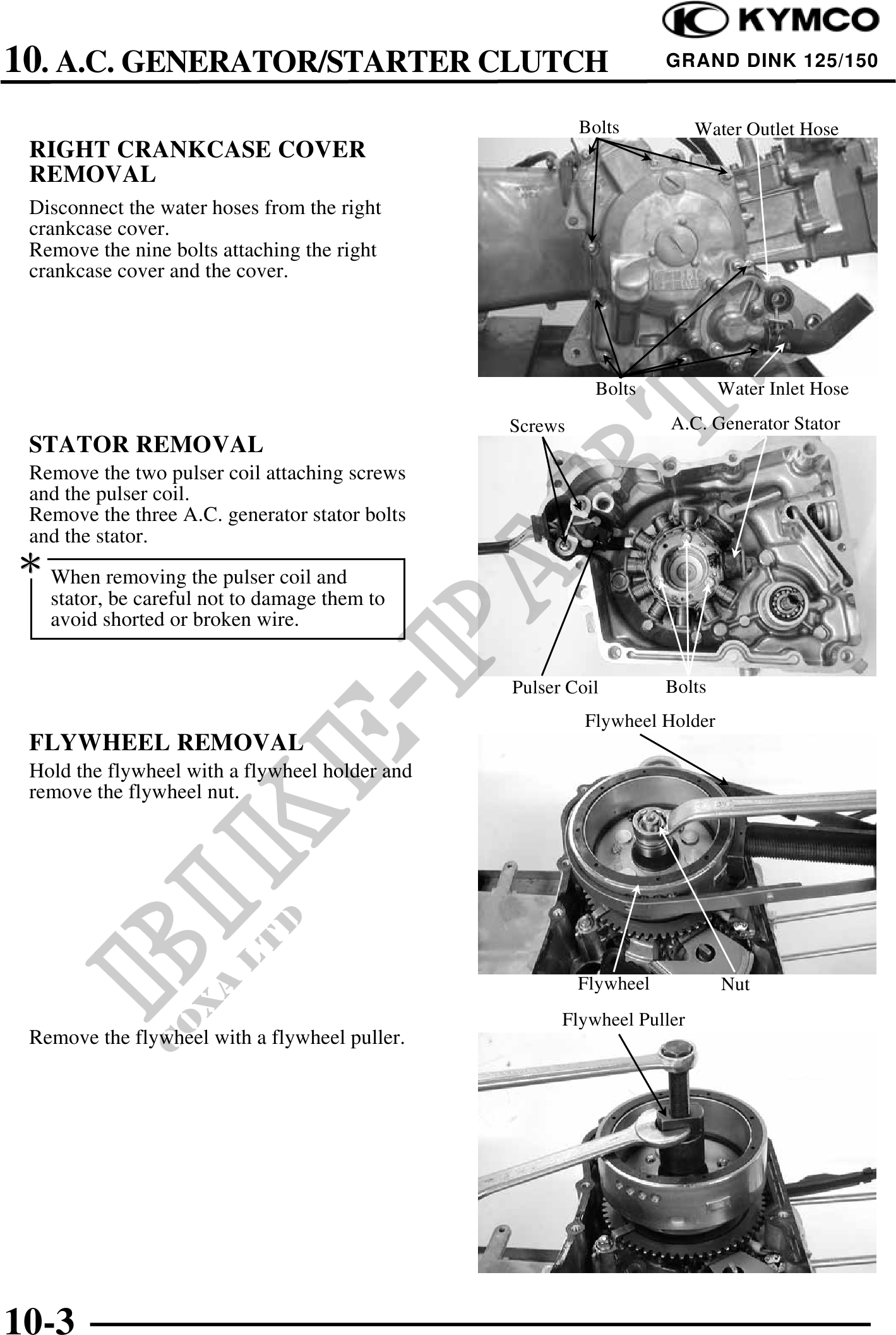

10. A.C. GENERATOR/STARTER CLUTCH GRAND DINK 125/150
Bolts Water Outlet Hose
RIGHT CRANKCASE COVER
REMOVAL
Disconnect the water hoses from the right
crankcase cover.
Remove the nine bolts attaching the right
crankcase cover and the cover.
Bolts Water Inlet Hose
Screws A.C. Generator Stator
STATOR REMOVAL
Remove the two pulser coil attaching screws
and the pulser coil.
Remove the three A.C. generator stator bolts
and the stator.
When removing the pulser coil and
stator, be careful not to damage them to
avoid shorted or broken wire.
Pulser Coil Bolts
Flywheel Holder
FLYWHEEL REMOVAL
Hold the flywheel with a flywheel holder and
remove the flywheel nut.
Flywheel Nut
Flywheel Puller
Remove the flywheel with a flywheel puller.
10-3
