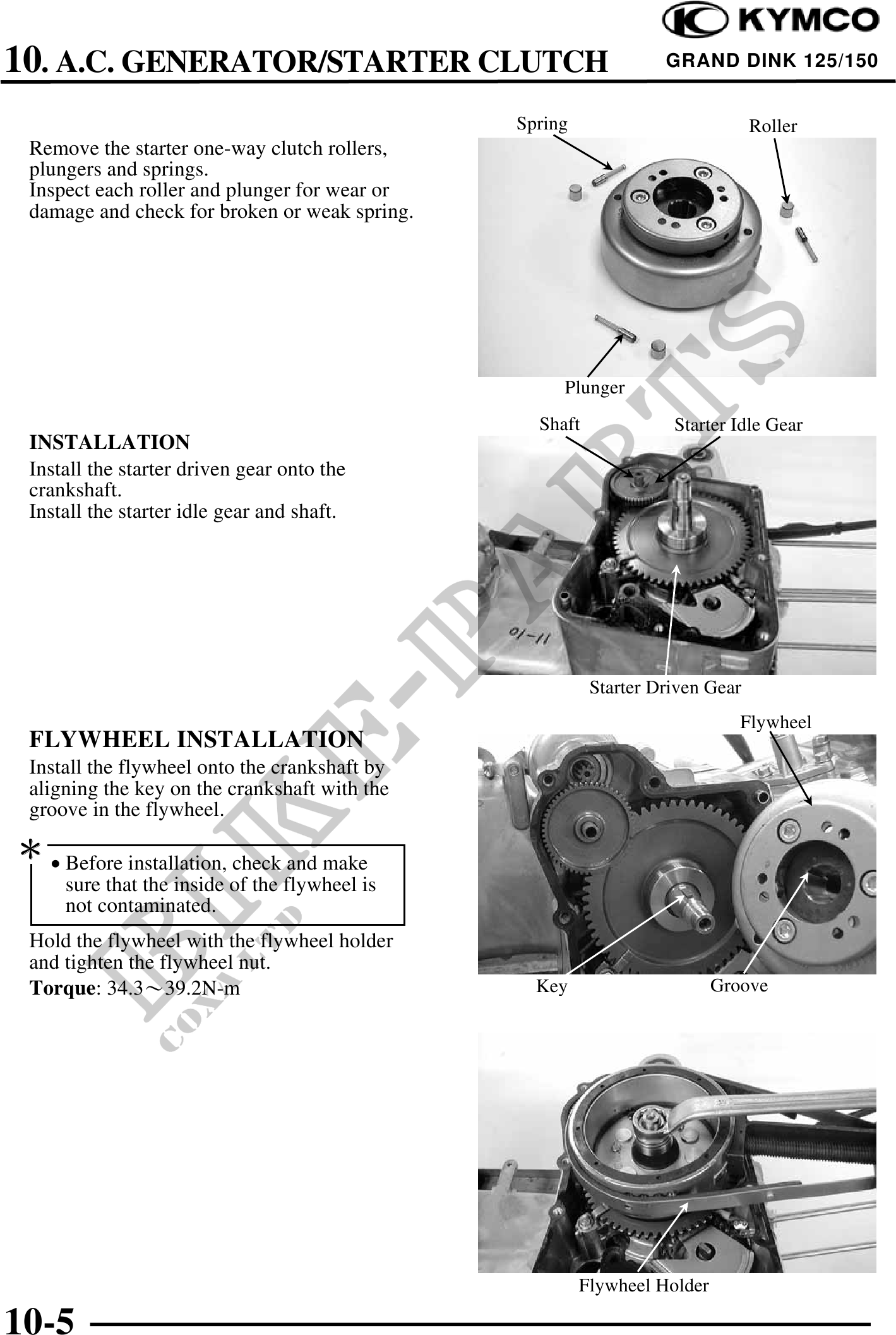

10. A.C. GENERATOR/STARTER CLUTCH GRAND DINK 125/150
Spring Roller
Remove the starter one-way clutch rollers,
plungers and springs.
Inspect each roller and plunger for wear or
damage and check for broken or weak spring.
Plunger
Shaft Starter Idle Gear
INSTALLATION
Install the starter driven gear onto the
crankshaft.
Install the starter idle gear and shaft.
Starter Driven Gear
Flywheel
FLYWHEEL INSTALLATION
Install the flywheel onto the crankshaft by
aligning the key on the crankshaft with the
groove in the flywheel.
· Before installation, check and make
sure that the inside of the flywheel is
not contaminated.
Hold the flywheel with the flywheel holder
and tighten the flywheel nut.
Torque: 34.339.2N-m Key Groove
Flywheel Holder
10-5
