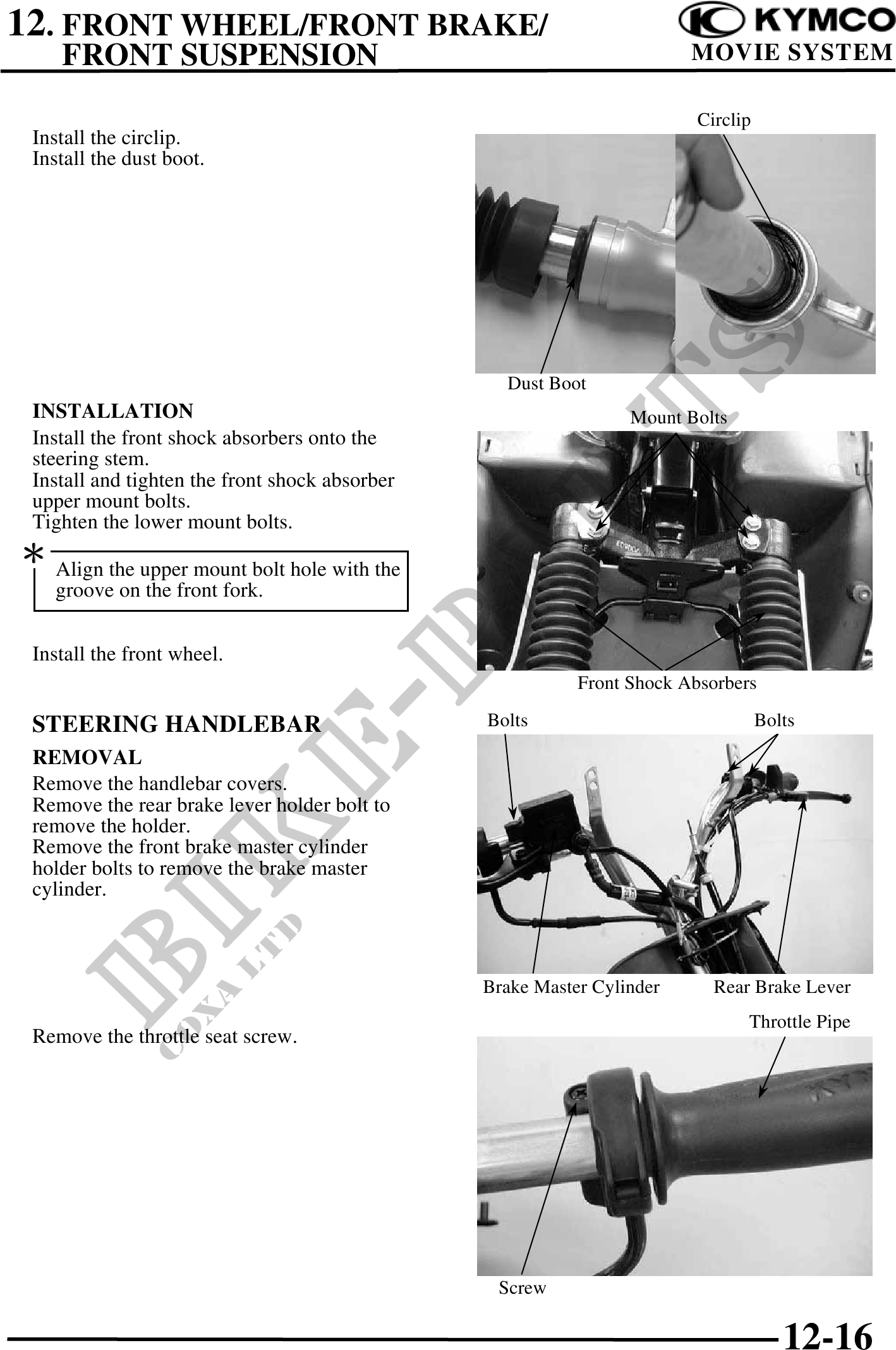

          12. FRONT WHEEL/FRONT BRAKE/
    FRONT SUSPENSION                                                    MOVIE SYSTEM

                                                                         Circlip
 Install the circlip.
 Install the dust boot.




                                                  Dust Boot
 INSTALLATION                                                    Mount Bolts
 Install the front shock absorbers onto the
 steering stem.
 Install and tighten the front shock absorber
 upper mount bolts.
 Tighten the lower mount bolts.
 Align the upper mount bolt hole with the
    groove on the front fork.


 Install the front wheel.
                                                           Front Shock Absorbers

 STEERING HANDLEBAR                             Bolts                              Bolts
 REMOVAL
 Remove the handlebar covers.
 Remove the rear brake lever holder bolt to
 remove the holder.
 Remove the front brake master cylinder
 holder bolts to remove the brake master
 cylinder.



                                                Brake Master Cylinder      Rear Brake Lever
                                                                               Throttle Pipe
 Remove the throttle seat screw.




                                                 Screw

                                                                                      12-16
