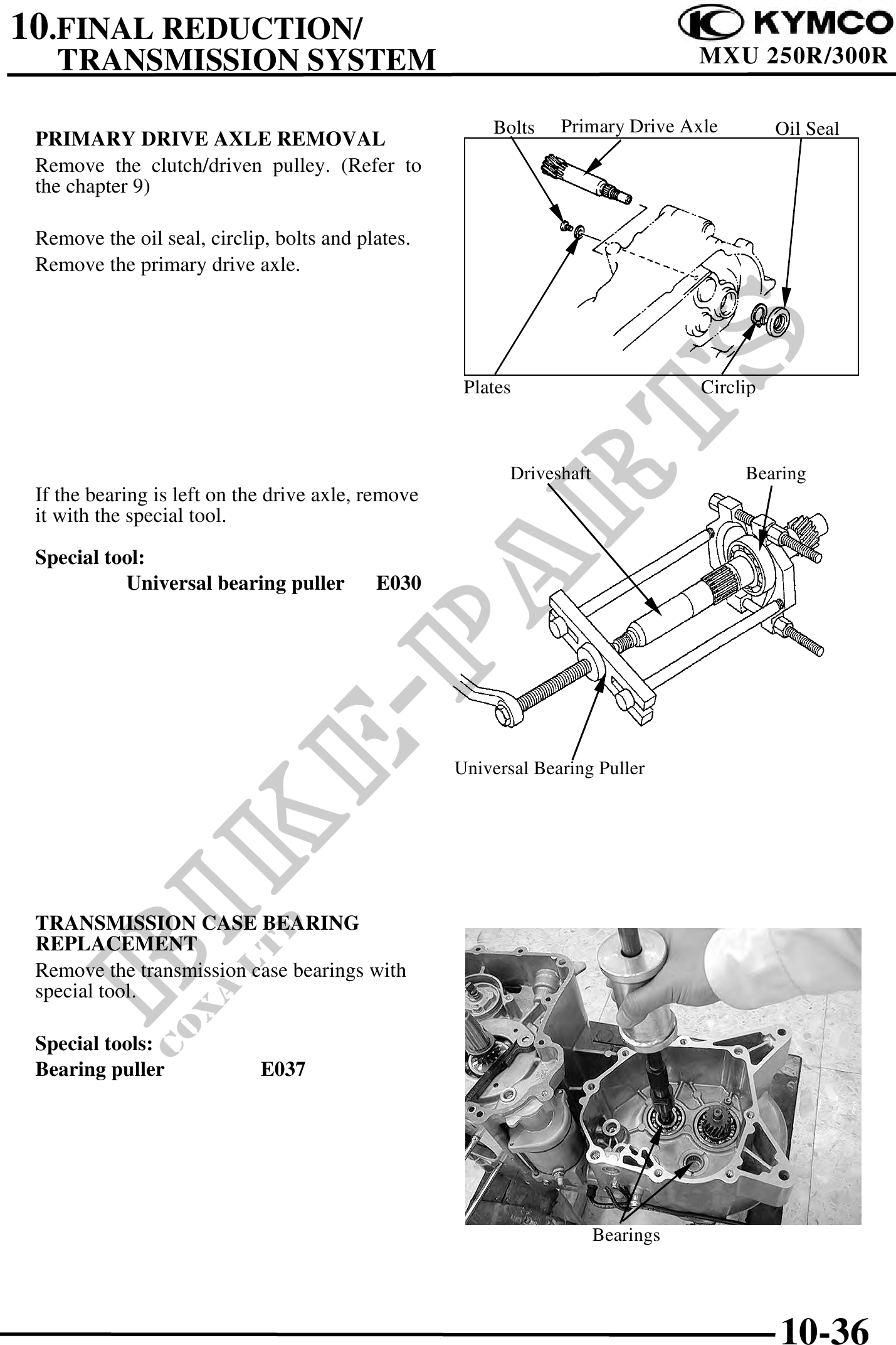

10.FINAL REDUCTION/
TRANSMISSION SYSTEM MXU 250R/300R
Bolts Primary Drive Axle Oil Seal
PRIMARY DRIVE AXLE REMOVAL
Remove the clutch/driven pulley. (Refer to
the chapter 9)
Remove the oil seal, circlip, bolts and plates.
Remove the primary drive axle.
Plates Circlip
Driveshaft Bearing
If the bearing is left on the drive axle, remove
it with the special tool.
Special tool:
Universal bearing puller E030
Universal Bearing Puller
TRANSMISSION CASE BEARING
REPLACEMENT
Remove the transmission case bearings with
special tool.
Special tools:
Bearing puller E037
Bearings
10-36
