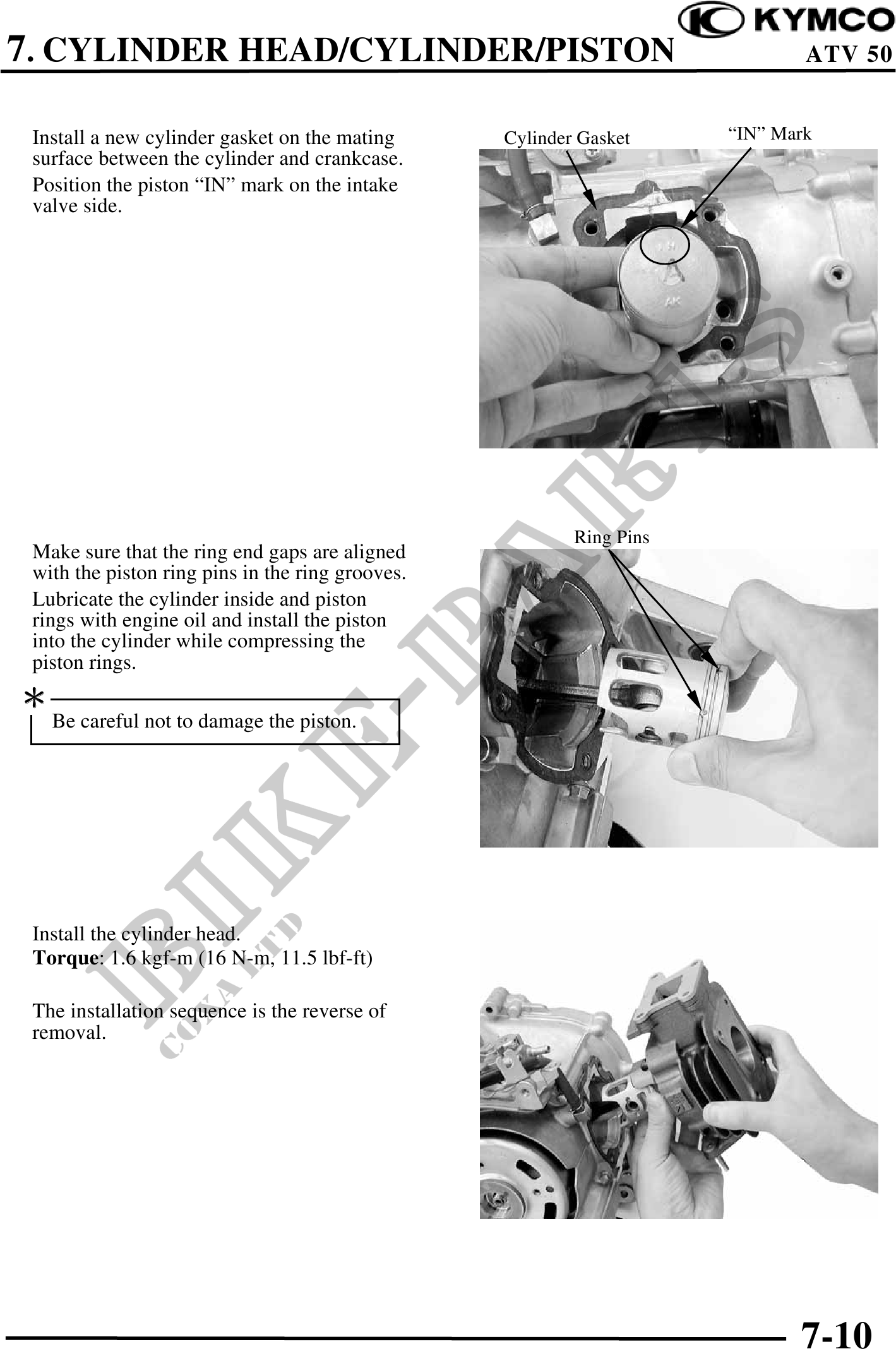

7. CYLINDER HEAD/CYLINDER/PISTON ATV 50
Install a new cylinder gasket on the mating Cylinder Gasket "IN" Mark
surface between the cylinder and crankcase.
Position the piston "IN" mark on the intake
valve side.
Ring Pins
Make sure that the ring end gaps are aligned
with the piston ring pins in the ring grooves.
Lubricate the cylinder inside and piston
rings with engine oil and install the piston
into the cylinder while compressing the
piston rings.
Be careful not to damage the piston.
Install the cylinder head.
Torque: 1.6 kgf-m (16 N-m, 11.5 lbf-ft)
The installation sequence is the reverse of
removal.
7-10
