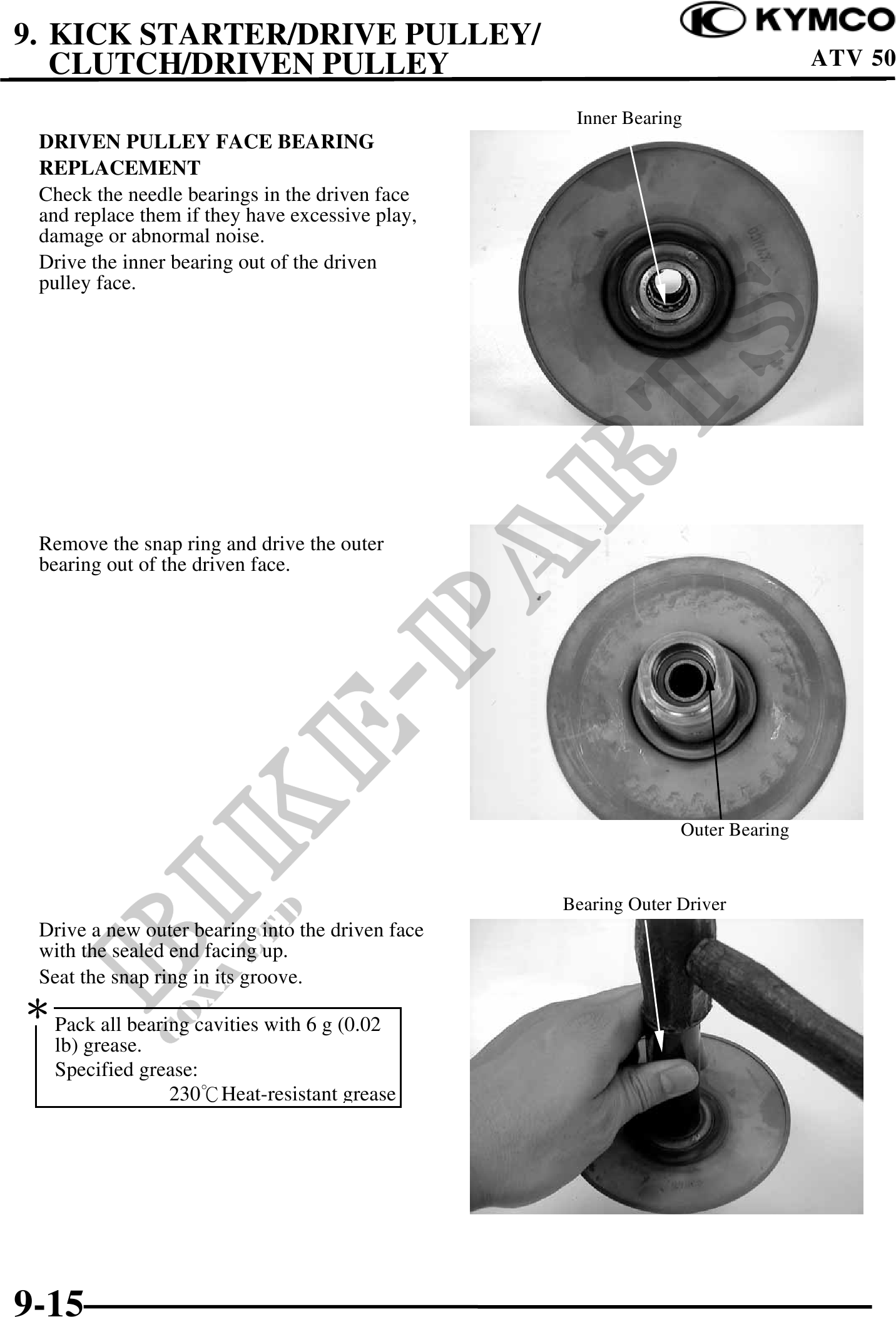

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Inner Bearing
DRIVEN PULLEY FACE BEARING
REPLACEMENT
Check the needle bearings in the driven face
and replace them if they have excessive play,
damage or abnormal noise.
Drive the inner bearing out of the driven
pulley face.
Remove the snap ring and drive the outer
bearing out of the driven face.
Outer Bearing
Bearing Outer Driver
Drive a new outer bearing into the driven face
with the sealed end facing up.
Seat the snap ring in its groove.
Pack all bearing cavities with 6 g (0.02
lb) grease.
Specified grease:
230Heat-resistant grease
9-15
