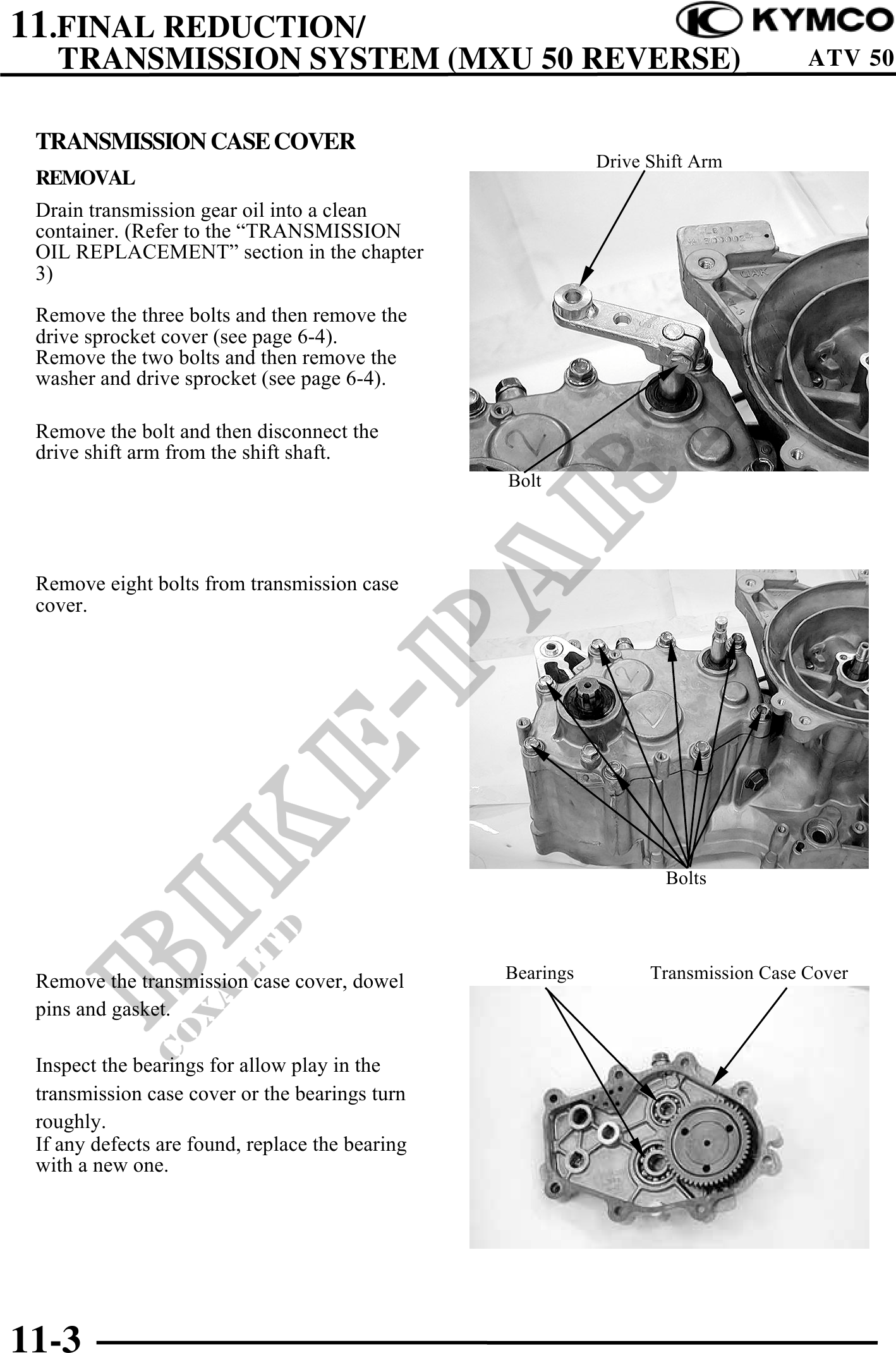

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
TRANSMISSION CASE COVER
Drive Shift Arm
REMOVAL
Drain transmission gear oil into a clean
container. (Refer to the "TRANSMISSION
OIL REPLACEMENT" section in the chapter
3)
Remove the three bolts and then remove the
drive sprocket cover (see page 6-4).
Remove the two bolts and then remove the
washer and drive sprocket (see page 6-4).
Remove the bolt and then disconnect the
drive shift arm from the shift shaft.
Bolt
Remove eight bolts from transmission case
cover.
Bolts
Remove the transmission case cover, dowel Bearings Transmission Case Cover
pins and gasket.
Inspect the bearings for allow play in the
transmission case cover or the bearings turn
roughly.
If any defects are found, replace the bearing
with a new one.
11-3
