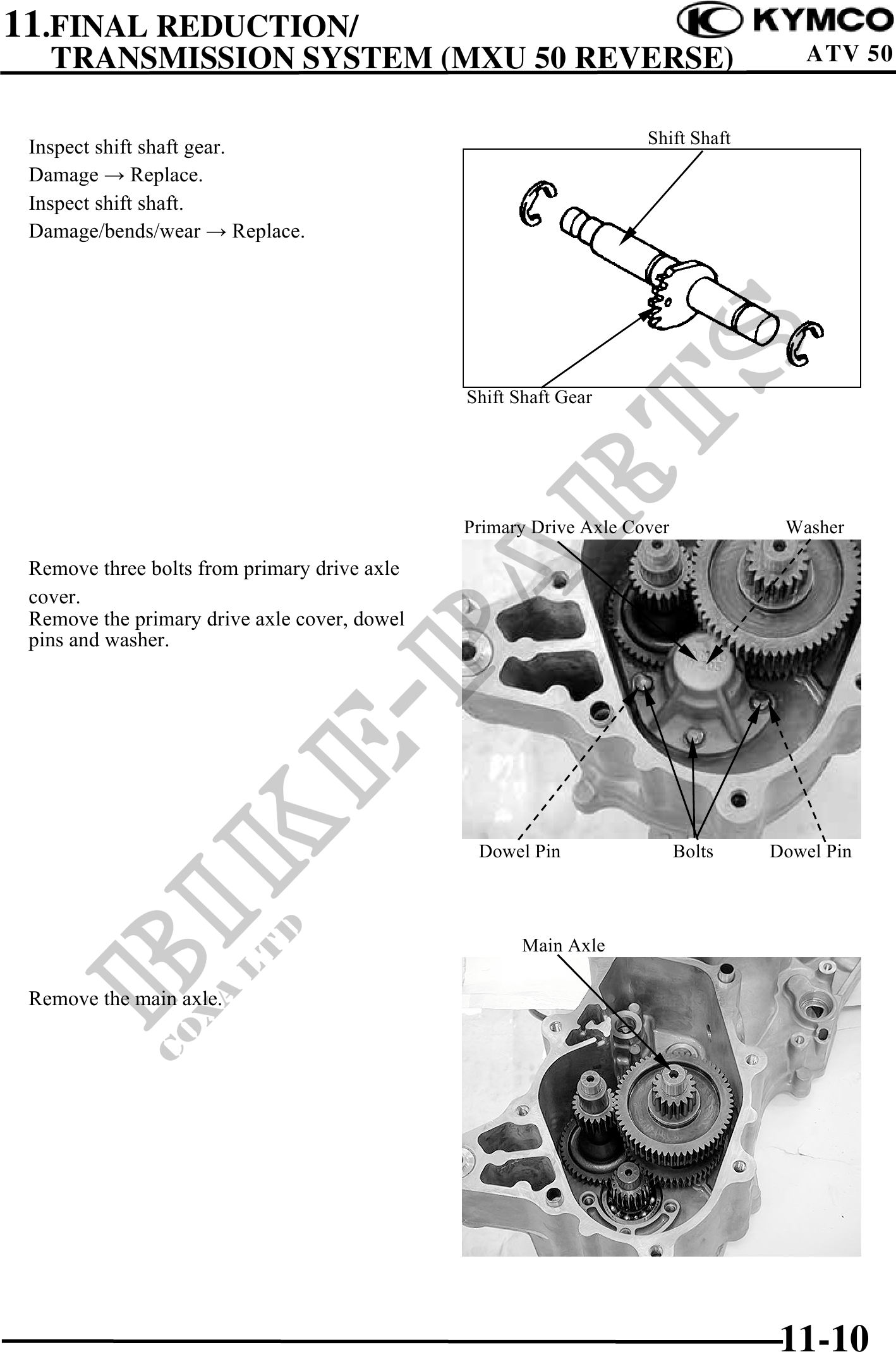

11.FINAL REDUCTION/
TRANSMISSION SYSTEM (MXU 50 REVERSE) ATV 50
Inspect shift shaft gear. Shift Shaft
Damage Replace.
Inspect shift shaft.
Damage/bends/wear Replace.
Shift Shaft Gear
Primary Drive Axle Cover Washer
Remove three bolts from primary drive axle
cover.
Remove the primary drive axle cover, dowel
pins and washer.
Dowel Pin Bolts Dowel Pin
Main Axle
Remove the main axle.
11-10
