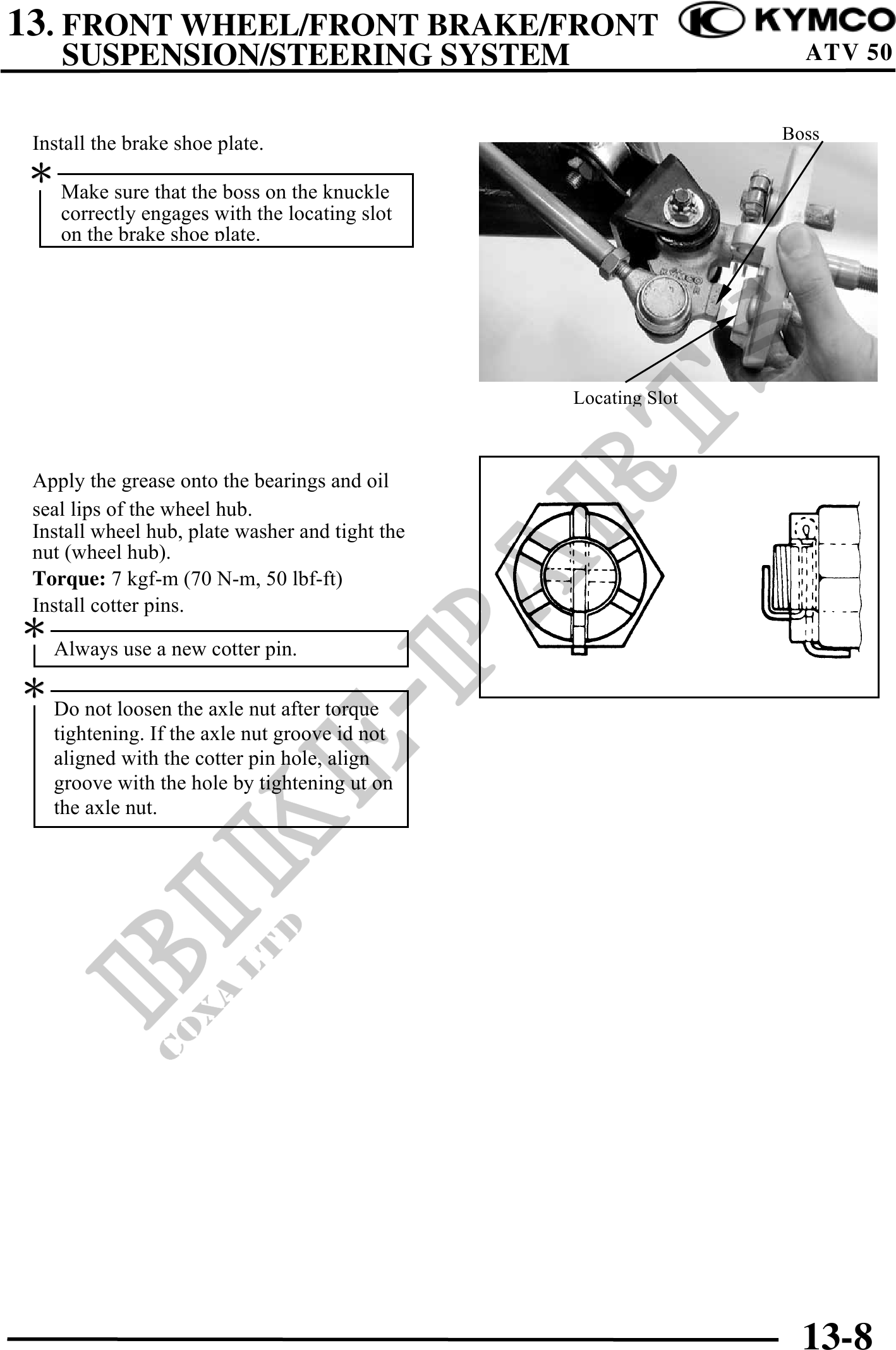

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Boss
Install the brake shoe plate.
Make sure that the boss on the knuckle
correctly engages with the locating slot
on the brake shoe plate.
Locating Slot
Apply the grease onto the bearings and oil
seal lips of the wheel hub.
Install wheel hub, plate washer and tight the
nut (wheel hub).
Torque: 7 kgf-m (70 N-m, 50 lbf-ft)
Install cotter pins.
Always use a new cotter pin.
Do not loosen the axle nut after torque
tightening. If the axle nut groove id not
aligned with the cotter pin hole, align
groove with the hole by tightening ut on
the axle nut.
13-8
