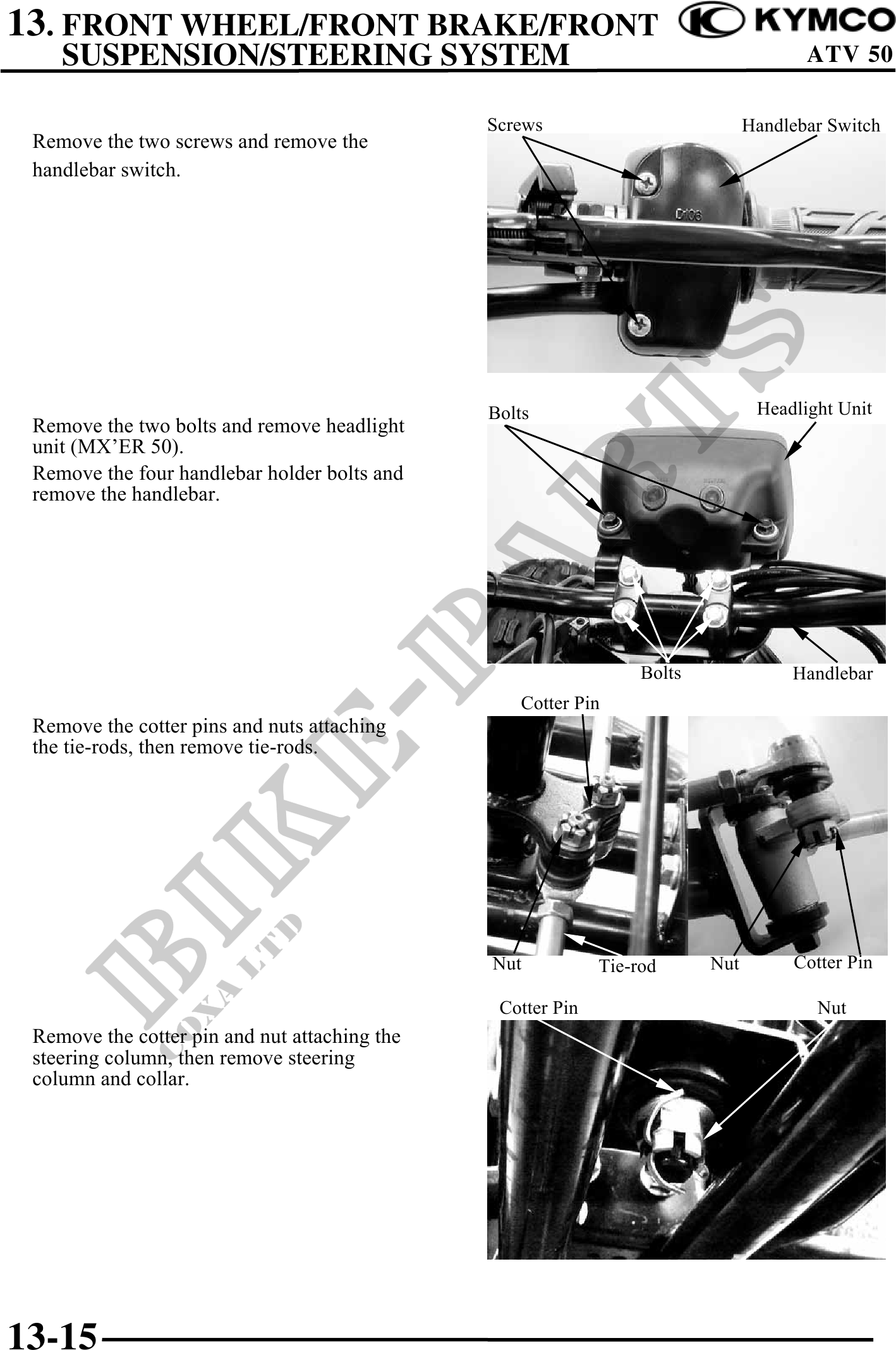

13. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM ATV 50
Screws Handlebar Switch
Remove the two screws and remove the
handlebar switch.
Bolts Headlight Unit
Remove the two bolts and remove headlight
unit (MX'ER 50).
Remove the four handlebar holder bolts and
remove the handlebar.
Bolts Handlebar
Cotter Pin
Remove the cotter pins and nuts attaching
the tie-rods, then remove tie-rods.
Nut Tie-rod Nut Cotter Pin
Cotter Pin Nut
Remove the cotter pin and nut attaching the
steering column, then remove steering
column and collar.
13-15
