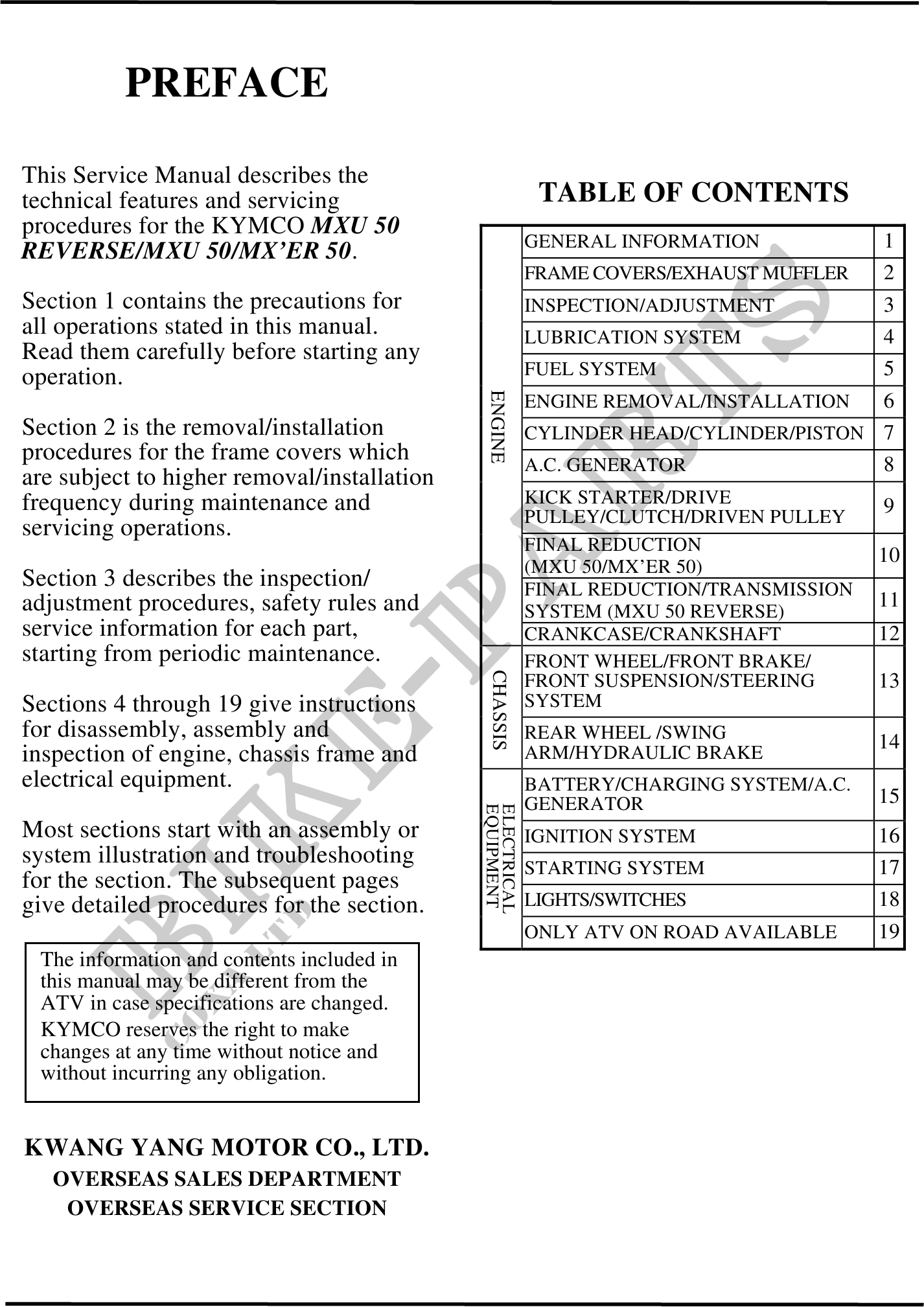

PREFACE
This Service Manual describes the
technical features and servicing TABLE OF CONTENTS
procedures for the KYMCO MXU 50
REVERSE/MXU 50/MX'ER 50. GENERAL INFORMATION 1
FRAME COVERS/EXHAUST MUFFLER 2
Section 1 contains the precautions for INSPECTION/ADJUSTMENT 3
all operations stated in this manual. LUBRICATION SYSTEM 4
Read them carefully before starting any
operation. FUEL SYSTEM 5
ENGINE
ENGINE REMOVAL/INSTALLATION 6
Section 2 is the removal/installation CYLINDER HEAD/CYLINDER/PISTON 7
procedures for the frame covers which A.C. GENERATOR 8
are subject to higher removal/installation
frequency during maintenance and KICK STARTER/DRIVE 9
PULLEY/CLUTCH/DRIVEN PULLEY
servicing operations.
FINAL REDUCTION
10
(MXU 50/MX'ER 50)
Section 3 describes the inspection/ FINAL REDUCTION/TRANSMISSION
adjustment procedures, safety rules and 11
SYSTEM (MXU 50 REVERSE)
service information for each part, CRANKCASE/CRANKSHAFT 12
starting from periodic maintenance. FRONT WHEEL/FRONT BRAKE/
CHASSIS
FRONT SUSPENSION/STEERING 13
Sections 4 through 19 give instructions SYSTEM
for disassembly, assembly and REAR WHEEL /SWING 14
inspection of engine, chassis frame and ARM/HYDRAULIC BRAKE
electrical equipment. BATTERY/CHARGING SYSTEM/A.C.
GENERATOR 15
EQUIPMENT
ELECTRICAL
Most sections start with an assembly or IGNITION SYSTEM 16
system illustration and troubleshooting STARTING SYSTEM 17
for the section. The subsequent pages
give detailed procedures for the section. LIGHTS/SWITCHES 18
ONLY ATV ON ROAD AVAILABLE 19
The information and contents included in
this manual may be different from the
ATV in case specifications are changed.
KYMCO reserves the right to make
changes at any time without notice and
without incurring any obligation.
KWANG YANG MOTOR CO., LTD.
OVERSEAS SALES DEPARTMENT
OVERSEAS SERVICE SECTION
