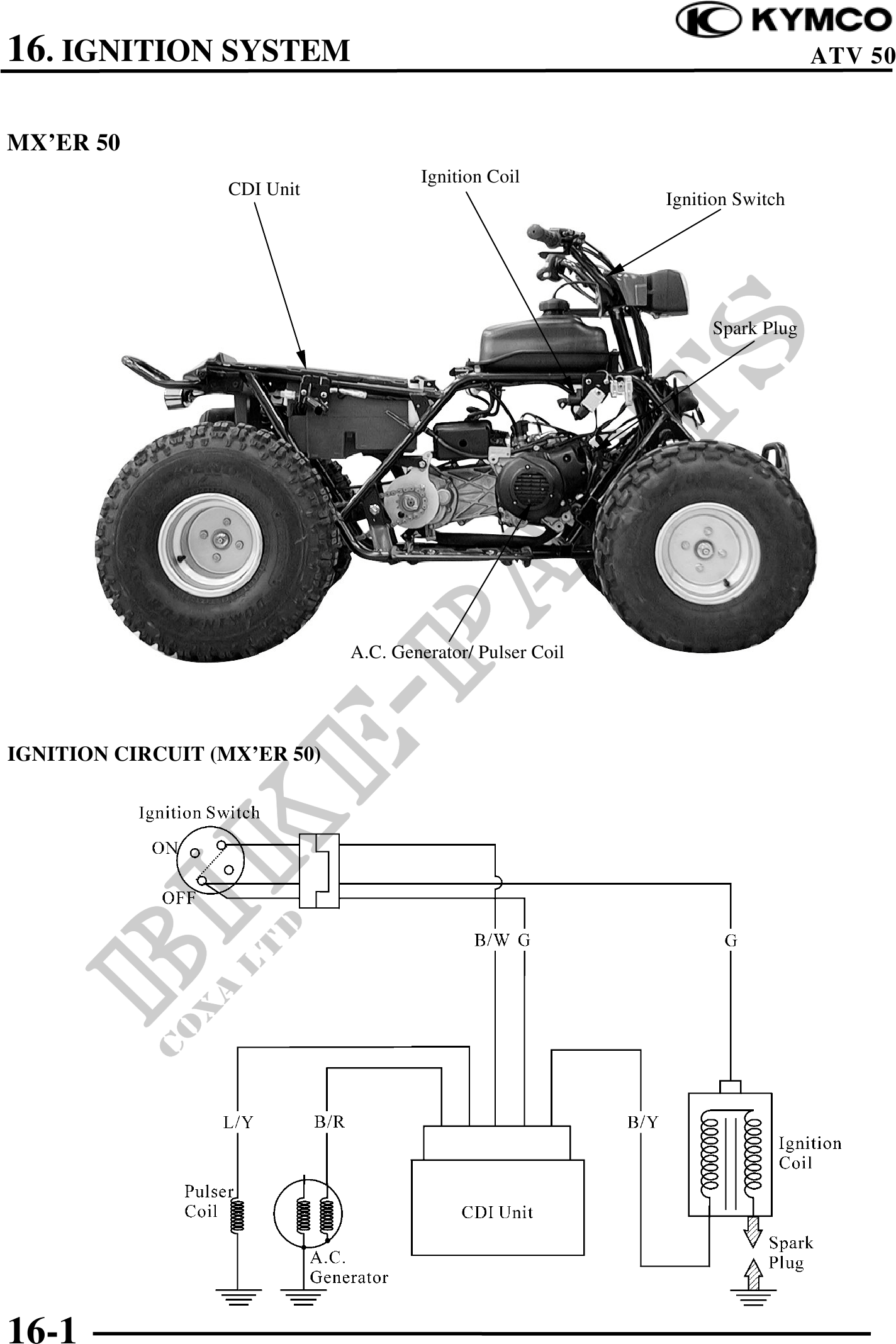

          16. IGNITION SYSTEM                                                           ATV 50


MX'ER 50
                                      Ignition Coil
                   CDI Unit
                        l                                   Ignition Switch




                                                                 Spark Plug




                              A.C. Generator/ Pulser Coil




IGNITION CIRCUIT (MX'ER 50)




16-1
