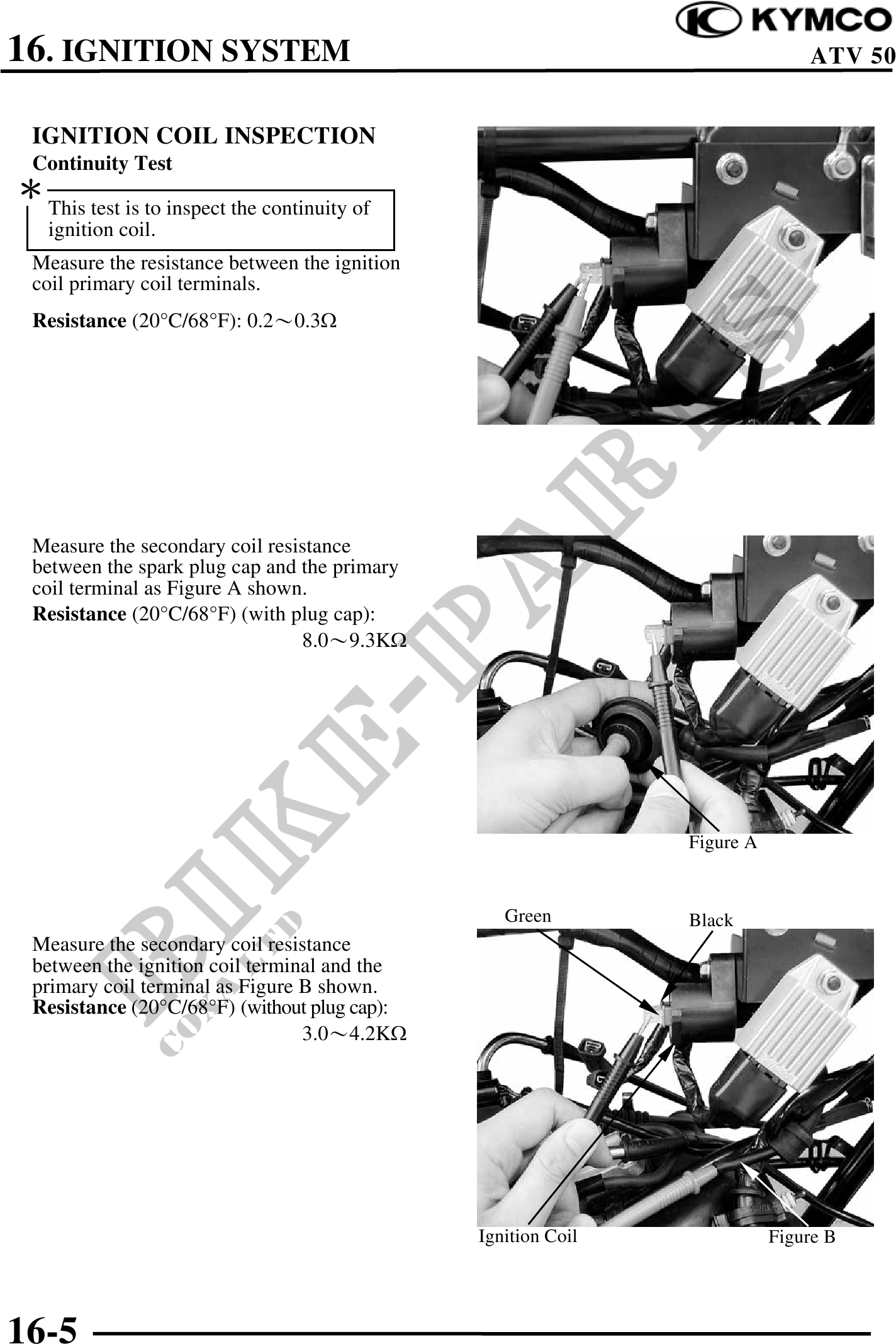

16. IGNITION SYSTEM ATV 50
IGNITION COIL INSPECTION
Continuity Test
This test is to inspect the continuity of
ignition coil.
Measure the resistance between the ignition
coil primary coil terminals.
Resistance (20°C/68°F): 0.20.3
Measure the secondary coil resistance
between the spark plug cap and the primary
coil terminal as Figure A shown.
Resistance (20°C/68°F) (with plug cap):
8.09.3K
Figure A
Green Black
Measure the secondary coil resistance
between the ignition coil terminal and the
primary coil terminal as Figure B shown.
Resistance (20°C/68°F) (without plug cap):
3.04.2K
Ignition Coil Figure B
16-5
