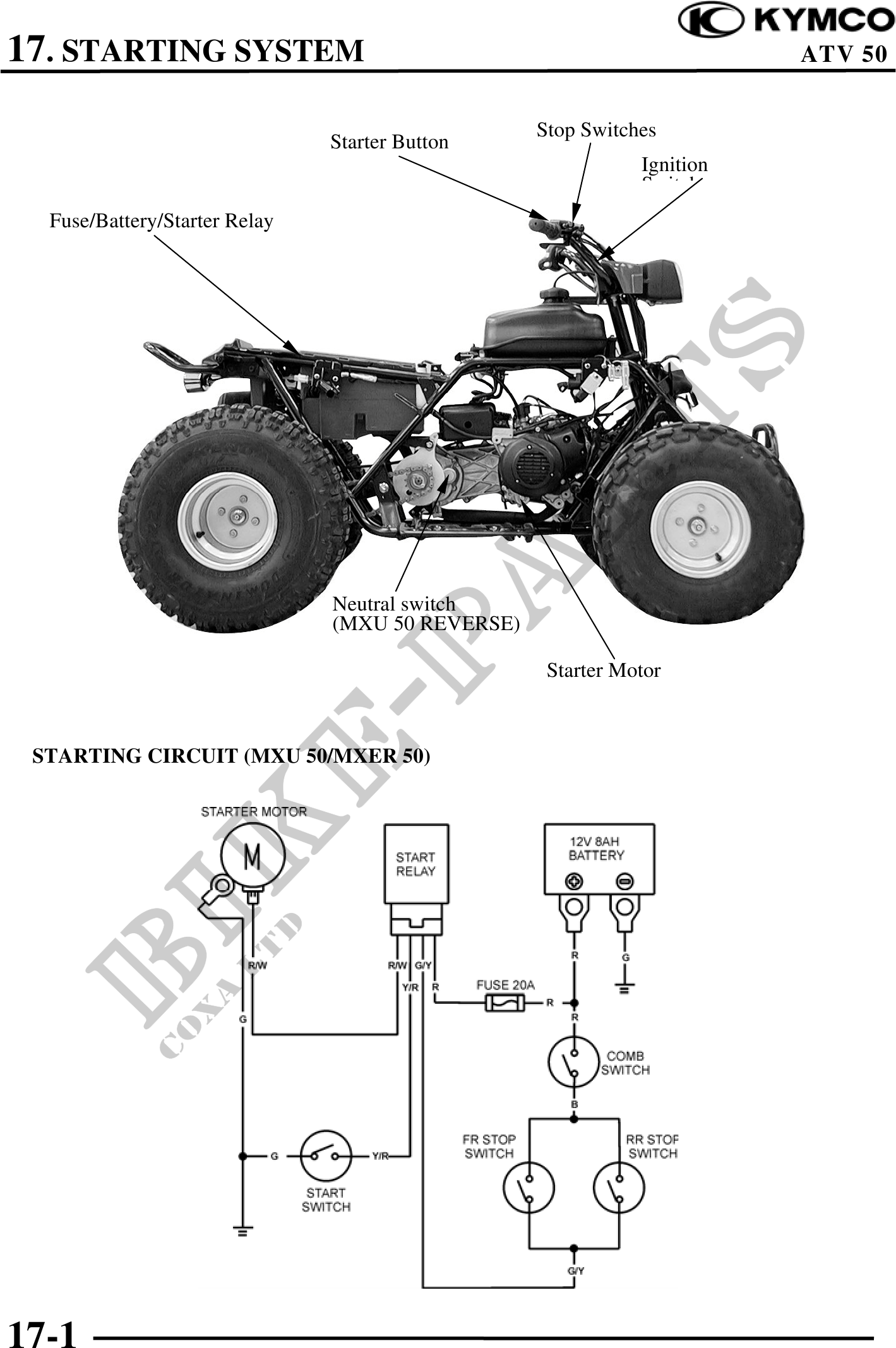

          17. STARTING SYSTEM                                                     ATV 50


                                                  Stop Switches
                               Starter Button
                                                             Ignition
                                                             S it h
  Fuse/Battery/Starter Relay




                               Neutral switch
                               (MXU 50 REVERSE)

                                                   Starter Motor



 STARTING CIRCUIT (MXU 50/MXER 50)




17-1
