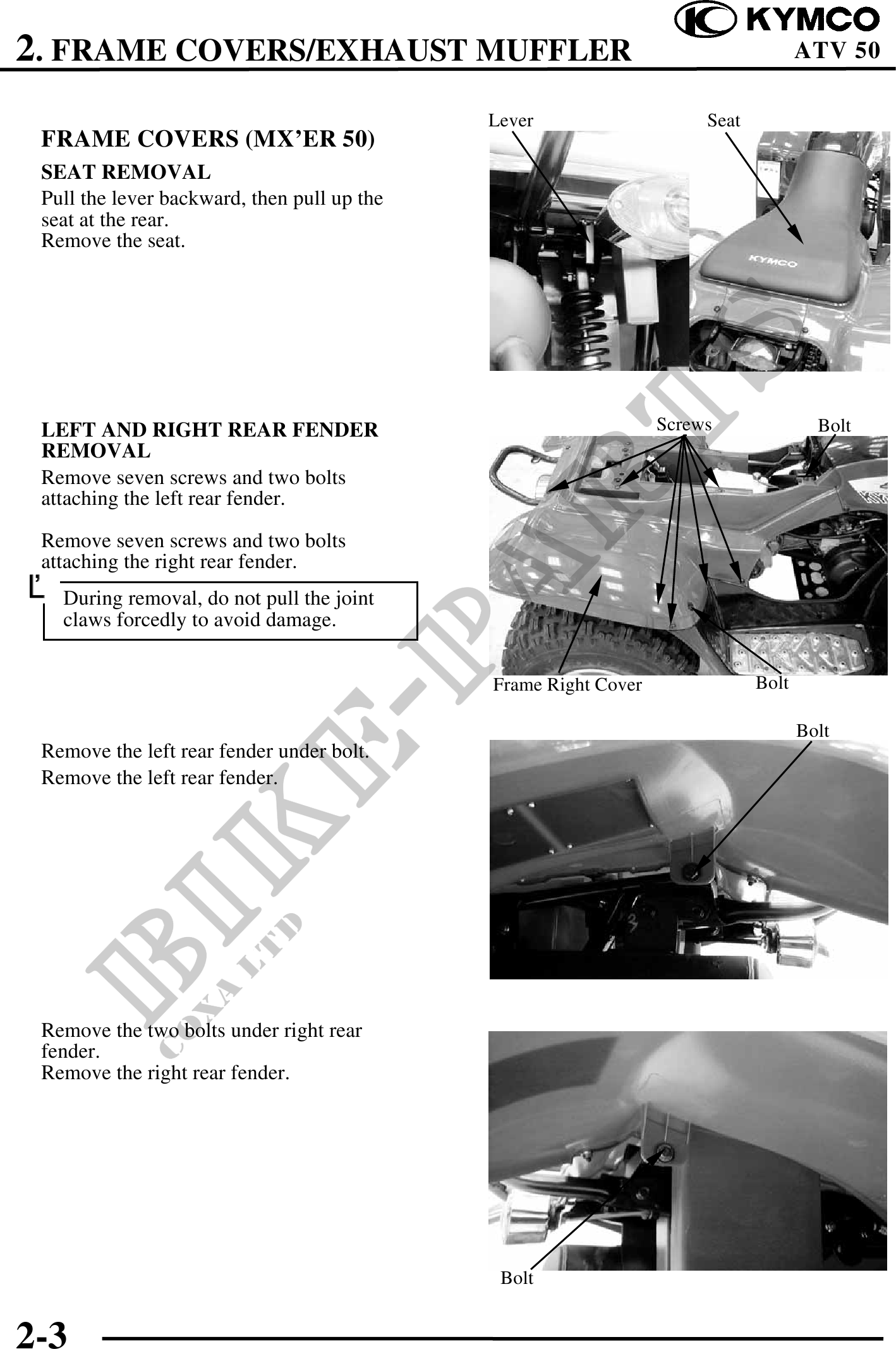

2. FRAME COVERS/EXHAUST MUFFLER ATV 50
Lever Seat
FRAME COVERS (MX'ER 50)
SEAT REMOVAL
Pull the lever backward, then pull up the
seat at the rear.
Remove the seat.
LEFT AND RIGHT REAR FENDER Screws Bolt
REMOVAL
Remove seven screws and two bolts
attaching the left rear fender.
Remove seven screws and two bolts
attaching the right rear fender.
During removal, do not pull the joint
claws forcedly to avoid damage.
Frame Right Cover Bolt
Bolt
Remove the left rear fender under bolt.
Remove the left rear fender.
Remove the two bolts under right rear
fender.
Remove the right rear fender.
Bolt
2-3
