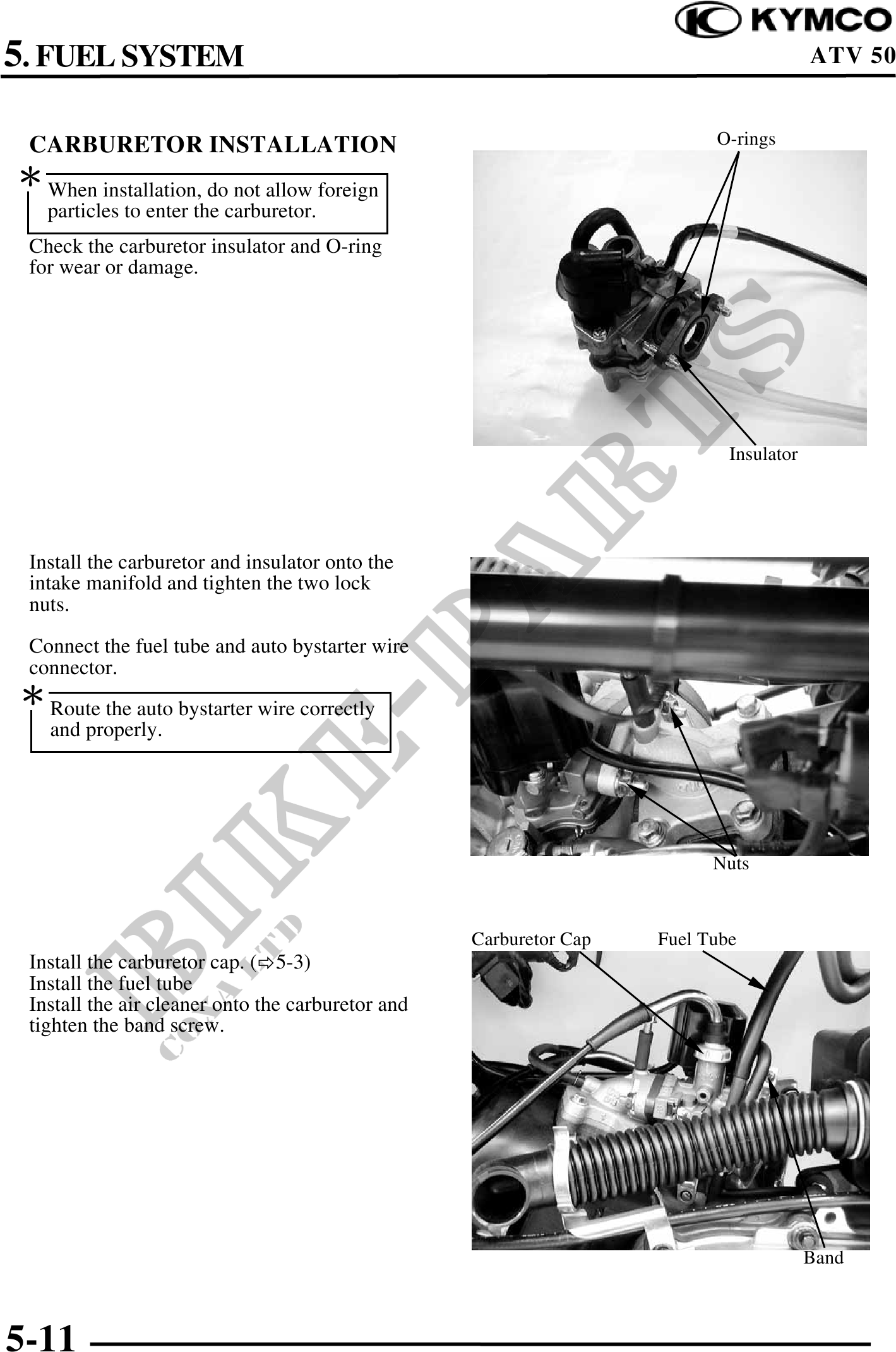

5. FUEL SYSTEM ATV 50
CARBURETOR INSTALLATION O-rings
When installation, do not allow foreign
particles to enter the carburetor.
Check the carburetor insulator and O-ring
for wear or damage.
Insulator
Install the carburetor and insulator onto the
intake manifold and tighten the two lock
nuts.
Connect the fuel tube and auto bystarter wire
connector.
Route the auto bystarter wire correctly
and properly.
Nuts
Carburetor Cap Fuel Tube
Install the carburetor cap. ( 5-3)
Install the fuel tube
Install the air cleaner onto the carburetor and
tighten the band screw.
Band
5-11
