          1. GENERAL INFORMATION                                                                                                                                                       MYROAD 700i

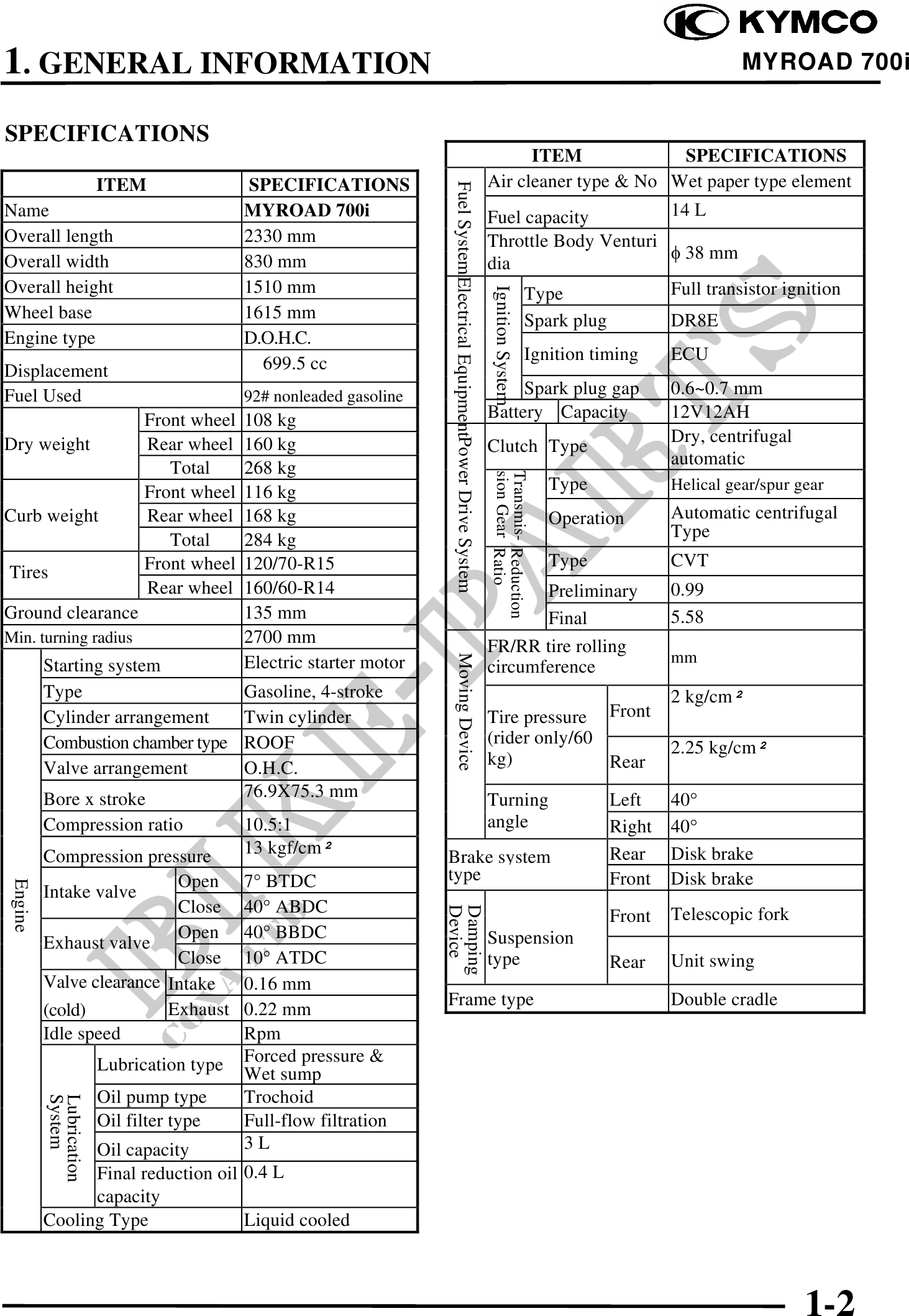

SPECIFICATIONS
                                                                                                                                 ITEM             SPECIFICATIONS
                        ITEM                 SPECIFICATIONS                                                                Air cleaner type & No Wet paper type element




                                                                      Fuel System Electrical EquipmentPower Drive System
Name                                        MYROAD 700i                                                                    Fuel capacity         14 L
Overall length                              2330 mm                                                                        Throttle Body Venturi
Overall width                               830 mm                                                                                                38 mm
                                                                                                                           dia
Overall height                              1510 mm                                                                                              Full transistor ignition




                                                                                                                            Ignition System
                                                                                                                                Type
Wheel base                                  1615 mm                                                                                           Spark plug           DR8E
Engine type                                 D.O.H.C.
                                              699.5 cc                                                                                        Ignition timing      ECU
Displacement
Fuel Used                                   92# nonleaded gasoline                                                              Spark plug gap                     0.6~0.7 mm
                              Front wheel   108 kg                                                                         Battery Capacity                        12V12AH
Dry weight                    Rear wheel    160 kg                                                                                                                 Dry, centrifugal
                                                                                                                           Clutch Type
                                                                                                                                                                   automatic
                                 Total      268 kg


                                                                                                                           sion Gear Ratio
                                                                                                                           Transmis- Reduction
                              Front wheel   116 kg                                                                                               Type              Helical gear/spur gear
Curb weight                   Rear wheel    168 kg                                                                                               Operation         Automatic centrifugal
                                 Total      284 kg                                                                                                                 Type
                              Front wheel   120/70-R15                                                                                           Type              CVT
Tires
                              Rear wheel    160/60-R14                                                                            Preliminary                      0.99
Ground clearance                            135 mm                                                                                Final                            5.58
Min. turning radius                         2700 mm                                                                        FR/RR tire rolling
                                                                                                                                                                   mm
                                                                         Moving Device




          Starting system                   Electric starter motor                                                         circumference
          Type                              Gasoline, 4-stroke                                                                                                     2 kg/cm
          Cylinder arrangement              Twin cylinder                                                                  Tire pressure Front
          Combustion chamber type           ROOF                                                                           (rider only/60
                                                                                                                                                                   2.25 kg/cm
                                                                                                                           kg)            Rear
          Valve arrangement                 O.H.C.
          Bore x stroke                     76.9X75.3 mm                                                                   Turning                         Left  40°
          Compression ratio                 10.5:1                                                                         angle                           Right 40°
          Compression pressure              13 kgf/cm                Brake system                                                                          Rear Disk brake
                           Open             7° BTDC                  type                                                                                  Front Disk brake
 Engine




          Intake valve
                           Close            40° ABDC
                                                                     Device
                                                                     Damping




                                                                                                                                                           Front   Telescopic fork
                           Open             40° BBDC                                                                       Suspension
          Exhaust valve
                           Close            10° ATDC                                                                       type                            Rear    Unit swing
          Valve clearance Intake            0.16 mm
                          Exhaust           0.22 mm                  Frame type                                                                                    Double cradle
          (cold)
          Idle speed                        Rpm
                        Lubrication type    Forced pressure &
                                            Wet sump
                        Oil pump type       Trochoid
          System
          Lubrication




                        Oil filter type     Full-flow filtration
                Oil capacity                3L
                Final reduction oil 0.4 L
                capacity
          Cooling Type              Liquid cooled



                                                                                                                                                                                      1-2
