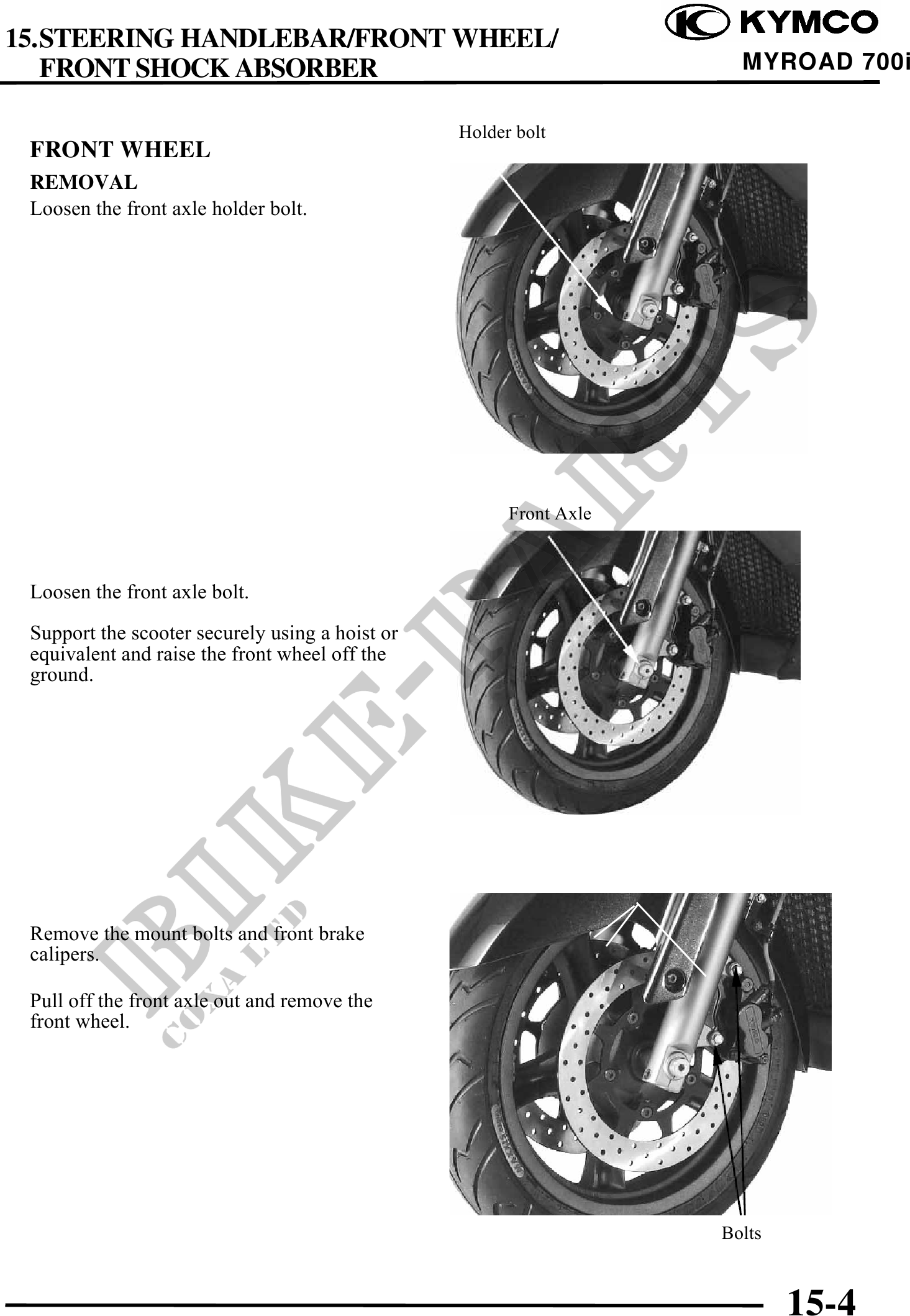

          15. STEERING HANDLEBAR/FRONT WHEEL/
    FRONT SHOCK ABSORBER                                              MYROAD 700i

                                                 Holder bolt
 FRONT WHEEL
 REMOVAL
 Loosen the front axle holder bolt.




                                                       Front Axle



 Loosen the front axle bolt.

 Support the scooter securely using a hoist or
 equivalent and raise the front wheel off the
 ground.




 Remove the mount bolts and front brake
 calipers.

 Pull off the front axle out and remove the
 front wheel.




                                                                    Bolts



                                                                            15-4
