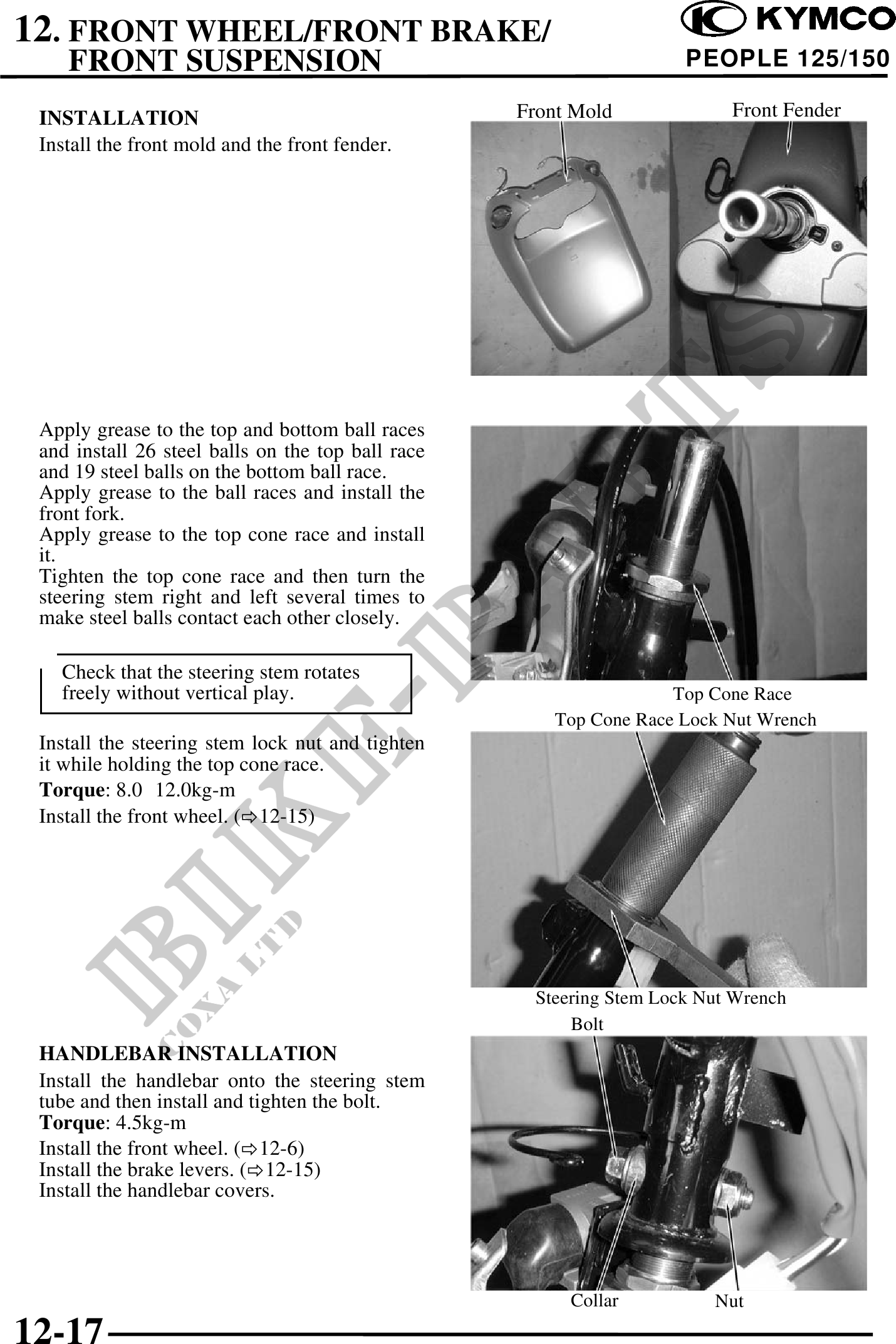

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION PEOPLE 125/150
INSTALLATION Front Mold Front Fender
Install the front mold and the front fender.
Apply grease to the top and bottom ball races
and install 26 steel balls on the top ball race
and 19 steel balls on the bottom ball race.
Apply grease to the ball races and install the
front fork.
Apply grease to the top cone race and install
it.
Tighten the top cone race and then turn the
steering stem right and left several times to
make steel balls contact each other closely.
Check that the steering stem rotates
freely without vertical play. Top Cone Race
Top Cone Race Lock Nut Wrench
Install the steering stem lock nut and tighten
it while holding the top cone race.
Torque: 8.0 12.0kg-m
Install the front wheel. ( 12-15)
Steering Stem Lock Nut Wrench
Bolt
HANDLEBAR INSTALLATION
Install the handlebar onto the steering stem
tube and then install and tighten the bolt.
Torque: 4.5kg-m
Install the front wheel. ( 12-6)
Install the brake levers. ( 12-15)
Install the handlebar covers.
Collar Nut
12-17
