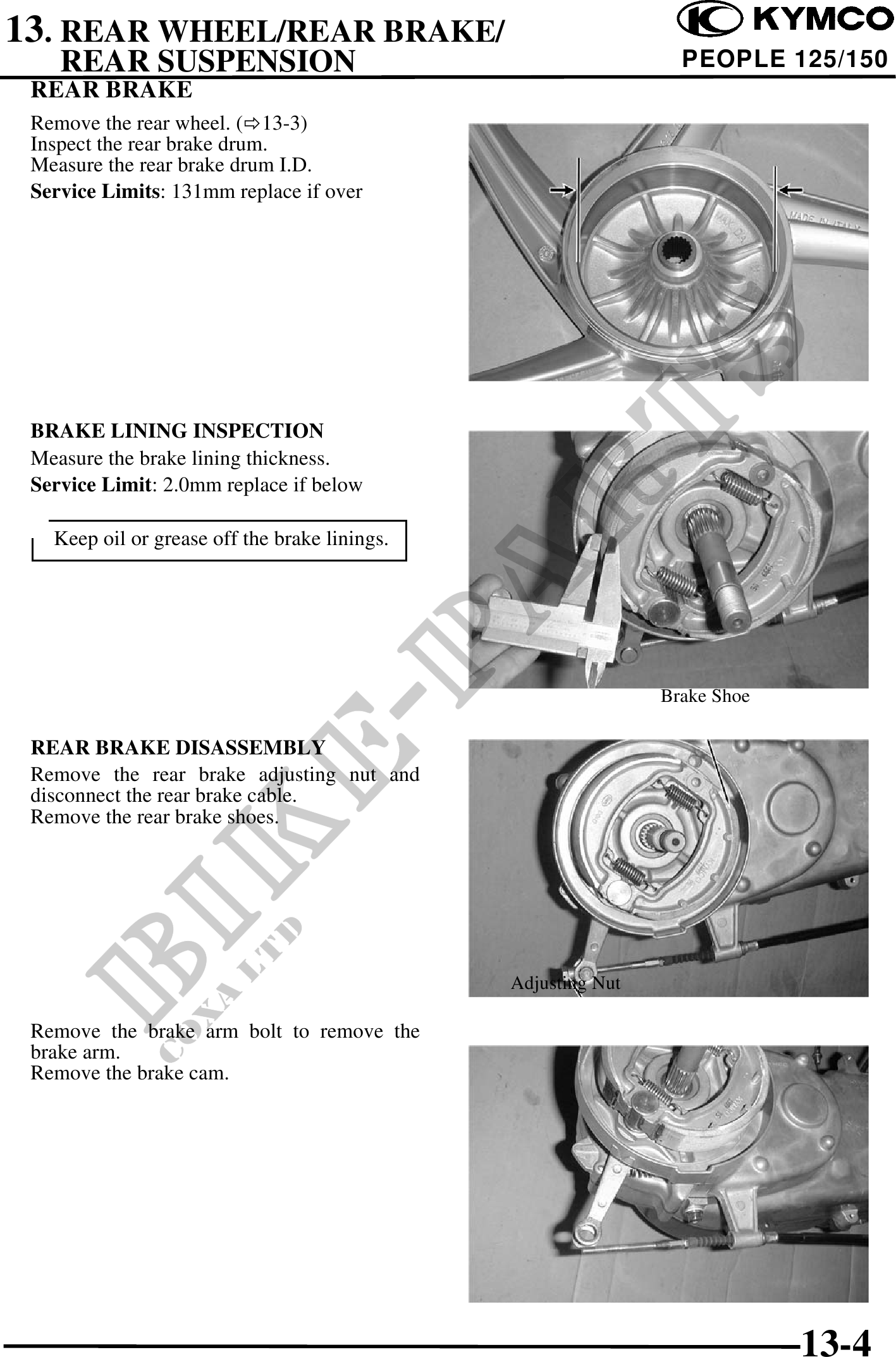

13. REAR WHEEL/REAR BRAKE/
REAR SUSPENSION PEOPLE 125/150
REAR BRAKE
Remove the rear wheel. ( 13-3)
Inspect the rear brake drum.
Measure the rear brake drum I.D.
Service Limits: 131mm replace if over
BRAKE LINING INSPECTION
Measure the brake lining thickness.
Service Limit: 2.0mm replace if below
Keep oil or grease off the brake linings.
Brake Shoe
REAR BRAKE DISASSEMBLY
Remove the rear brake adjusting nut and
disconnect the rear brake cable.
Remove the rear brake shoes.
Adjusting Nut
Remove the brake arm bolt to remove the
brake arm.
Remove the brake cam.
13-4
