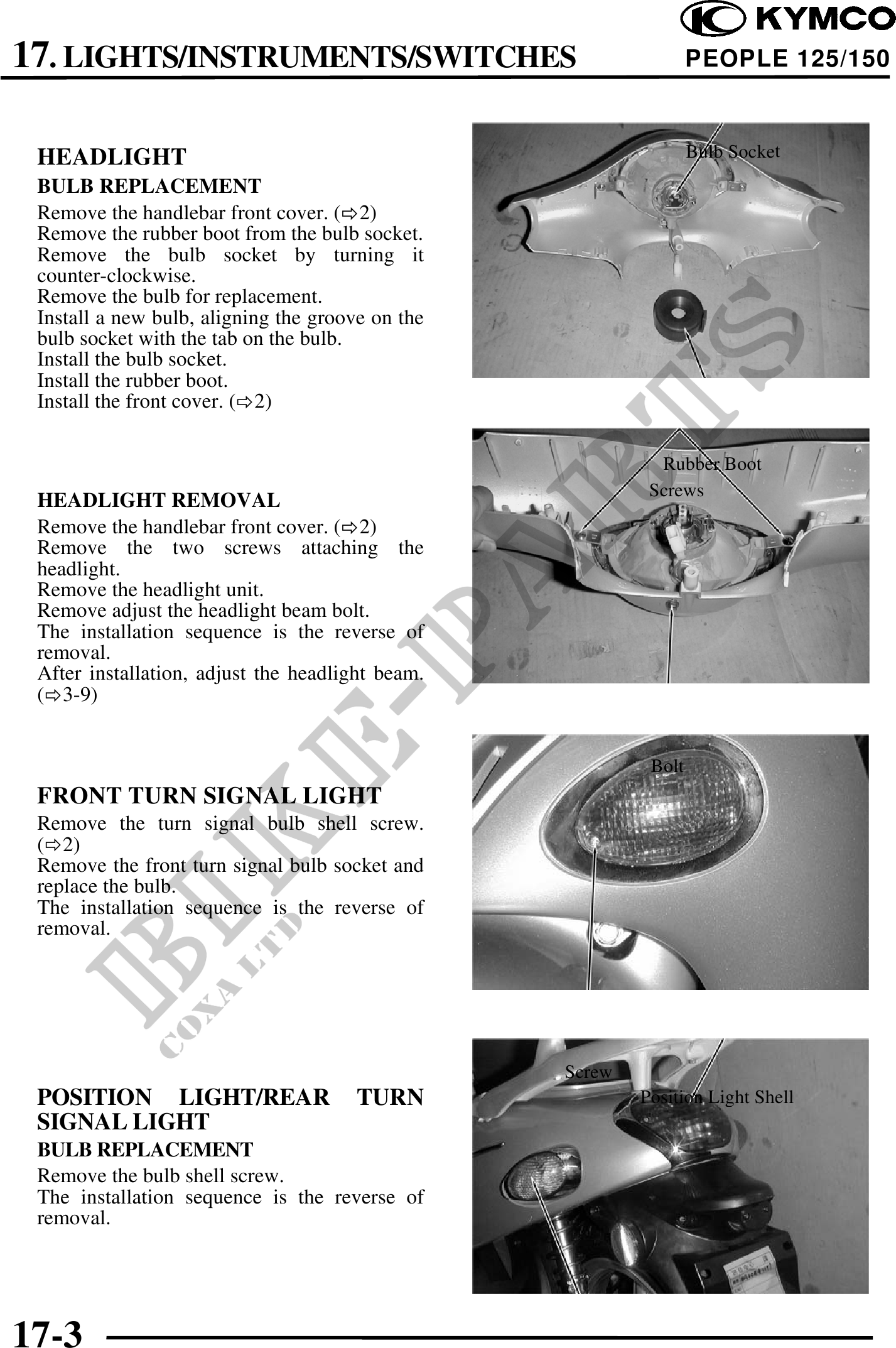

          17. LIGHTS/INSTRUMENTS/SWITCHES                                   PEOPLE 125/150



 HEADLIGHT                                                        Bulb Socket
 BULB REPLACEMENT
 Remove the handlebar front cover. ( 2)
 Remove the rubber boot from the bulb socket.
 Remove the bulb socket by turning it
 counter-clockwise.
 Remove the bulb for replacement.
 Install a new bulb, aligning the groove on the
 bulb socket with the tab on the bulb.
 Install the bulb socket.
 Install the rubber boot.
 Install the front cover. ( 2)

                                                            Rubber Boot
                                                           Screws
 HEADLIGHT REMOVAL
 Remove the handlebar front cover. ( 2)
 Remove the two screws attaching the
 headlight.
 Remove the headlight unit.
 Remove adjust the headlight beam bolt.
 The installation sequence is the reverse of
 removal.
 After installation, adjust the headlight beam.
 ( 3-9)


                                                           Bolt
 FRONT TURN SIGNAL LIGHT
 Remove the turn signal bulb shell screw.
 ( 2)
 Remove the front turn signal bulb socket and
 replace the bulb.
 The installation sequence is the reverse of
 removal.




                                                  Screw
 POSITION LIGHT/REAR                   TURN               Position Light Shell
 SIGNAL LIGHT
 BULB REPLACEMENT
 Remove the bulb shell screw.
 The installation sequence is the reverse of
 removal.
