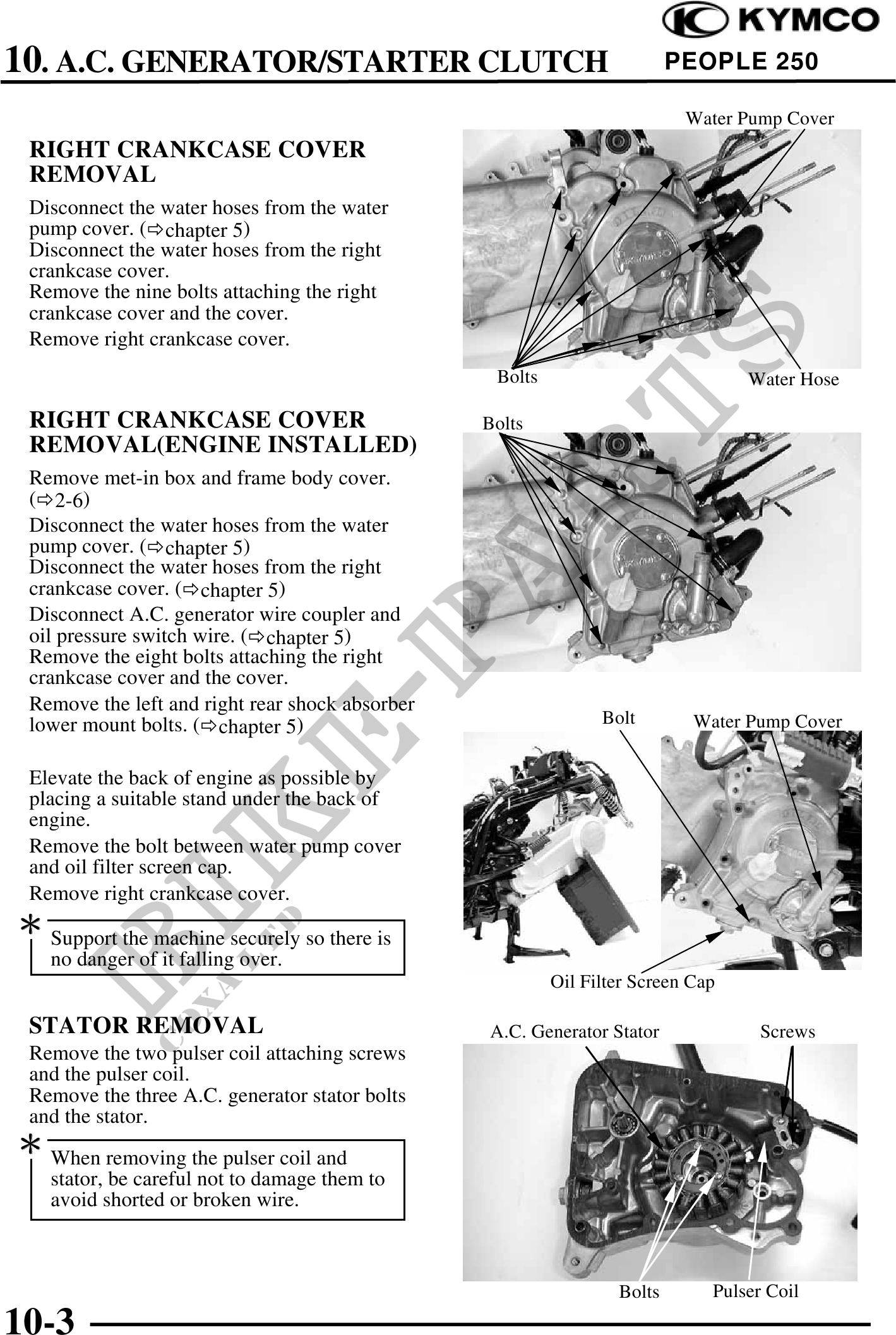

          10. A.C. GENERATOR/STARTER CLUTCH                                         PEOPLE 250

                                                                           Water Pump Cover
 RIGHT CRANKCASE COVER
 REMOVAL
 Disconnect the water hoses from the water
 pump cover. ( chapter 5)
 Disconnect the water hoses from the right
 crankcase cover.
 Remove the nine bolts attaching the right
 crankcase cover and the cover.
 Remove right crankcase cover.
                                                  Bolts                           Water Hose

 RIGHT CRANKCASE COVER                           Bolts
 REMOVAL(ENGINE INSTALLED)
 Remove met-in box and frame body cover.
 ( 2-6)
 Disconnect the water hoses from the water
 pump cover. ( chapter 5)
 Disconnect the water hoses from the right
 crankcase cover. ( chapter 5)
 Disconnect A.C. generator wire coupler and
 oil pressure switch wire. ( chapter 5)
 Remove the eight bolts attaching the right
 crankcase cover and the cover.
 Remove the left and right rear shock absorber
 lower mount bolts. ( chapter 5)                                Bolt        Water Pump Cover

 Elevate the back of engine as possible by
 placing a suitable stand under the back of
 engine.
 Remove the bolt between water pump cover
 and oil filter screen cap.
 Remove right crankcase cover.
 Support the machine securely so there is
   no danger of it falling over.
                                                          Oil Filter Screen Cap

 STATOR REMOVAL                                  A.C. Generator Stator              Screws
 Remove the two pulser coil attaching screws
 and the pulser coil.
 Remove the three A.C. generator stator bolts
 and the stator.
 When removing the pulser coil and
   stator, be careful not to damage them to
   avoid shorted or broken wire.



                                                                  Bolts       Pulser Coil
10-3
